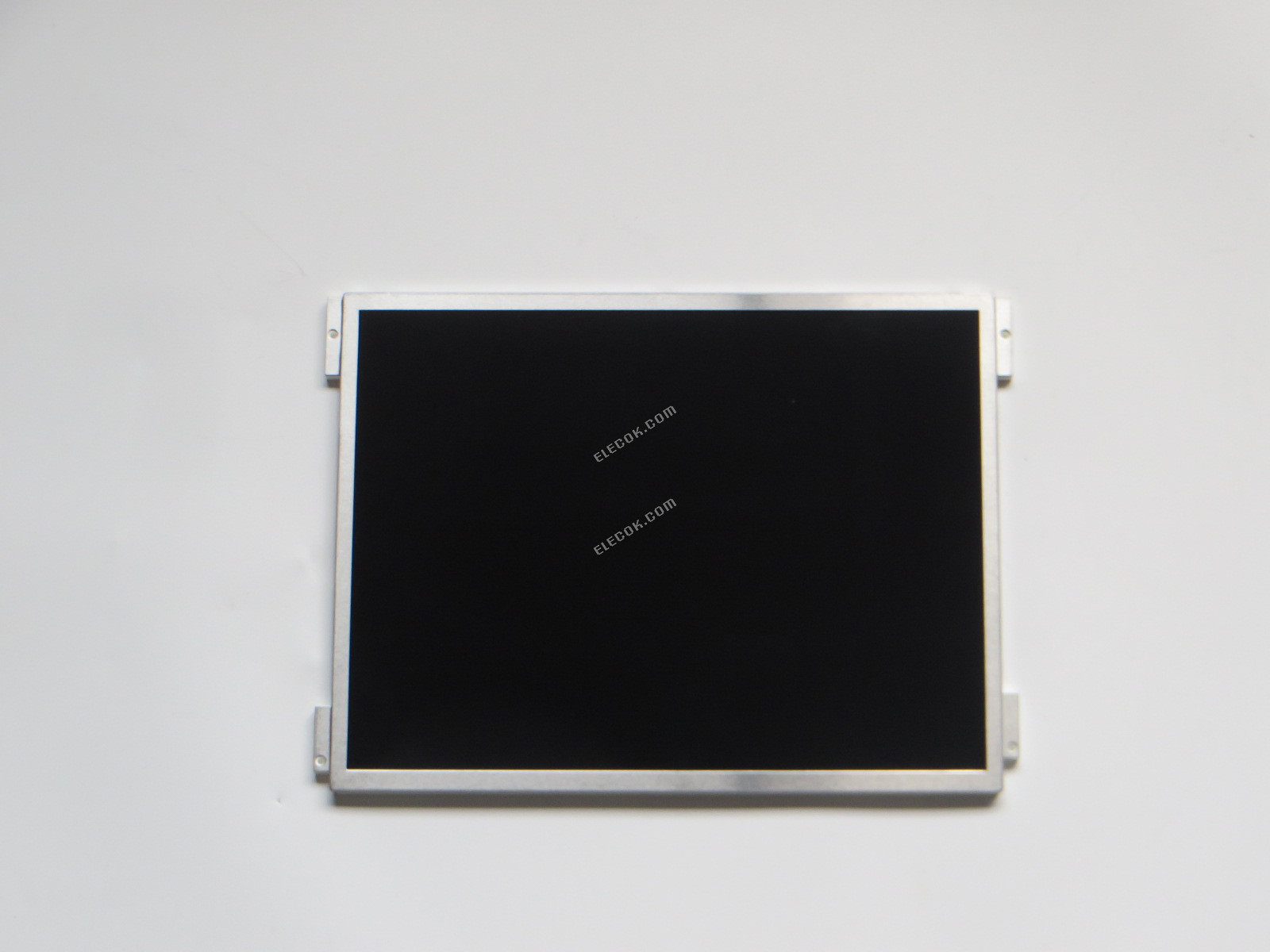

AUO 10.4" G104XVN01.0 a-Si TFT-LCD Panel, Inventory new
| Data Sheet | AUO 10.4" G104XVN01.0 a-Si TFT-LCD Panel, |
| Brand | AUO |
| Size | 10.4" |
| Panel Type | a-si TFT-LCD |
| Panel Model | G104XVN01.0 |
| Stocks 104 pcs | Stocks 104 pcs |
| Resolution | 1024 X 768 |
| Brightness | 470 cd/m2 (Typ.) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR>=10) |
| Contrast Ratio | 3000:1 (Typ.) (TM) |
| Display Colors | 262k/16.2m 60% (CIE1931) |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 210.4 X 157.8(mm) |
| Display Mode | psa， Normally Black ， Transmissive |
| Lamp Type | WLED 2 strings 80k Hours With LED Driver |
| Outline Size | 238.6 X 175.8 X 7(mm) |
| Surface | Matte ，Hard coating (3H) |
| Response Time | 20/10 (Typ.)(Tr/Td) |
| Frequency | 60Hz |
| Signal Interface | LVDS (1 ch 6/8-bit) 30 pins |
| Input Voltage | 3.3v (Typ.) |
| Environment | Operating Temp.: -30 ~ 80°c; Storage Temp.: -30 ~ 80°c; |
| Current State | In Production |
| Other Name | GL04XVN0L.0 G1O4XVNO1.O |
In the following cases, we will make a free reissue or full refund
Product cannot use in warranty period because of product quality problems
Product is damaged in transit
Product is not delivered in time because of our reason
Process of free reissue or full refund
Buyers send an email to our customer service to describe the problem, and to provide evidence (clear photos, screenshots, or video)
We will check the problem in 1 working days. For eligible cases, we will provide a free replacement or full refund within 1-2 business days
If a return is required, the return shipping fee will be paid by us
Buyers can apply for return or exchange within 90 days of receipt
AUO 10.4" G104XVN01.0 a-Si TFT-LCD Panel, Inventory new
| Gross Weight | 1.5 |
|---|
