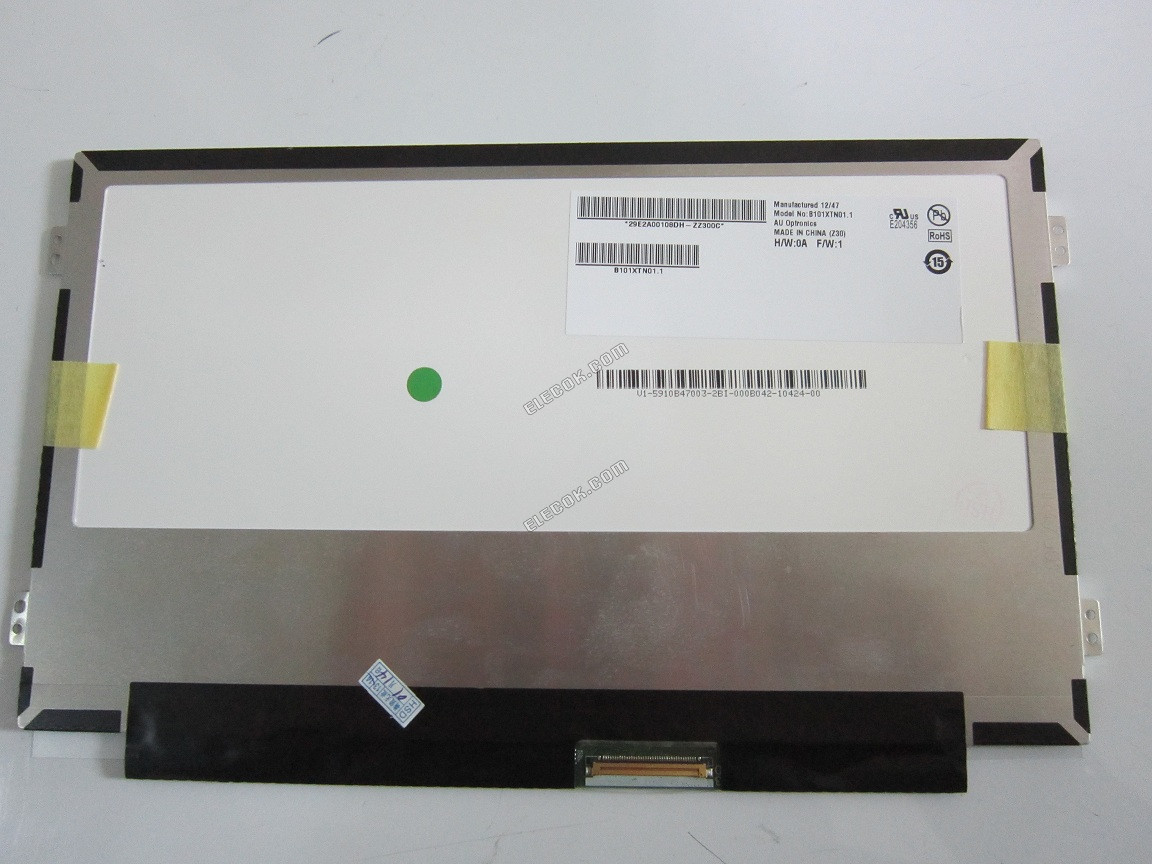

B101XTN01.1 10.1" a-Si TFT-LCD,Panel for AUO
| Data Sheet | B101XTN01.1 10.1" a-Si TFT-LCD,Panel for AUO |
| Panel Brand | AUO |
| Panel Model | B101XTN01.1 |
| Panel Type | a-Si TFT-LCD,Panel |
| Panel Size | 10.1 |
| Resolution | 1366(RGB)×768 (WXGA) |
| Display Mode | TN, Normally White, Transmissive |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 200 cd/m2 (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Colors | 262K (6-bit) |
| Response Time | 8 (Typ.)(Tr+Td) (ms) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR?10) (L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLED |
| Signal Interface | LVDS (1 ch, 6-bit) |
| Input Voltage | 3.3V (Typ.) |
| RoHS | RoHS Compliance |
| Application | Laptop |
| Other Name | BL0LXTN0L.L B1O1XTNO1.1 |
B101XTN01.1 10.1" a-Si TFT-LCD,Panel for AUO
| AUO B101XTN01.1 Basic Information | |
|---|---|
| Panel Brand | AUO |
| Panel Model | B101XTN01.1 |
| Panel Type | a-Si TFT-LCD,Panel |
| Application | Laptop |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| RoHS | RoHS Compliance |
| Specific Feature | Antiglare Sureface White LED Backlight With LED Driver Wide Aspect Ratio |
B101XTN01.1 10.1" a-Si TFT-LCD,Panel for AUO
| AUO B101XTN01.1 Mechanical Features | |
|---|---|
| Panel Size | 10.1" |
| Dot Resolution | 1366(RGB)×768 (WXGA) |
| Aspect Ratio | 15:9 (W:H) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Pitch | 0.1629×0.1629 mm (W×H) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 222.52×125.11 mm (W×H) |
| Outline Dimension | 243.0×146.5 mm (W×H) |
| Outline Depth | 3.3/3.6 (Typ./Max.) mm |
| Holes & Brackets | |
| Touch Panel | Without |
B101XTN01.1 10.1" a-Si TFT-LCD,Panel for AUO
| AUO B101XTN01.1 Optical Features | |
|---|---|
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 200 cd/m2 (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 45% |
| Response Time | 3/15 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR?10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | X:0.313 Y:0.329 |
| White Variation | 1.25/1.60 (Max.)(5/13 points) |
B101XTN01.1 10.1" a-Si TFT-LCD,Panel for AUO
| AUO B101XTN01.1 Electronics Feature | |
|---|---|
| Vertical Frequency | 60Hz |
| Reverse Scan | No |
| Total Power Consumption | 2.6W (Max.) |
B101XTN01.1 10.1" a-Si TFT-LCD,Panel for AUO
| AUO B101XTN01.1 Backlight System | |
|---|---|
| Lamp Position | Edge light type |
| Lamp Type | WLED |
| Lamp Life Time | 15K(Min.) (Hours) |
| Lamp Driver Board | |
| Lamp Driver Board | 6.0/12.0/21.0V (Min./Typ./Max.) |
| Interface Type | Included in signal interface |
B101XTN01.1 10.1" a-Si TFT-LCD,Panel for AUO
| AUO B101XTN01.1 Signal Interface | |
|---|---|
| Signal Category | LVDS |
| Signal Class | LVDS (2 ch, 10-bit) |
| Pin Configuration | LVDS-40P1C6B-100A |
| Input Voltage for Panel | 3.3V (Typ.) |
| Input Current for Panel | 606mA (Max.) |
| Panel Power Consumption | 0.8W (Max.) |
| Interface Type | Connector |
| Interface Brand | STM |
| Interface Model | MSAK24025P40 |
| Interface Pin Pitch | 0.5 mm |
| Interface Amount | 1 pcs |
| Interface Pins | 40 pins |
