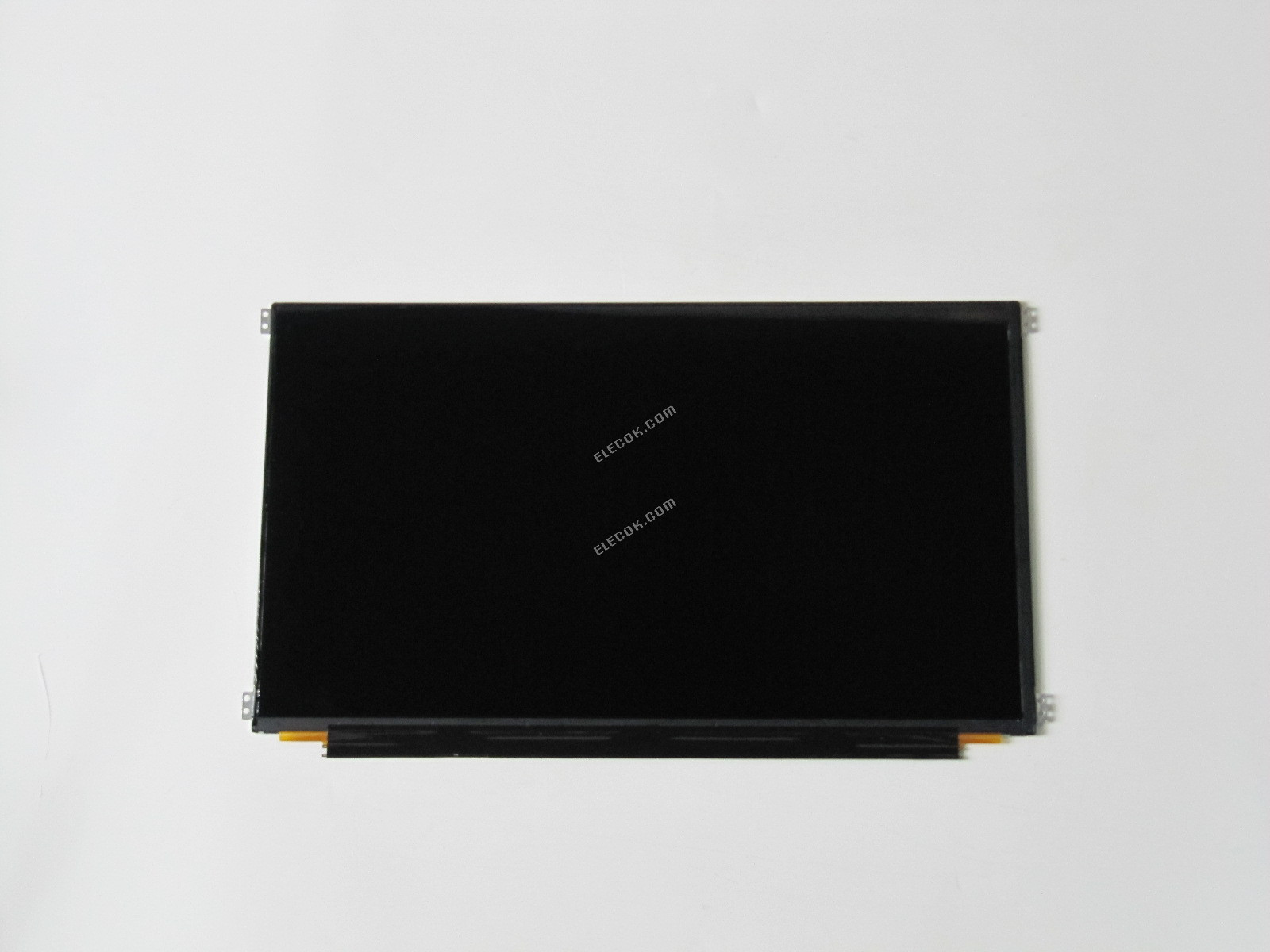

LQ156D1JW02 15.6" IGZO TFT-LCD , Panel for SHARP
LQ156D1JW02 15.6" IGZO TFT-LCD , Panel for SHARP
Panel Brand | SHARP |
Panel Model | LQ156D1JW02 |
Panel Type | IGZO TFT-LCD , Panel |
Panel Size | 15.6 |
Resolution | 3840(RGB)×2160 , UHD |
Display Mode | Normally Black, Transmissive |
Active Area | 345.6×194.4 mm |
Outline | 367.98×218.31×3.14 mm |
Shape Style | Slim (PCBA Flat, Depth ≤3.2mm) |
Surface | Antiglare (Haze 42%), Hard coating (3H) |
Brightness | 350 cd/m² (Typ.) |
Contrast Ratio | 1000:1 (Typ.) |
Display Colors | 16.7M (8-bit) , Adobe 100% |
Response Time | 25 (Typ.)(Tr+Td) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
Frequency | 60Hz |
Lamp Type | WLED Embedded (LED Driver) |
Signal Interface | eDP (4 Lanes) , 40 pins |
Input Voltage | 3.3V (Typ.) |
RoHS | RoHS Compliance |
Application | Laptop PC |
Other Name | LQL56DLJW02 1Q156D1JW02 LQ156D1JWO2 |
SHARP LQ156D1JW02 Basic Information
Panel Brand | SHARP |
---|
Panel Model | LQ156D1JW02 |
---|
Panel Type | IGZO TFT-LCD , Panel |
---|
Application | Laptop PC |
---|
Operating Temperature | 0 ~ 50 °C |
---|
Storage Temperature | -20 ~ 60 °C |
---|
RoHS | RoHS Compliance |
---|
Specific Feature | |
---|
Remarks | eDP1.3 for Dell Precision M4800 |
---|
SHARP LQ156D1JW02 Mechanical Features
Panel Size | 15.6" |
---|
Dot Resolution | 3840(RGB)×2160 (UHD) |
---|
Pixel Configuration | RGB Vertical Stripe |
---|
Pixel Density | 282 PPI |
---|
Aspect Ratio | 16:9 (H:V) |
---|
Form Factor | Flat Rectangle Display |
---|
Dot Pitch | 0.030×0.090 mm (H×V) |
---|
Pixel Pitch | 0.090×0.090 mm (H×V) |
---|
Surface | Antiglare (Haze 42%), Hard coating (3H) |
---|
Active Area | 345.6×194.4 mm (H×V) |
---|
Outline Dimension | 367.98×218.31 mm (H×V) |
---|
Outline Depth | 2.75/3.14 (Typ./Max.) mm |
---|
Shape Style | Slim (PCBA Flat, Depth ≤3.2mm) |
---|
Holes & Brackets | Face mounting holes (8-Φ2.4) on left, right slugs |
---|
Landscape or Portrait | Landscape type |
---|
Touch Panel | Without |
---|
SHARP LQ156D1JW02 Optical Features
Display Mode | Normally Black, Transmissive |
---|
Brightness | 350 cd/m² (Typ.) |
---|
Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
---|
Display Color | 16.7M (8-bit) |
---|
Color Gamut | 100% Adobe RGB |
---|
Response Time | 25 (Typ.)(Tr+Td) |
---|
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
---|
Viewing Direction | Symmetry |
---|
White color Chromaticity | Wx:0.313 Wy:0.329 |
---|
White Variation | 1.25/1.50 (Typ./Max.)(5 points) |
---|
SHARP LQ156D1JW02 Electronics Feature
Vertical Frequency | 60Hz |
---|
Reverse Scan | No |
---|
SHARP LQ156D1JW02 Backlight System
Lamp Position | Edge light type |
---|
Lamp Type | WLED |
---|
Lamp Life Time | 12K(Min.) (Hours) |
---|
Interface Type | Included in panel signal interface |
---|
Lamp Driver Board | Embedded (LED Driver) |
---|
Lamp Driver Board | 7.0/12.0/21.0V (Min./Typ./Max.) |
---|
Lamp Driver Board | 417/460mA (Typ./Max.) |
---|
Lamp Driver Board | 5.0/5.52W (Typ./Max.) |
---|
SHARP LQ156D1JW02 Signal Interface
Signal Category | eDP |
---|
Signal Class | eDP (4 Lanes) |
---|
Input Voltage for Panel | 3.3V (Typ.) |
---|
Input Current for Panel | 497/627mA (Typ./Max.) |
---|
Panel Power Consumption | 1.64/1.88W (Typ./Max.) |
---|
Interface Type | Connector |
---|
Interface Position | Right of board |
---|
Signal Interface | Configuration |
---|
| |
---|
