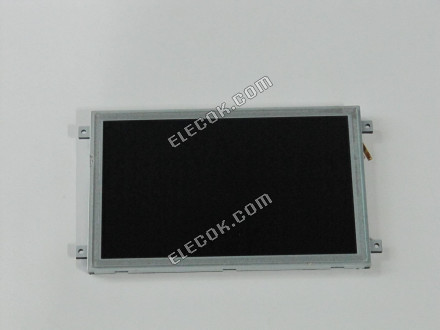

LT085AC18N00 8.5" LTPS TFT-LCD,Panel for Toshiba Mobile Display
| Data Sheet | LT085AC18N00 8.5" LTPS TFT-LCD,Panel for Toshiba |
| Panel Brand | Toshiba Mobile Display |
| Panel Model | LT085AC18N00 |
| Panel Type | LTPS TFT-LCD,Panel |
| Panel Size | 8.5 |
| Resolution | 800(RGB)×480 (WVGA) |
| Display Mode | TN, Normally White, Transmissive |
| Surface | |
| Brightness | |
| Contrast Ratio | 300 : 1 (Typ.) (Transmissive) |
| Display Colors | 262K (6-bit) |
| Response Time | 50/50 (Max.)(Tr/Td) (ms) |
| Viewing Angle | 55/55/60/35 (Typ.)(CR?10) (L/R/U/D) |
| Frequency | |
| Lamp Type | WLED |
| Signal Interface | CMOS (1 ch, 6-bit) |
| Input Voltage | 3.3V (Typ.) |
| RoHS | |
| Application | Industry Application |
| Other Name | LT085ACL8N00 1T085AC18N00 LTO85AC18NOO |
LT085AC18N00 8.5" LTPS TFT-LCD,Panel for Toshiba Mobile Display
| Toshiba Mobile Display LT085AC18N00 Basic Information | |
|---|---|
| Panel Brand | Toshiba Mobile Display |
| Panel Model | LT085AC18N00 |
| Panel Type | LTPS TFT-LCD,Panel |
| Application | Industrial Application |
| Operating Temperature | -10 ~ 70 °C |
| Storage Temperature | -20 ~ 80 °C |
| Specific Feature | White LED Backlight Wide Aspect Ratio |
LT085AC18N00 8.5" LTPS TFT-LCD,Panel for Toshiba Mobile Display
| Toshiba Mobile Display LT085AC18N00 Mechanical Features | |
|---|---|
| Panel Size | 8.5" |
| Dot Resolution | 800(RGB)×480 (WVGA) |
| Aspect Ratio | 15:9 (W:H) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Pitch | 0.231×0.231 mm (W×H) |
| Active Area | 184.8×110.88 mm (W×H) |
| Touch Panel | Without |
LT085AC18N00 8.5" LTPS TFT-LCD,Panel for Toshiba Mobile Display
| Toshiba Mobile Display LT085AC18N00 Optical Features | |
|---|---|
| Display Mode | TN, Normally White, Transmissive |
| Contrast Ratio | 300 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 50/50 (Max.)(Tr/Td) |
| Viewing Angle | 55/55/60/35 (Typ.)(CR?10) (L/R/U/D) |
LT085AC18N00 8.5" LTPS TFT-LCD,Panel for Toshiba Mobile Display
| Toshiba Mobile Display LT085AC18N00 Electronics Feature | |
|---|---|
| Reverse Scan | No |
LT085AC18N00 8.5" LTPS TFT-LCD,Panel for Toshiba Mobile Display
| Toshiba Mobile Display LT085AC18N00 Backlight System | |
|---|---|
| Lamp Position | Edge light type |
| Lamp Type | WLED |
| Lamp Driver Board | No |
| Interface Type | FPC |
LT085AC18N00 8.5" LTPS TFT-LCD,Panel for Toshiba Mobile Display
| Toshiba Mobile Display LT085AC18N00 Signal Interface | |
|---|---|
| Signal Category | Parallel RGB |
| Signal Class | CMOS (1 ch, 6-bit) |
| Input Voltage for Panel | 3.3V (Typ.) |
| Input Current for Panel | 160/250mA (Typ./Max.) |
| Voltage for Display Signals | 0?VIL?0.3VDD 0.7VDD?VIH?VDD |
| Interface Type | Connector |
| Interface Brand | HRS |
| Interface Model | FH12-40S-0.5SH (89) |
| Interface Pin Pitch | 0.5 mm |
| Interface Amount | 1 pcs |
| Interface Pins | 40 pins |
