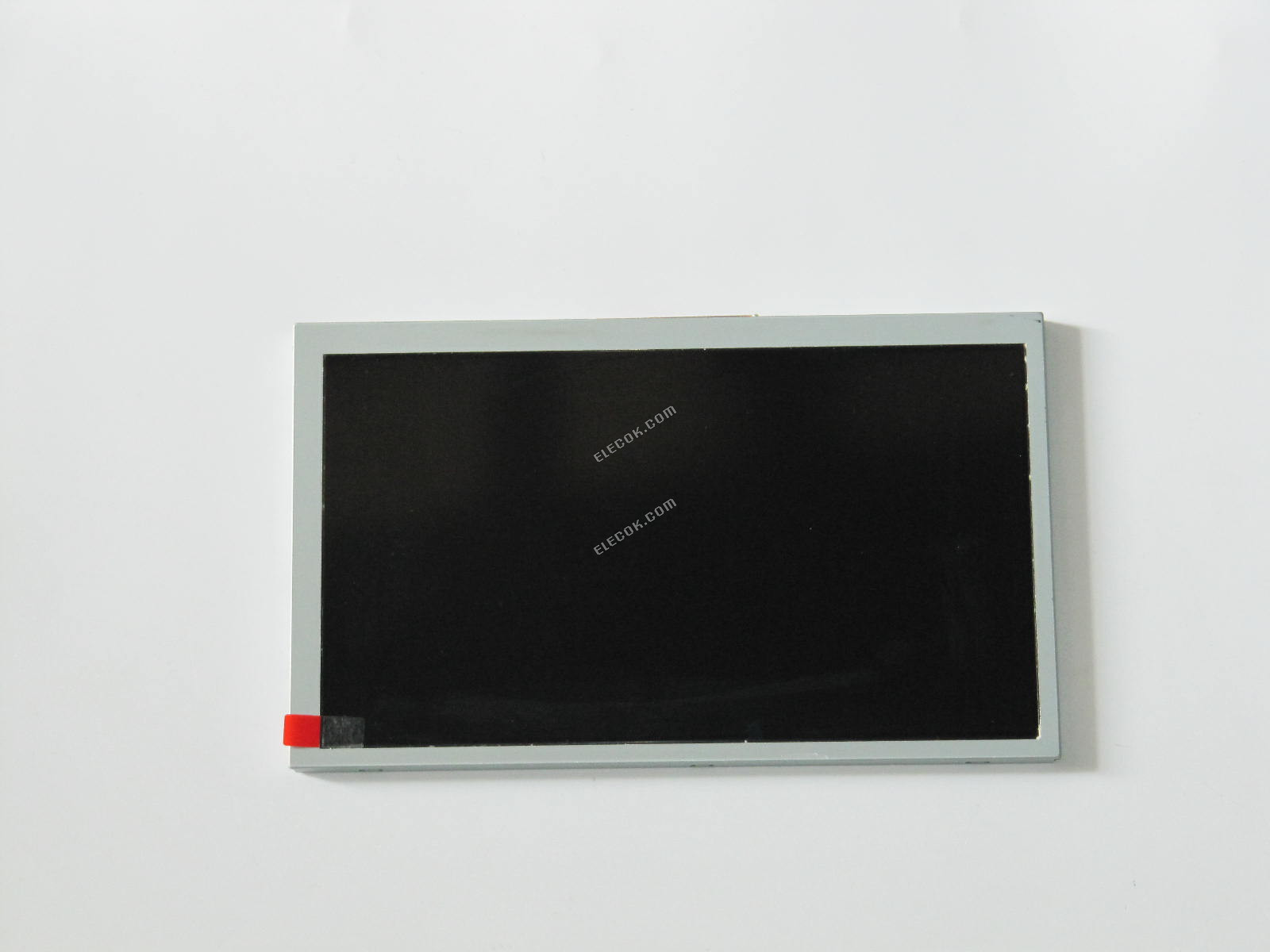

AT080TN64 8.0" a-Si TFT-LCD Panel for INNOLUX without touch screen

$32.98

AT080TN64 8.0" a-Si TFT-LCD Panel for INNOLUX without touch screen

Data Sheet AT080TN64 8.0" a-Si TFT-LCD Panel for INNOLUX
Panel BrandINNOLUX
Panel ModelAT080TN64
Panel Typea-Si TFT-LCDPanel
Panel Size8.0"
Resolution800(RGB)×480 (WVGA)
Display ModeTN, Normally White, Transmissive
SurfaceAntiglare
Brightness450 cd/m2 (Typ.)
Contrast Ratio500 : 1 (Typ.) (Transmissive)
Display Colors262K/16.2M (6-bit / 6-bit + Dithering)
Response Time10/15 (Typ.)(Tr/Td) (ms)
Viewing Angle70/70/50/70 (Typ.)(CR?10) (L/R/U/D)
Frequency60Hz
Lamp TypeWLED
Signal InterfaceParallel RGB (1 ch, 6/8-bit)
Input Voltage3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL)
Other NameATO8OTN64
