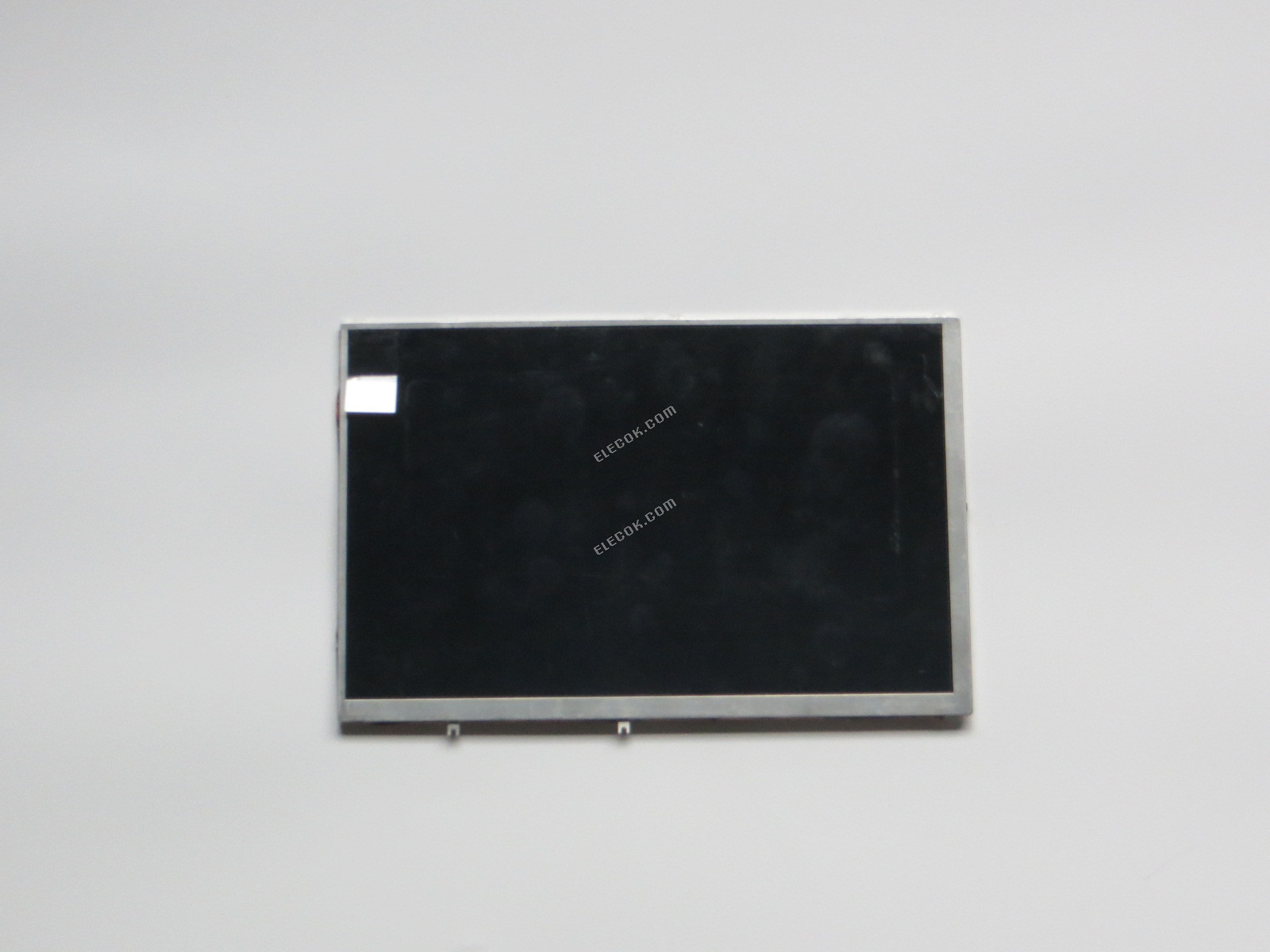

BP082WX1-100 8.2" a-Si TFT-LCD Panel for BOE
| Data Sheet | BP082WX1-100 8.2" a-Si TFT-LCD Panel for BOE |
| Panel Brand | BOE |
| Panel Model | BP082WX1-100 |
| Panel Type | a-Si TFT-LCDPanel |
| Panel Size | 8.2" |
| Resolution | 1280(RGB)×800 (WXGA) |
| Display Mode | ADS, Normally Black, Transmissive |
| Surface | Hard coating (3H), Antireflection |
| Brightness | 450 cd/m2 (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
| Display Colors | 16.7M (6-bit + Hi-FRC) |
| Response Time | 24 (Typ.)(Tr+Td) (ms) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR?10) (L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLED |
| Signal Interface | LVDS (1 ch, 8-bit) |
| Input Voltage | 3.3V (Typ.) |
| Other Name | BP082WXL-L00 BPO82WX1-1OO |
