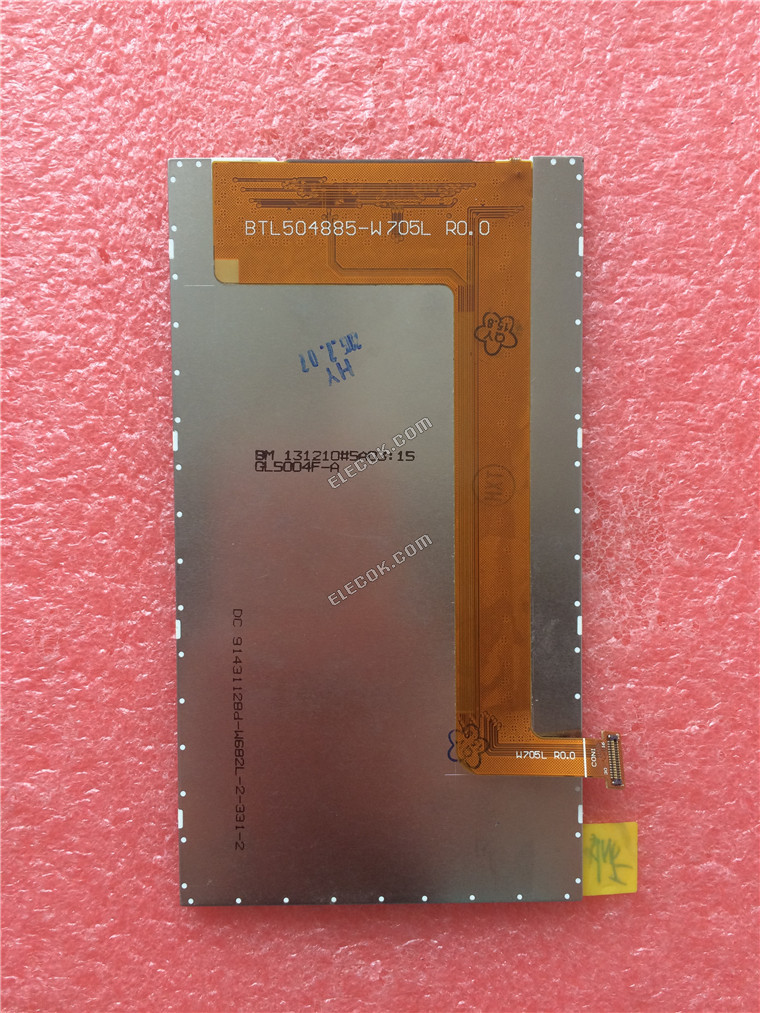

    Data Sheet BTL504885-W705L BOE 5.0" A-si TFT-LCD Panel
    Panel Brand BOE
    Panel Model BTL504885-W705L
    Panel Type a-Si TFT-LCD Panel
    Panel Size 5.0
    Resolution 480(RGB)×854 (FWVGA)
    Display Mode AFFS, Normally Black, Transmissive
    Surface Antiglare
    Brightness 400 cd/m2 (Typ.)
    Contrast Ratio 600 : 1 (Typ.) (Transmissive)
    Display Colors 16.7M (8-bit)
    Response Time 30 (Typ.)(Tr+Td) (ms)
    Viewing Angle 80/80/80/80 (Typ.)(CR?10) (L/R/U/D)
    Frequency 60Hz
    Lamp Type WLED
    Signal Interface MIPI (2 data lanes)
    Input Voltage 1.8/2.8V (Typ.)(IOVCC/VCC)
    RoHS RoHS Compliance
    Application Mobile Phone
    Other NameBT1504885-W7051
    BTL5O4885-W7O5L

    BTL504885-W705L 5.0" a-Si TFT-LCD Panel for BOE

    BOE BTL504885-W705L Basic Information
    Panel Brand BOE
    Panel Model BTL504885-W705L
    Panel Type a-Si TFT-LCD Panel
    Application Mobile Phone
    Operating Temperature -20 ~ 70 °C
    Storage Temperature -30 ~ 80 °C
    RoHS RoHS Compliance
    Specific Feature Antiglare Sureface Wide Viewing Angle White LED Backlight

    BTL504885-W705L 5.0" a-Si TFT-LCD Panel for BOE

    BOE BTL504885-W705L Mechanical Features
    Panel Size 5.0"
    Dot Resolution 480(RGB)×854 (FWVGA)
    Aspect Ratio 4:3 (W:H)
    Pixel Configuration RGB Vertical Stripe
    Pixel Pitch 0.12825×0.12825 mm (W×H)
    Surface Antiglare
    Active Area 61.56×109.53 mm (W×H)
    Outline Dimension 66.30×121.0 mm (W×H)
    Outline Depth 1.7 mm
    Touch Panel

    BTL504885-W705L 5.0" a-Si TFT-LCD Panel for BOE

    BOE BTL504885-W705L Optical Features
    Display Mode AFFS, Normally Black, Transmissive
    Brightness 400 cd/m2 (Typ.)
    Contrast Ratio 600 : 1 (Typ.) (Transmissive)
    Display Color 16.7M (8-bit)
    Response Time
    Viewing Angle 80/80/80/80 (Typ.)(CR?10) (L/R/U/D)
    Viewing Direction Symmetry
    White color Chromaticity X:0.300 Y:0.320
    White Variation 1.25 (Max.)(5 points)

    BTL504885-W705L 5.0" a-Si TFT-LCD Panel for BOE

    BOE BTL504885-W705L Electronics Feature
    Vertical Frequency 60Hz
    Reverse Scan No
    Driver IC Embedded OTM8018B (ORISE)

    BTL504885-W705L 5.0" a-Si TFT-LCD Panel for BOE

    BOE BTL504885-W705L Backlight System
    Lamp Position Edge light type
    Lamp Type WLED
    Lamp Amount 5S2P
    Lamp Shape 2 strings
    Lamp Voltage
    Lamp Current 20mA (Max.)
    Lamps Power Consumption 680mW (Max.)
    Lamp Driver Board Embedded (LED Driver)
    Interface Type Included in signal interface

    BTL504885-W705L 5.0" a-Si TFT-LCD Panel for BOE

    BOE BTL504885-W705L Signal Interface
    Signal Category
    Signal Class Parallel RGB (1 ch, 6-bit)
    Input Voltage for Panel 1.8/2.8V (Typ.)(IOVCC/VCC)
    Input Current for Panel 42mA (Typ.)
    Interface Type Connector
    Interface Brand Panasonic
    Interface Model AXE630124
    Interface Pin Pitch 0.4 mm
    Interface Amount 1 pcs
    Interface Pins 30 pins
