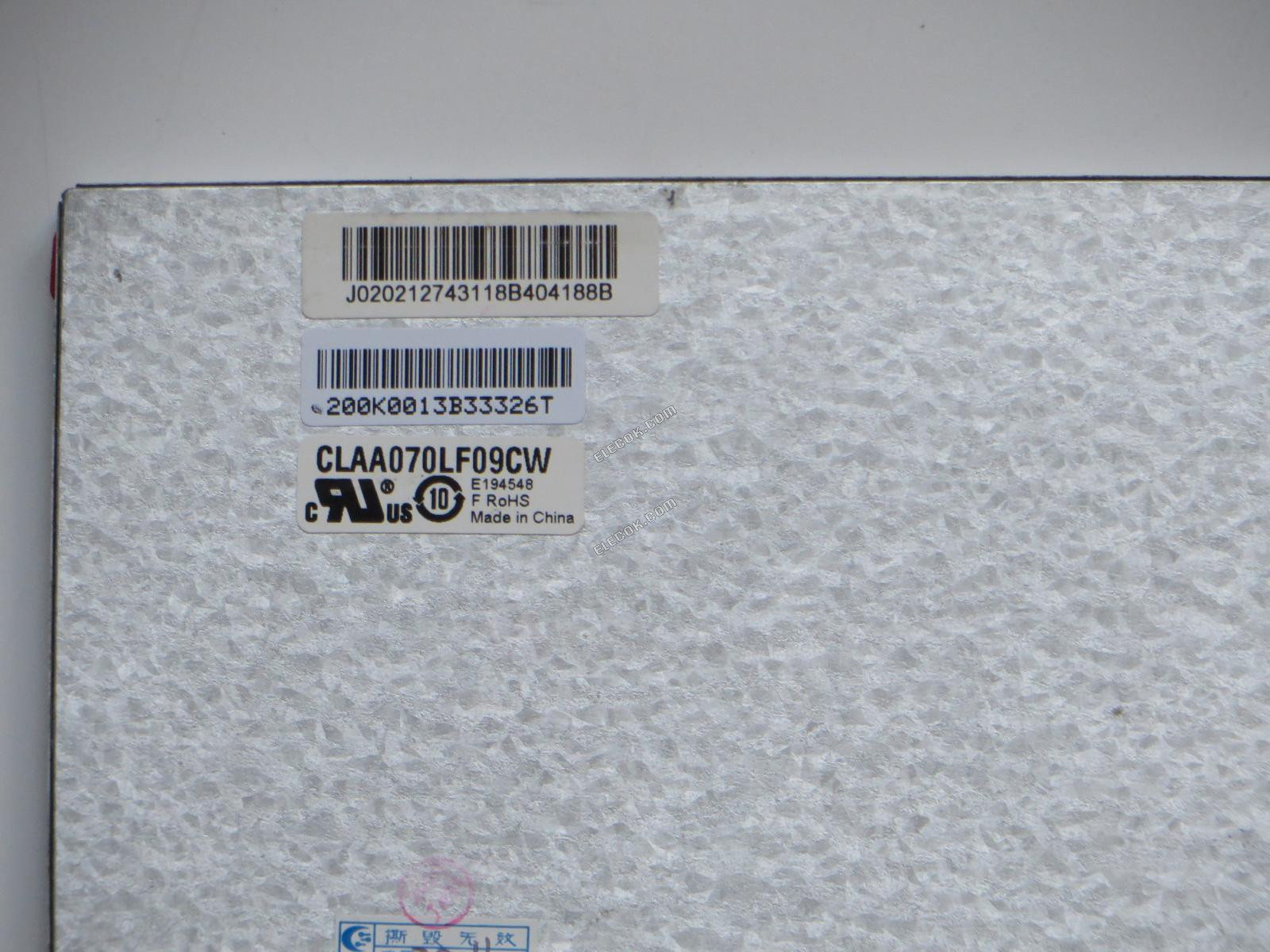

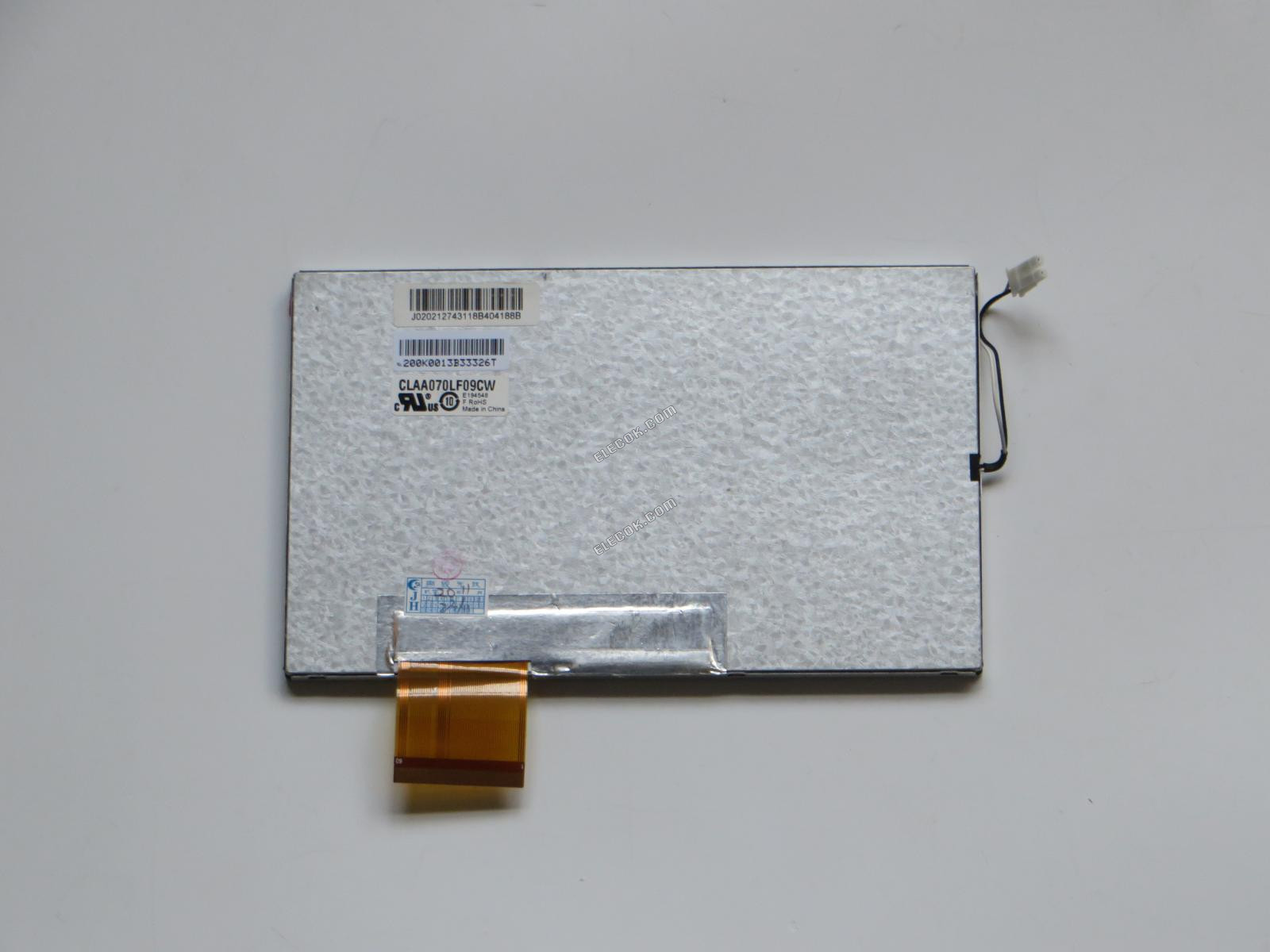

CLAA070LF09CW CPT 7.0" A-si TFT-LCD Panel

CLAA070LF09CW CPT 7.0" A-si TFT-LCD Panel

$74.98
    VISA VISA VISA Mastercard Mastercard Mastercard PayPal PayPal PayPal JCB JCB JCB American Express American Express American Express Diners Club Diners Club Diners Club DISCOVER DISCOVER DISCOVER

    CLAA070LF09CW CPT 7.0" A-si TFT-LCD Panel

    Data Sheet CLAA070LF09CW CPT 7.0" A-si TFT-LCD Panel
    Panel Brand CPT
    Panel Model CLAA070LF09CW
    Panel Type a-Si TFT-LCD Panel
    Panel Size 7.0
    Resolution 800(RGB)×480 (WVGA)
    Display Mode TN, Normally White, Transmissive
    Surface Antiglare, Hard coating (3H)
    Brightness 200 cd/m2 (Typ.)
    Contrast Ratio 500 : 1 (Typ.) (Transmissive)
    Display Colors 16.2M (6-bit + FRC)
    Response Time 25 (Typ.)(Tr+Td) (ms)
    Viewing Angle 70/70/60/60 (Typ.)(CR≥10) (L/R/U/D)
    Frequency 60Hz
    Lamp Type WLED
    Signal Interface
    Input Voltage
    RoHS RoHS Compliance
    Application MID UMPC PAD
    Other NameC1AA0701F09CW
    CLAAO7OLFO9CW
    CLAA070LF09CW CPT 7.0" A-si TFT-LCD Panel
    CLAA070LF09CW CPT 7.0" A-si TFT-LCD Panel
    CLAA070LF09CW CPT 7.0" A-si TFT-LCD Panel

    CPT CLAA070LF09CW Basic Information

    Panel Brand CPT
    Panel Model CLAA070LF09CW
    Panel Type a-Si TFT-LCD Panel
    Application MID UMPC PAD
    Operating Temperature -30 ~ 85 °C
    Storage Temperature -30 ~ 85 °C
    RoHS RoHS Compliance
    Specific Feature Antiglare WLED Wide Temprature WIDE

    CPT CLAA070LF09CW Mechanical Features

    Panel Size 7.0"
    Dot Resolution 800(RGB)×480 (WVGA)
    Aspect Ratio 15:9 (W:H)
    Pixel Configuration RGB Vertical Stripe
    Pixel Pitch 0.1905×0.1905 mm (W×H)
    Surface Antiglare, Hard coating (3H)
    Active Area 152.4×91.44 mm (W×H)
    Outline Dimension 165.0×104.0 mm (W×H)
    Outline Depth 5.5 mm
    Touch Panel Without

    CPT CLAA070LF09CW Optical Features

    Display Mode TN, Normally White, Transmissive
    Brightness 200 cd/m2 (Typ.)
    Contrast Ratio 500 : 1 (Typ.) (Transmissive)
    Display Color 16.2M (6-bit + FRC)
    Color Gamut 50%
    Response Time 25 (Typ.)(Tr+Td)
    Viewing Angle 70/70/60/60 (Typ.)(CR≥10) (L/R/U/D)
    Viewing Direction 6 o'clock
    Transmissivity (%) 4.8/5.1% (Min./Typ.)

    CPT CLAA070LF09CW Electronics Feature

    Vertical Frequency 60Hz

    CPT CLAA070LF09CW Backlight System

    Lamp Position Edge light type
    Lamp Type WLED

    CPT CLAA070LF09CW Signal Interface

    Signal Category LVDS
    Interface Amount 1 pcs
    Interface Pins 30 pins
