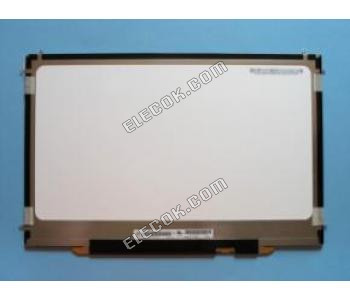

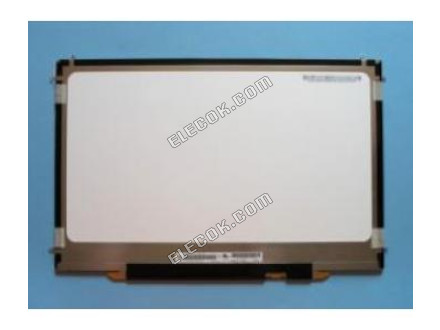

N154C6-L04 15.4" a-Si TFT-LCD Panel for CMO
| Data Sheet | N154C6-L04 15.4" a-Si TFT-LCD Panel for CMO |
| Panel Brand | CMO |
| Panel Model | N154C6-L04 |
| Panel Type | a-Si TFT-LCDPanel |
| Panel Size | 15.4" |
| Resolution | 1440(RGB)×900 (WXGA+) |
| Display Mode | TN, Normally White, Transmissive |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Brightness | 330 cd/m2 (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
| Display Colors | 262K (6-bit) |
| Response Time | 3/7 (Typ.)(Tr/Td) (ms) |
| Viewing Angle | 80/80/70/80 (Typ.)(CR?10) (L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLED |
| Signal Interface | LVDS (2 ch, 6-bit) |
| Input Voltage | 3.3V (Typ.) |
| Other Name | NL54C6-L04 N154C6-104 N154C6-LO4 |
In the following cases, we will make a free reissue or full refund
Product cannot use in warranty period because of product quality problems
Product is damaged in transit
Product is not delivered in time because of our reason
Process of free reissue or full refund
Buyers send an email to our customer service to describe the problem, and to provide evidence (clear photos, screenshots, or video)
We will check the problem in 1 working days. For eligible cases, we will provide a free replacement or full refund within 1-2 business days
If a return is required, the return shipping fee will be paid by us
Buyers can apply for return or exchange within 90 days of receipt
N154C6-L04 15.4" a-Si TFT-LCD Panel for CMO
| Gross Weight | 3 |
|---|
