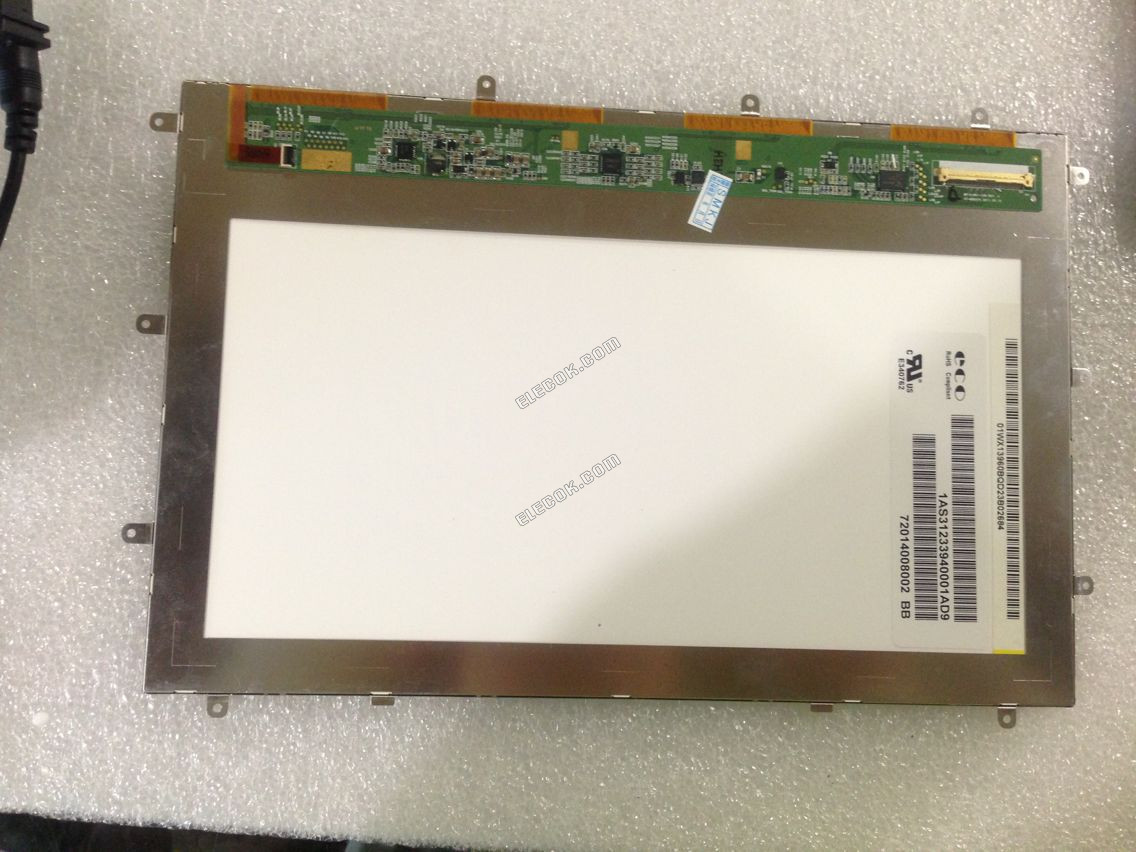

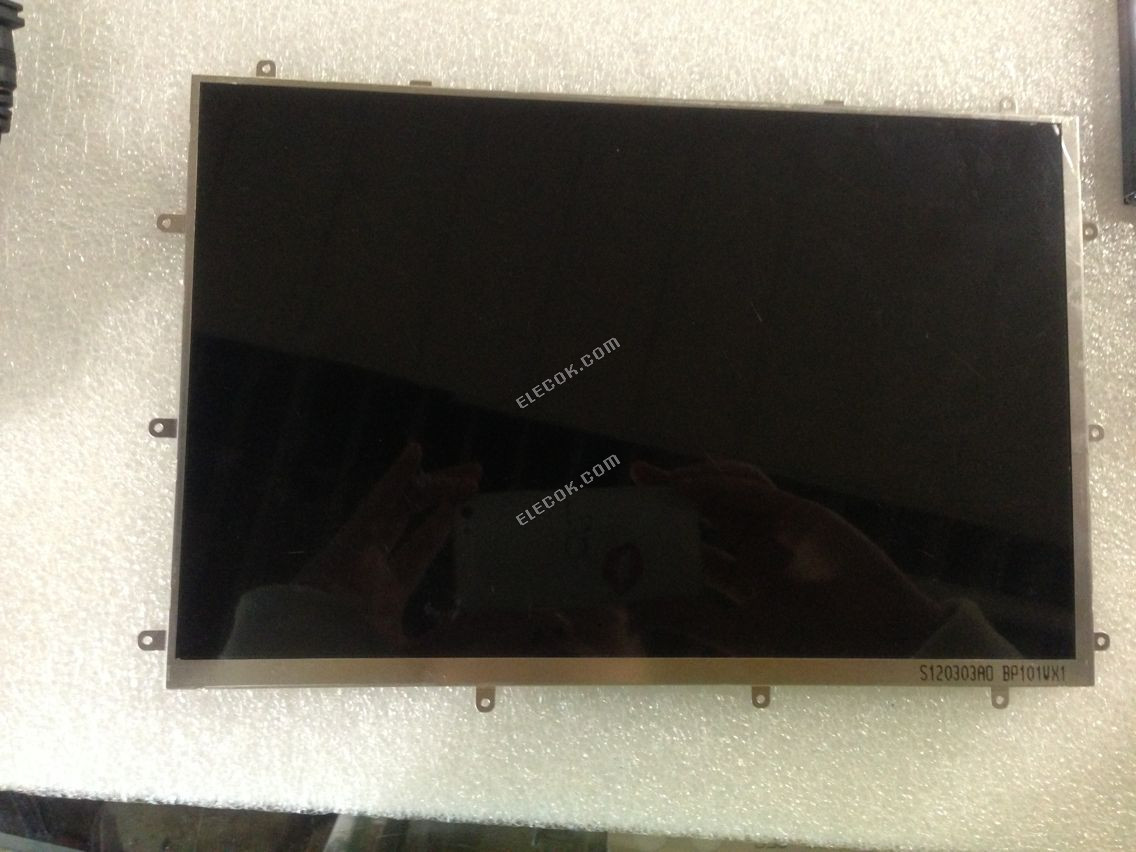

BP101WX1-100 10.1" a-Si TFT-LCD Panel for BOE

BP101WX1-100 10.1" a-Si TFT-LCD Panel for BOE

BP101WX1-100 10.1" a-Si TFT-LCD Panel for BOE

52,98 US$

BP101WX1-100 10.1" a-Si TFT-LCDPanel for BOE

Data Sheet BP101WX1-100 10.1" a-Si TFT-LCD Panel for
Panel BrandBOE
Panel ModelBP101WX1-100
Panel Typea-Si TFT-LCDPanel
Panel Size10.1"
Resolution1280(RGB)×800 (WXGA)
Display ModeADS, Normally Black, Transmissive
SurfaceHard coating (3H), Antireflection
Brightness450 cd/m2 (Typ.)
Contrast Ratio800 : 1 (Typ.) (Transmissive)
Display Colors16.7M (6-bit + Hi-FRC)
Response Time24 (Typ.)(Tr+Td) (ms)
Viewing Angle85/85/85/85 (Typ.)(CR?20) (L/R/U/D)
Frequency60Hz
Lamp TypeWLED
Signal InterfaceLVDS (1 ch, 8-bit)
Input Voltage3.3V (Typ.)
BP101WX1-100 10.1" a-Si TFT-LCD Panel for BOE
BP101WX1-100 10.1" a-Si TFT-LCD Panel for BOE
