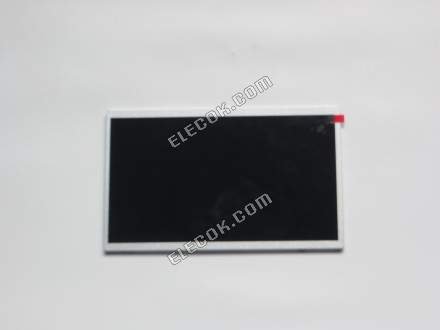

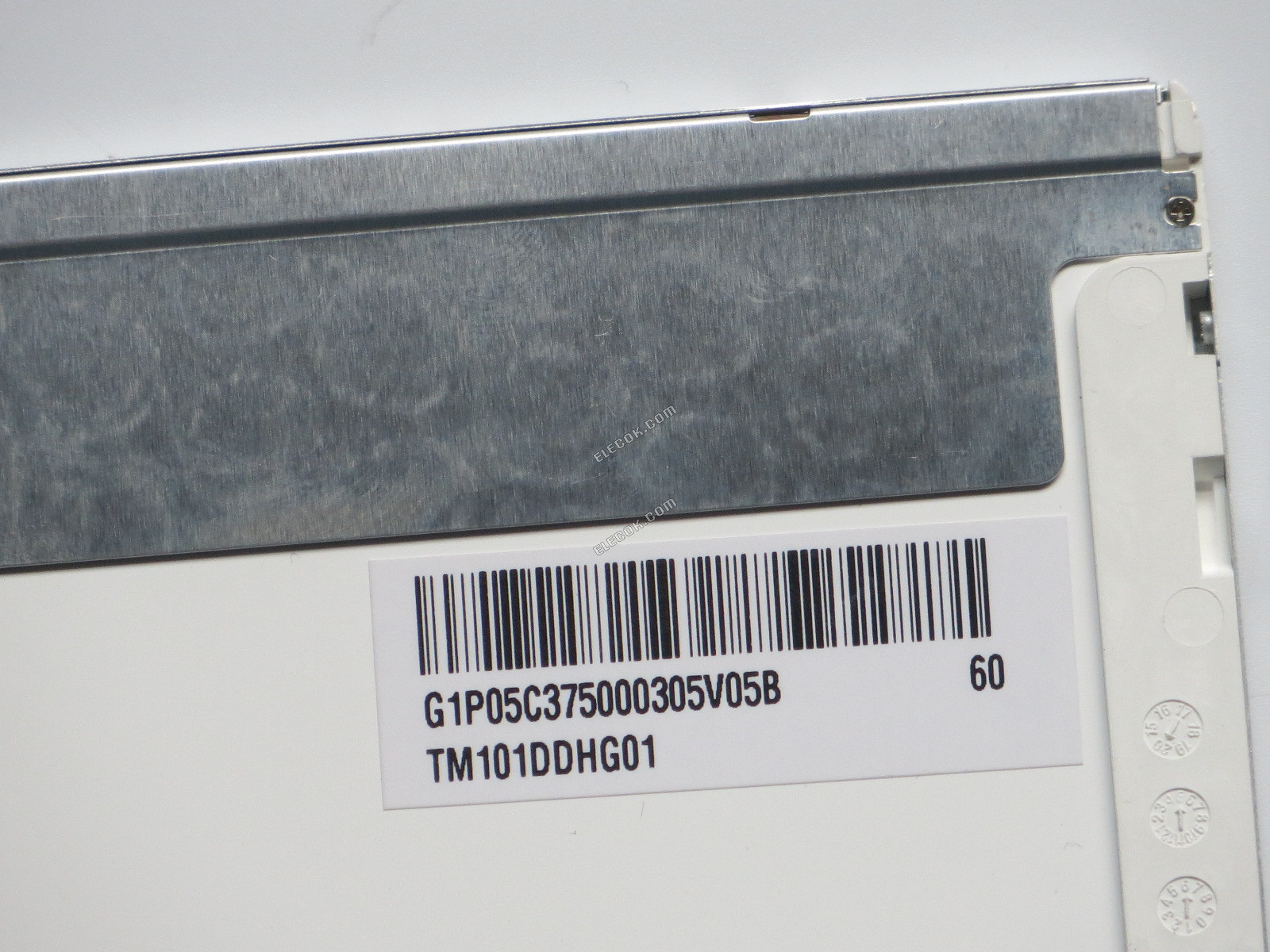

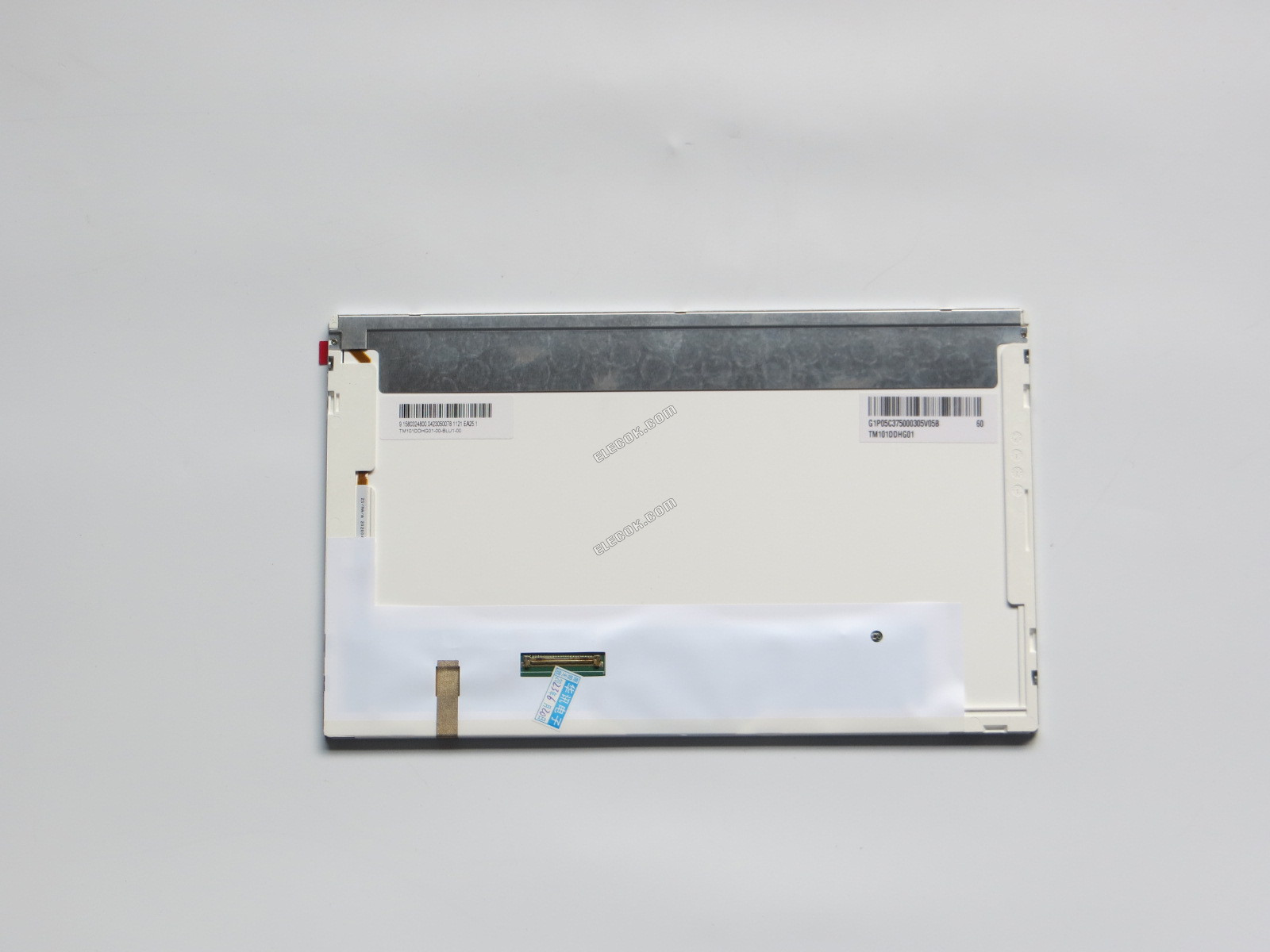

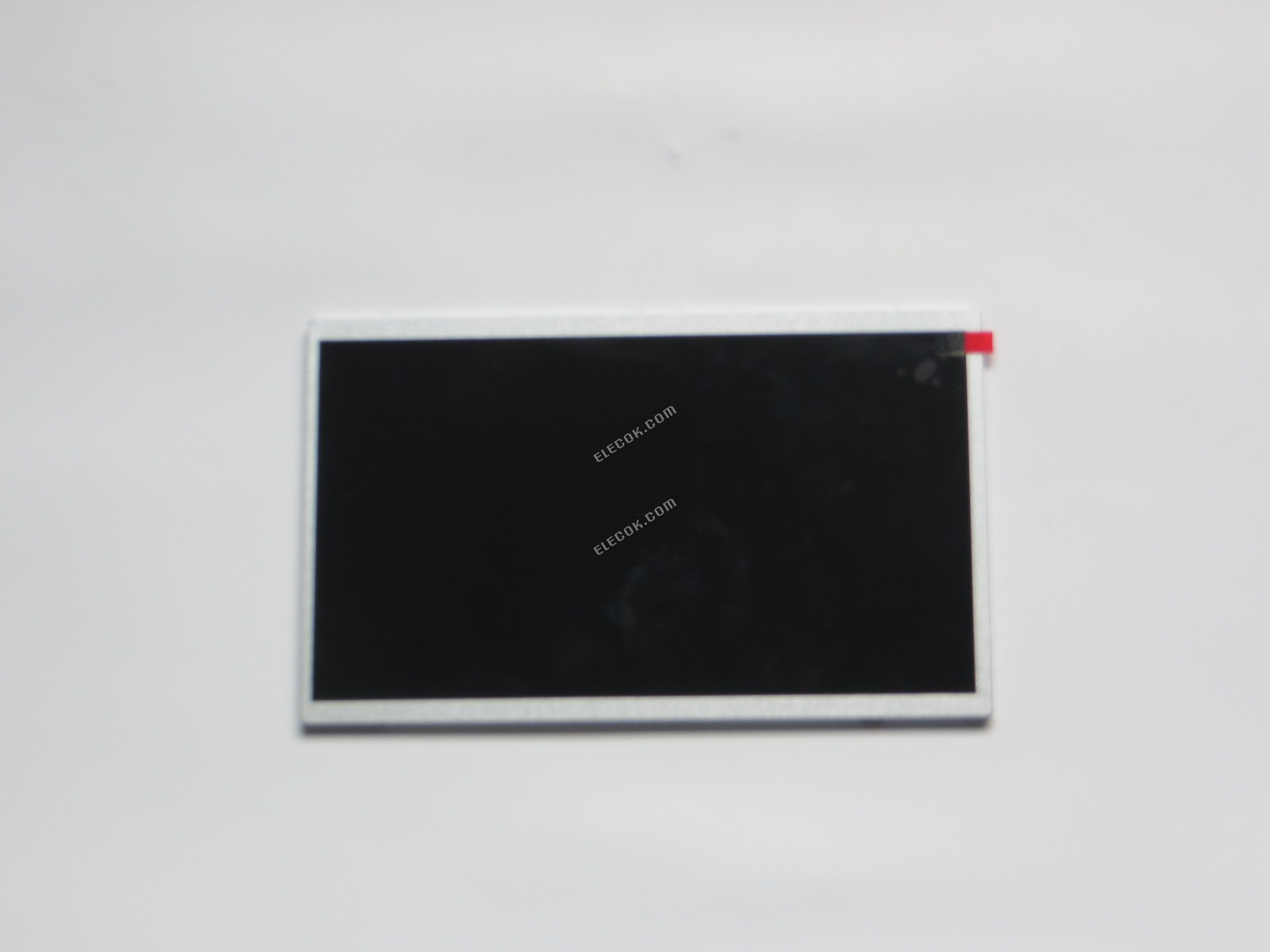

TM101DDHG01 10,1" a-Si TFT-LCD Panel pro TIANMA without dotyková obrazovka

73,98 US$

TM101DDHG01 10,1" a-Si TFT-LCD Panel pro TIANMA without dotyková obrazovka

Specifikace TM101DDHG01 10,1" a-Si TFT-LCD Panel pro TIANMA
ZnačkaTIANMA
Panelový ModelTM101DDHG01
Typ Panelua-Si TFT-LCD , Panel
Velikost Panelu10.1
Rezoluce1024(RGB)×600 , WSVGA
Zobrazovací MódTN, Normally White, Transmissive
Aktivní Oblast222.72×125.28 mm
Obrys235×143×4.9 mm
PovrchAntiglare, Hard coating (3H)
Jas420 cd/m² (Typ.)
Kontrastní Poměr800:1 (Typ.)
Zobrazit Barvy262K/16.7M (6-bit / 6-bit + Hi-FRC) , CIE1931 47%
Doba Odezvy7/9 (Typ.)(Tr/Td)
Pozorovací úhel80/80/75/80 (Typ.)(CR≥10) (L/R/U/D)
Frequency60Hz
Typ Lampy5S4P WLED Without Driver
Signálové RozhraníLVDS (1 ch, 6/8-bit) , 40 pins
Vstupní Napětí3.3/11/22/-7V (Typ.)(VCC/AVDD/VGH/VGL)
RoHSRoHS Compliance
AplikaceCar Display Industry Application PAD

TIANMA TM101DDHG01 Basic Information

Panel BrandTIANMA
Panel ModelTM101DDHG01
Panel Typea-Si TFT-LCD , Panel
ApplicationCar Display Industry Application PAD
Operating Temperature-20 ~ 70 °C
Storage Temperature-30 ~ 80 °C
RoHSRoHS Compliance
Specific FeatureAntiglare 6/8 bit Selectable Wide Viewing Angle Landscape type WLED WIDE

TIANMA TM101DDHG01 Mechanical Features

Panel Size10.1"
Dot Resolution1024(RGB)×600 (WSVGA)
Pixel ConfigurationRGB Vertical Stripe
Pixel Density117 PPI
Aspect Ratio16:9 (H:V)
Form FactorFlat Rectangle Display
Dot Pitch0.0725×0.2088 mm (H×V)
Pixel Pitch0.2175×0.2088 mm (H×V)
SurfaceAntiglare, Hard coating (3H)
Active Area222.72×125.28 mm (H×V)
Bezel Area225.52×128.10 mm (H×V)
Outline Dimension235×143 mm (H×V)
Outline Depth4.9±0.3 mm
Holes & BracketsSide mounting holes (4-M2) on left, right bezel
Landscape or PortraitLandscape type
Touch PanelWithout

TIANMA TM101DDHG01 Optical Features

Display ModeTN, Normally White, Transmissive
Brightness420 cd/m² (Typ.)
Contrast Ratio800 : 1 (Typ.) (Transmissive)
Display Color262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Gamut47% NTSC (CIE1931)
Response Time7/9 (Typ.)(Tr/Td)
Viewing Angle80/80/75/80 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction12 o'clock
White color ChromaticityWx:0.310 Wy:0.330
White Variation1.25/1.43 (Typ./Max.)(9 points)

TIANMA TM101DDHG01 Electronics Feature

Vertical Frequency60Hz
Reverse ScanNo

TIANMA TM101DDHG01 Backlight System

Lamp PositionEdge light type
Lamp TypeWLED
Lamp Amount5S4P
Lamp ShapeArray
Lamp Life Time15K(Min.) (Hours)
Lamp Voltage14/16/17.5V (Min./Typ./Max.)
Lamp Current240/260mA (Typ./Max.)
Interface TypeIncluded in panel signal interface
Lamp Driver BoardNo

TIANMA TM101DDHG01 Signal Interface

Signal CategoryLVDS
Signal ClassLVDS (1 ch, 6/8-bit)
Input Voltage for Panel3.3/11/22/-7V (Typ.)(VCC/AVDD/VGH/VGL)
Interface TypeConnector
Signal InterfaceConfiguration
LVDS-40P1C8B-020C
loading...
In the following cases, we will make a free reissue or full refund

Product cannot use in warranty period because of product quality problems

Product is damaged in transit

Product is not delivered in time because of our reason


Process of free reissue or full refund

Buyers send an email to our customer service([email protected]) to describe the problem, and to provide evidence (clear photos, screenshots, or video)

We will check the problem in 1 working days. For those meet the requirements, free reissue or full refund will be made within 1 working days

If a return is required, the return shipping fee will be paid by us


Buyers can apply for return or exchange within 90 days of receipt
