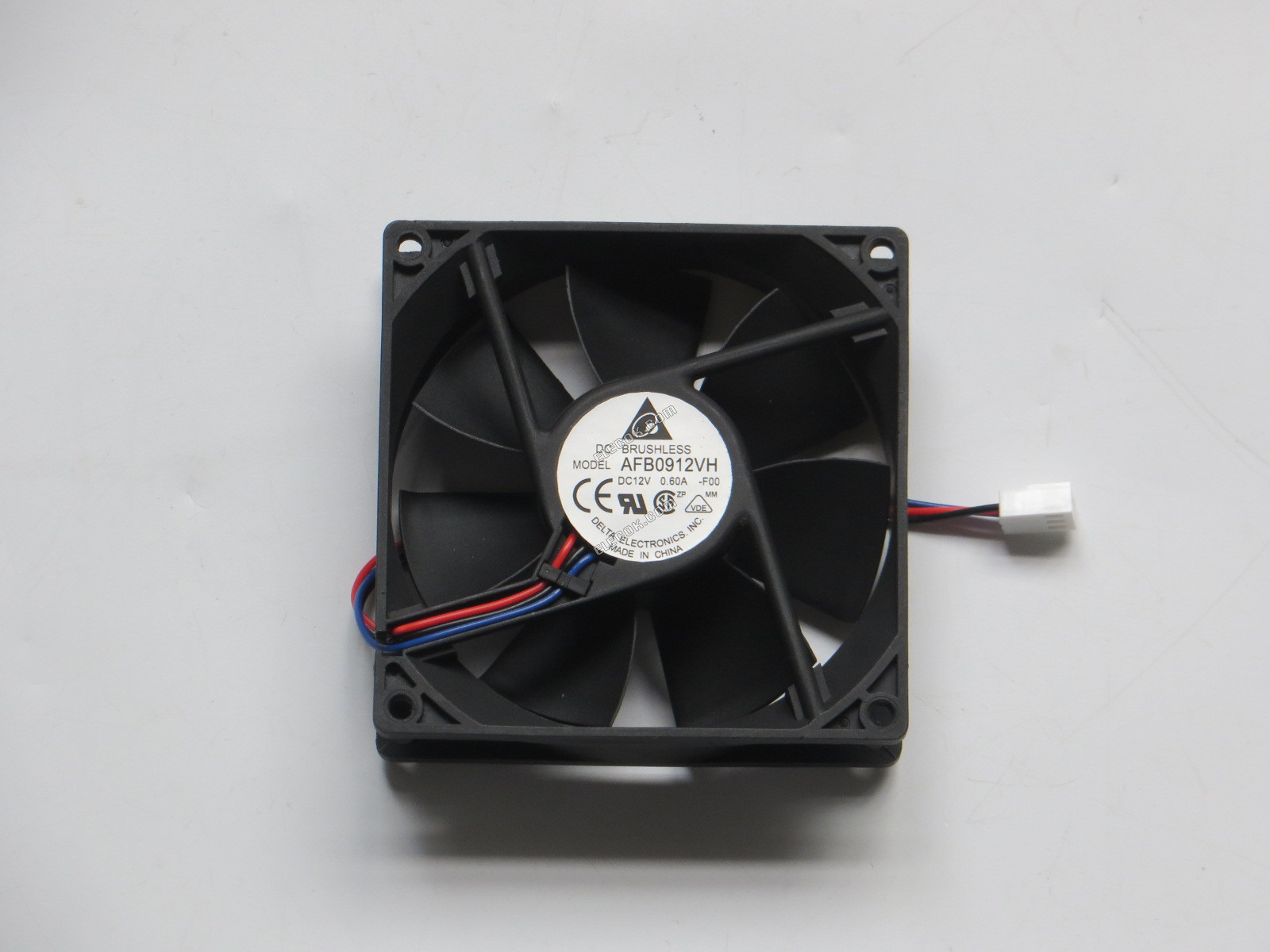

DELTA AFB0912VH-F00 12V 0.6A 4.8W 3wires Cooling Fan
| Data Sheet | DELTA AFB0912VH-F00 12V 0.6A 4.8W 3wires Cooling |
| Manufacturer | DELTA |
| Part number | AFB0912VH-F00 |
| other name | 603-1321,AFB0912VHF00,AFBO912VH-FOO |
| AC/DC | DC Fans |
| Fan Type | Axial |
| Size | 92 mm x 92 mm x 25 mm |
| Voltage | 12V |
| Current | 0.6A |
| PoWer | 4.8W |
| Termination | 3 wires |
| Speed (RPM) | 3800 |
| Air Flow | 67.8 CFM (1.92 m³/min) |
| Features | Speed Sensor (Tach) |
| Bearing | Ball |
| Shape | Square |
| Series | AFB |
| Static Pressure | 0.302 in H2O (75.2 Pa) |
| Noise | 45 dBA |
| Blade_material | Plastic |
| Frame_material | Plastic |
| Other Name | AFB09L2VH-F00 AFBO912VH-FOO |
