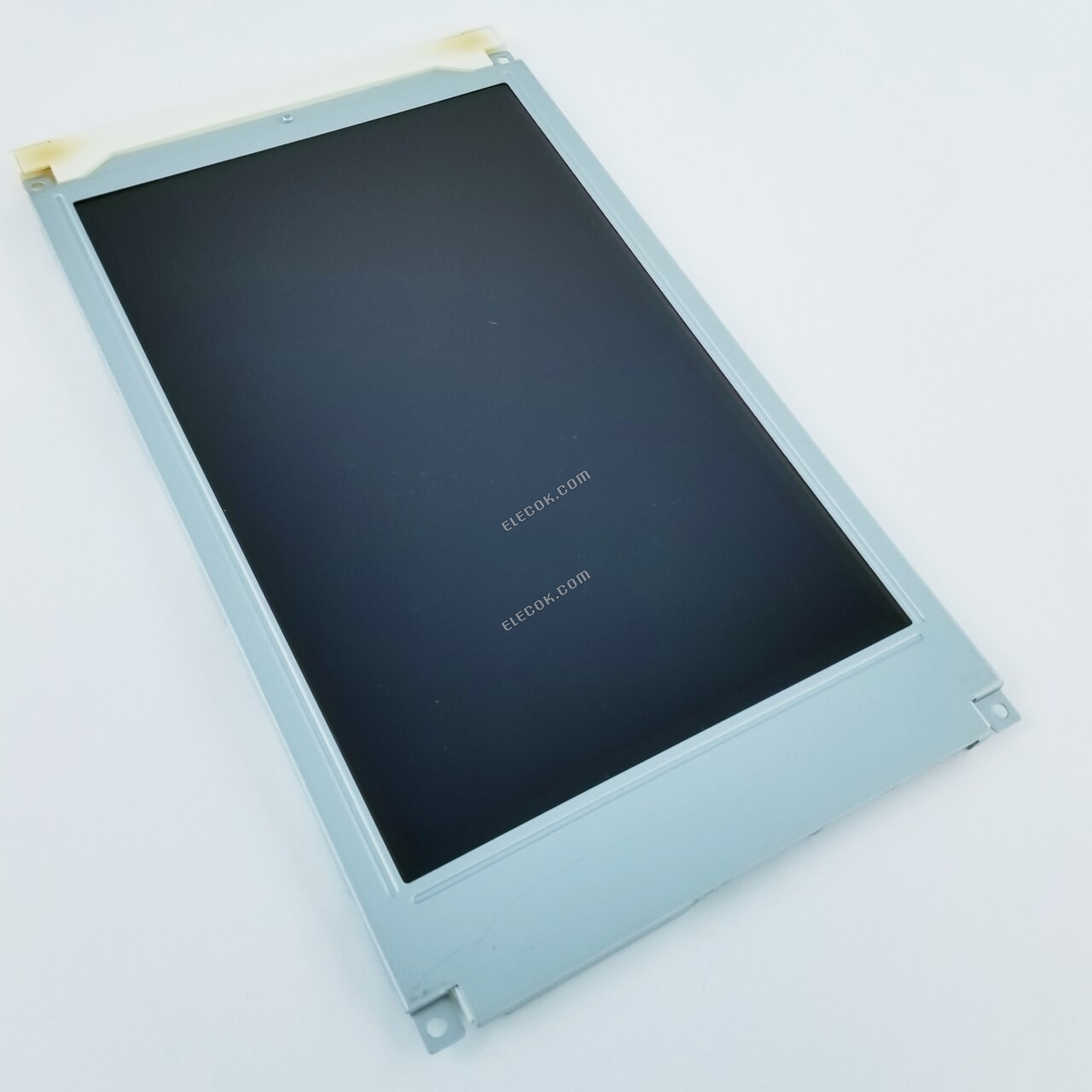

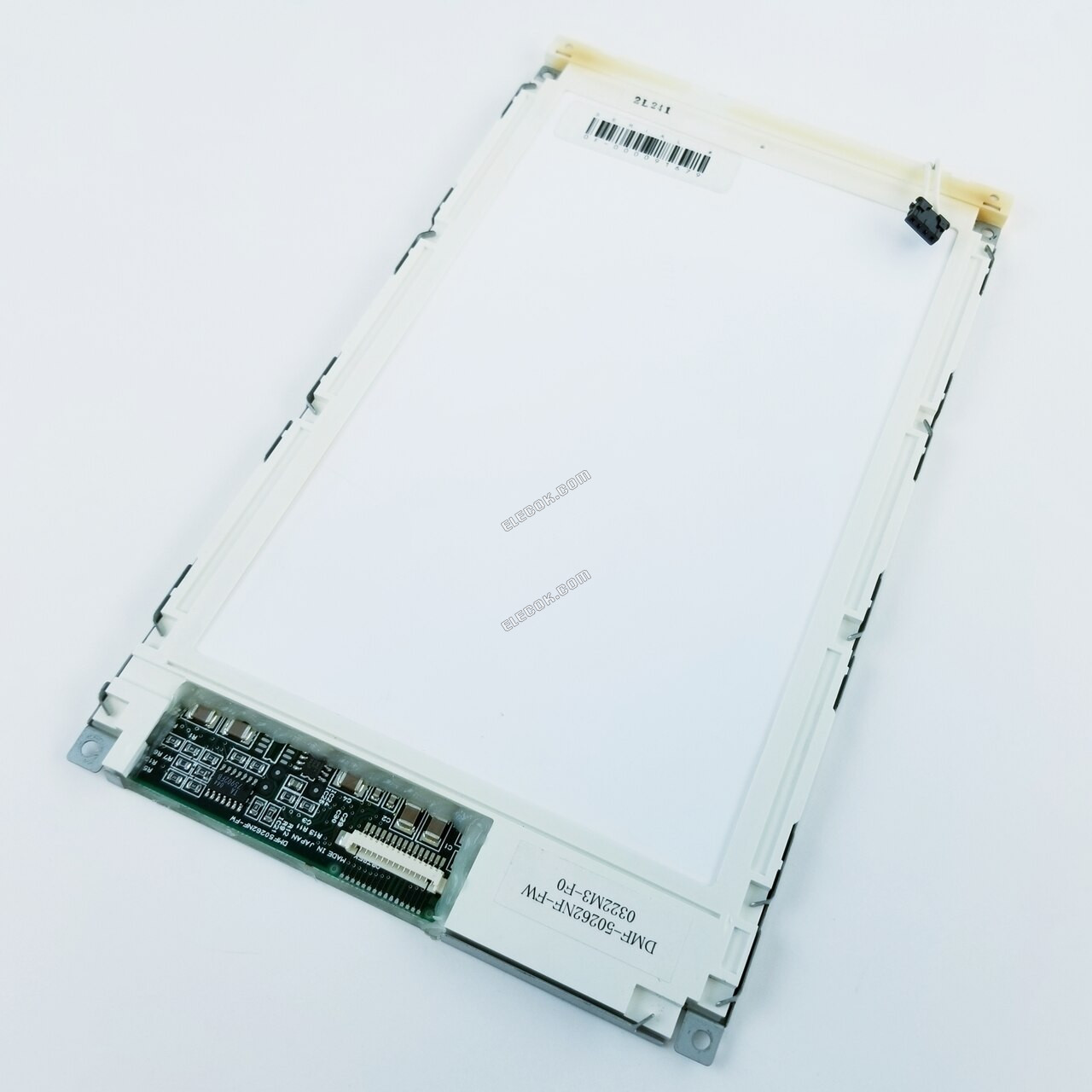

DMF-50262NF-FW OPTREX 8.9" FSTN-LCD, Panel

DMF-50262NF-FW OPTREX 8.9" FSTN-LCD, Panel

Price on Request
    VISA VISA VISA Mastercard Mastercard Mastercard PayPal PayPal PayPal JCB JCB JCB American Express American Express American Express Diners Club Diners Club Diners Club DISCOVER DISCOVER DISCOVER

    DMF-50262NF-FW OPTREX 8.9" FSTN-LCD, Panel

    Data Sheet DMF-50262NF-FW OPTREX 8.9" FSTN-LCD, Panel
    Panel Brand OPTREX
    Panel Model DMF-50262NF-FW
    Panel Type FSTN-LCD,Panel
    Panel Size 8.9
    Resolution 640×400
    Display Mode STN, Black/White mode, Transmissive
    Surface
    Brightness 55 cd/m2 (Typ.)
    Contrast Ratio 12 : 1 (Typ.) (Transmissive)
    Display Colors Monochrome
    Response Time 190/230 (Typ.)(Tr/Td) (ms)
    Viewing Angle 38/50/20/35 (Typ.)(CR?2) (L/R/U/D)
    Frequency 70Hz
    Lamp Type CCFL
    Signal Interface Parallel Data (4-bit)
    Input Voltage
    RoHS RoHS Compliance
    Application Industry Application
    Other NameDMF-5O262NF-FW
    DMF-50262NF-FW OPTREX 8.9" FSTN-LCD, Panel
    DMF-50262NF-FW OPTREX 8.9" FSTN-LCD, Panel
    DMF-50262NF-FW OPTREX 8.9" FSTN-LCD, Panel
    DMF-50262NF-FW OPTREX 8.9" FSTN-LCD, Panel
    DMF-50262NF-FW OPTREX 8.9" FSTN-LCD, Panel
    DMF-50262NF-FW OPTREX 8.9" FSTN-LCD, Panel
    DMF-50262NF-FW OPTREX 8.9" FSTN-LCD, Panel
    DMF-50262NF-FW OPTREX 8.9" FSTN-LCD, Panel
    DMF-50262NF-FW OPTREX 8.9" FSTN-LCD, Panel
    DMF-50262NF-FW OPTREX 8.9" FSTN-LCD, Panel
    DMF-50262NF-FW OPTREX 8.9" FSTN-LCD, Panel
    DMF-50262NF-FW OPTREX 8.9" FSTN-LCD, Panel
    DMF-50262NF-FW OPTREX 8.9" FSTN-LCD, Panel
    DMF-50262NF-FW OPTREX 8.9" FSTN-LCD, Panel
    DMF-50262NF-FW OPTREX 8.9" FSTN-LCD, Panel
    DMF-50262NF-FW OPTREX 8.9" FSTN-LCD, Panel
    DMF-50262NF-FW OPTREX 8.9" FSTN-LCD, Panel
    DMF-50262NF-FW OPTREX 8.9" FSTN-LCD, Panel
    DMF-50262NF-FW OPTREX 8.9" FSTN-LCD, Panel
    DMF-50262NF-FW OPTREX 8.9" FSTN-LCD, Panel
    DMF-50262NF-FW OPTREX 8.9" FSTN-LCD, Panel

    DMF-50262NF-FW 8.9" FSTN-LCD,Panel for OPTREX

    OPTREX DMF-50262NF-FW Basic Information
    Panel Brand OPTREX
    Panel Model DMF-50262NF-FW
    Model Alias DMF50262NF-FW
    Panel Type FSTN-LCD,Panel
    Application Industrial Application
    Operating Temperature 0 ~ 50 °C
    Storage Temperature -20 ~ 60 °C
    RoHS RoHS Compliance
    Specific Feature Wide Aspect Ratio

    DMF-50262NF-FW 8.9" FSTN-LCD,Panel for OPTREX

    OPTREX DMF-50262NF-FW Mechanical Features
    Panel Size 8.9"
    Dot Resolution 640×400
    Aspect Ratio 10:16 (W:H)
    Pixel Configuration Rectangle
    Pixel Pitch 0.300×0.300 mm (W×H)
    Active Area 191.97×119.97 mm (W×H)
    Bezel Area 200.0×128.0 mm (W×H)
    Outline Dimension 255.0×147.0 mm (W×H)
    Outline Depth 7.3 (Max.) mm
    Holes & Brackets
    Touch Panel Embeded (Projected Capacitive Touch)

    DMF-50262NF-FW 8.9" FSTN-LCD,Panel for OPTREX

    OPTREX DMF-50262NF-FW Optical Features
    Display Mode STN, Black/White mode, Transmissive
    Brightness 55 cd/m2 (Typ.)
    Contrast Ratio 12 : 1 (Typ.) (Transmissive)
    Display Color Monochrome ()
    Response Time 10/15 (Typ.)(Tr/Td)
    Viewing Angle 38/50/20/35 (Typ.)(CR?2) (L/R/U/D)
    Viewing Direction 6 o'clock

    DMF-50262NF-FW 8.9" FSTN-LCD,Panel for OPTREX

    OPTREX DMF-50262NF-FW Electronics Feature
    Vertical Frequency 70Hz

    DMF-50262NF-FW 8.9" FSTN-LCD,Panel for OPTREX

    OPTREX DMF-50262NF-FW Backlight System
    Lamp Position Edge light type
    Lamp Type CCFL
    Lamp Amount 1 pcs
    Lamp Shape Straight
    Lamp Life Time 15K(Typ.) (Hours)
    Lamp Voltage
    Lamp Current 5.0±1.0mA
    Lamp Startup Voltage 800V (Min.)
    Lamp Driver Board Embedded (Inverter)
    Interface Type Connector
    Interface Brand MITSUMI
    Interface Model M63M83-04
    Interface Pin Pitch 2.5 mm
    Interface Amount 1 pcs
    Interface Pins 4 pins
    Pin Configuration BLL-4PINS-HNNL

    DMF-50262NF-FW 8.9" FSTN-LCD,Panel for OPTREX

    OPTREX DMF-50262NF-FW Signal Interface
    Signal Category LVDS
    Signal Class TTL (1 ch, 8-bit) + SPI
    Interface Type Connector
    Interface Brand molex
    Interface Model 53261-1510
    Interface Pin Pitch 1.25 mm
    Interface Amount 1 pcs
    Interface Pins 15 pins
