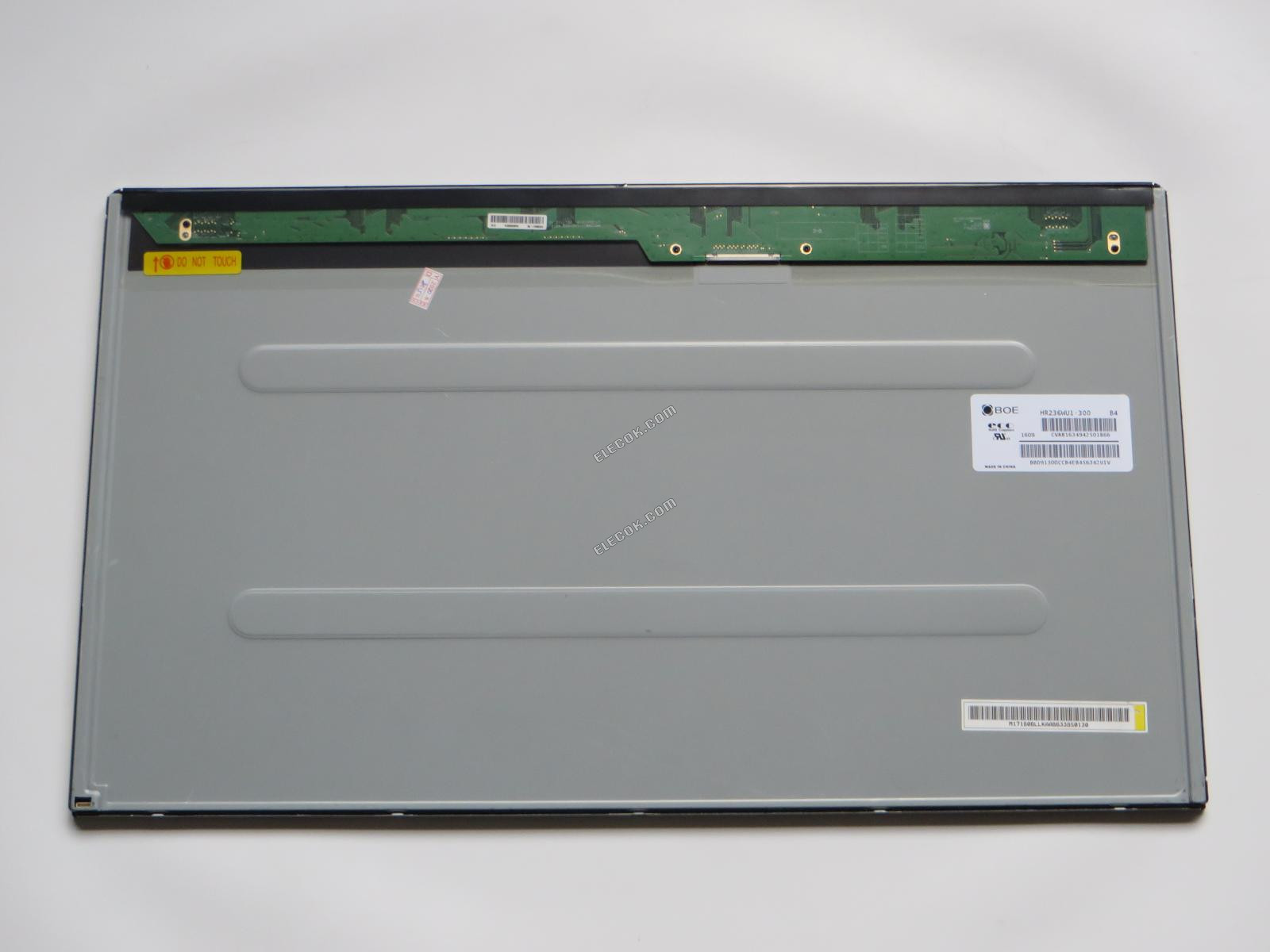

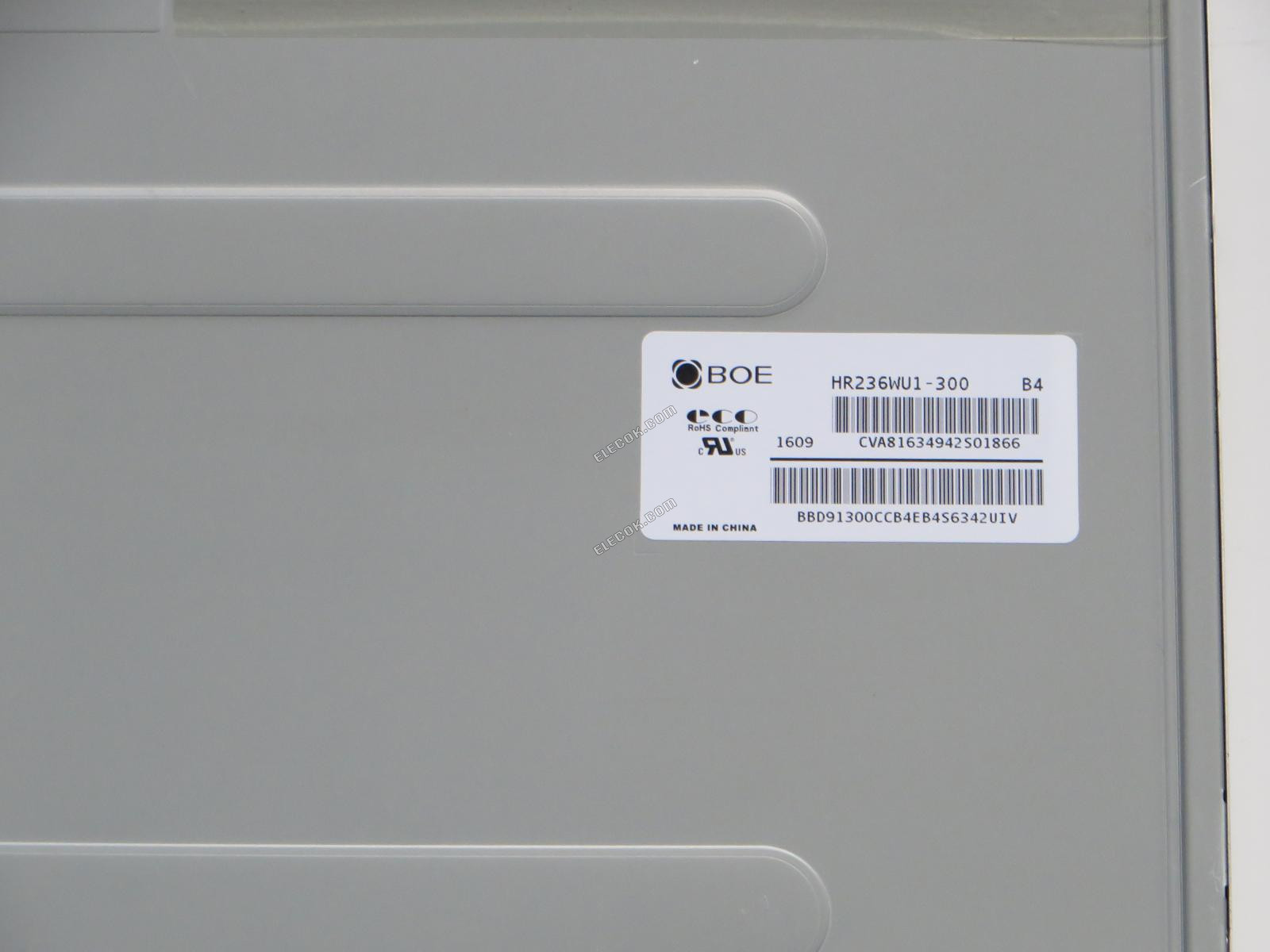

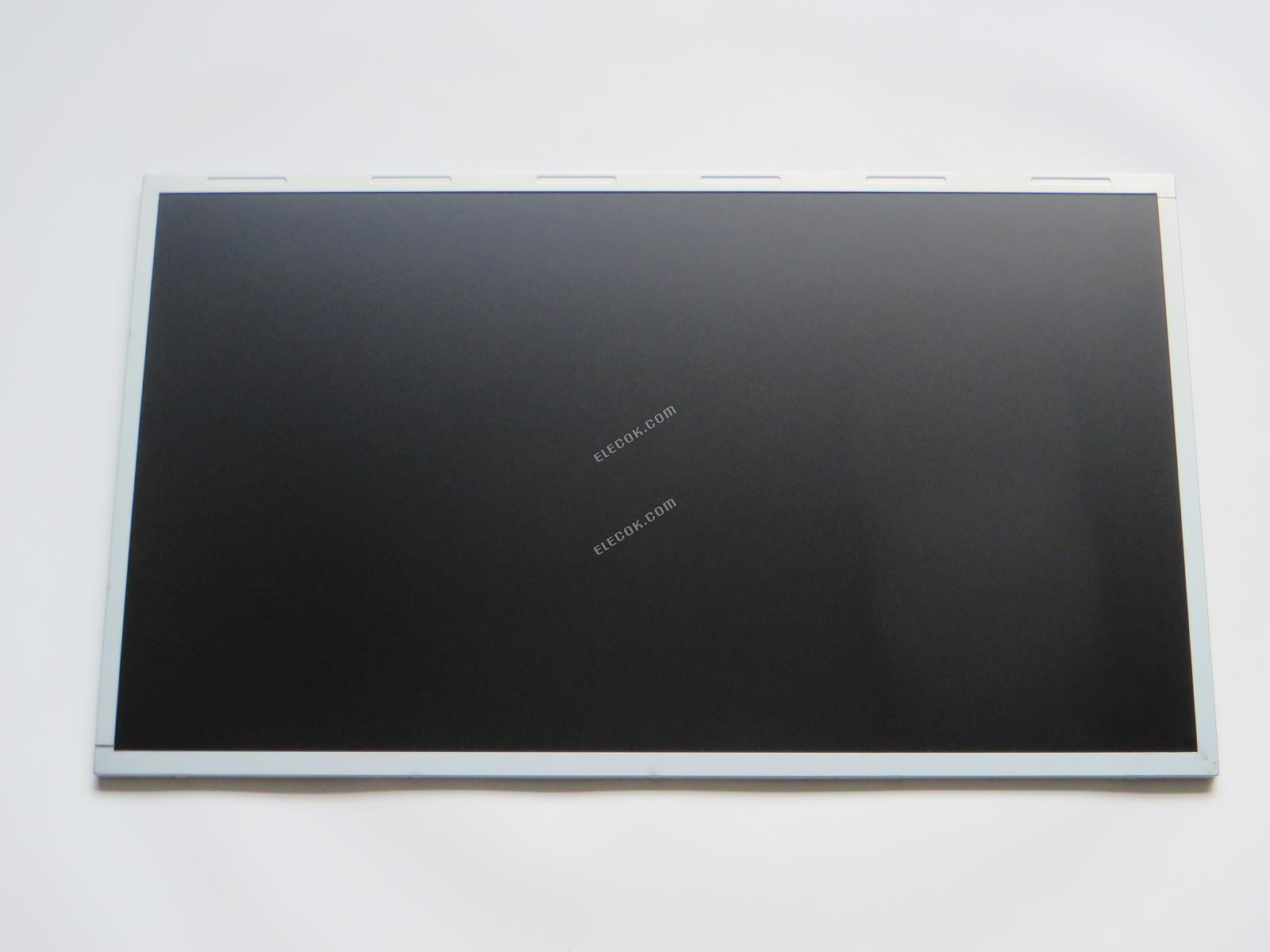

HR236WU1-300 23.6" a-Si TFT-LCD,Panel for BOE
| Data Sheet | HR236WU1-300 23.6" a-Si TFT-LCD,Panel for |
| Panel Brand | BOE |
| Panel Model | HR236WU1-300 |
| Panel Type | a-Si TFT-LCD,Panel |
| Panel Size | 23.6 |
| Resolution | 1920(RGB)×1080 (FHD) |
| Display Mode | ADS, Normally Black, Transmissive |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 250 cd/m2 (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
| Display Colors | 16.7M (6-bit + Hi-FRC) |
| Response Time | 14 (Typ.)(G to G) (ms) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR?10) (L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLED |
| Signal Interface | LVDS (2 ch, 8-bit) |
| Input Voltage | 5.0V (Typ.) |
| RoHS | RoHS Compliance |
| Application | Desktop Monitor |
| Other Name | HR236WUL-300 HR236WU1-3OO |
HR236WU1-300 23.6" a-Si TFT-LCD,Panel for BOE
| BOE HR236WU1-300 Basic Information | |
|---|---|
| Panel Brand | BOE |
| Panel Model | HR236WU1-300 |
| Panel Type | a-Si TFT-LCD,Panel |
| Application | Desktop Monitor |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| RoHS | RoHS Compliance |
| Specific Feature | Antiglare Sureface Wide Viewing Angle White LED Backlight Wide Aspect Ratio |
| Remarks | TCO 5.0 , E/S 5.0 compliant |
HR236WU1-300 23.6" a-Si TFT-LCD,Panel for BOE
| BOE HR236WU1-300 Mechanical Features | |
|---|---|
| Panel Size | 23.6" |
| Dot Resolution | 1920(RGB)×1080 (FHD) |
| Aspect Ratio | 16:9 (W:H) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Pitch | 0.2715×0.2715 mm (W×H) |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area | 521.28×293.22 mm (W×H) |
| Outline Dimension | 544.8×320.5 mm (W×H) |
| Outline Depth | 8.9/10.5 (Typ./Max.) mm |
| Touch Panel | Without |
HR236WU1-300 23.6" a-Si TFT-LCD,Panel for BOE
| BOE HR236WU1-300 Optical Features | |
|---|---|
| Display Mode | ADS, Normally Black, Transmissive |
| Brightness | 250 cd/m2 (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M (6-bit + Hi-FRC) |
| Response Time | 1.5/3.5 (Typ.)(Tr/Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR?10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | X:0.313 Y:0.329 |
| White Variation | 1.25/1.33 (Typ./Max.)(9 points) |
HR236WU1-300 23.6" a-Si TFT-LCD,Panel for BOE
| BOE HR236WU1-300 Electronics Feature | |
|---|---|
| Vertical Frequency | 60Hz |
| Reverse Scan | No |
| Total Power Consumption | 24.5/26.7W (Typ./Max.) |
HR236WU1-300 23.6" a-Si TFT-LCD,Panel for BOE
| BOE HR236WU1-300 Backlight System | |
|---|---|
| Lamp Position | Edge light type |
| Lamp Type | WLED |
| Lamp Life Time | 30K(Min.) (Hours) |
| Lamp Voltage | |
| Lamp Current | 120.0mA (Typ.) |
| Lamps Power Consumption | 18.7/20.0/21.2W (Min./Typ./Max.) |
| Lamp Driver Board | No |
| Interface Type | Connector |
| Interface Brand | E&T |
| Interface Model | 3708K-Q06N-00R |
| Interface Pin Pitch | 1.0 |
| Interface Amount | 1 pcs |
| Interface Pins | 6 pins |
| Pin Configuration | BLE-6PINS-CCAACC |
HR236WU1-300 23.6" a-Si TFT-LCD,Panel for BOE
| BOE HR236WU1-300 Signal Interface | |
|---|---|
| Signal Category | V-by-One |
| Signal Class | LVDS |
| Pin Configuration | LVDS-30P2C8B-160A |
| Input Voltage for Panel | 5.0V (Typ.) |
| Input Current for Panel | 900/1100mA (Typ./Max.) |
| Panel Power Consumption | 4.5/5.5W (Typ./Max.) |
| Interface Type | Connector |
| Interface Brand | UJU |
| Interface Model | IS100-L30R-C23 |
| Interface Pin Pitch | 1.0 mm |
| Interface Amount | 1 pcs |
| Interface Pins | 30 pins |
