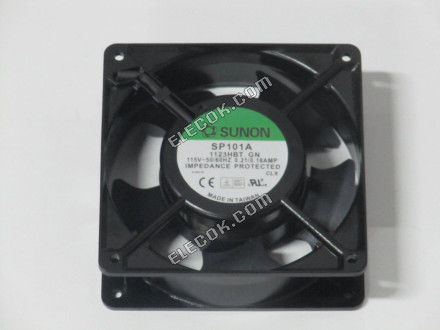

Sunon SP101A 1123HBT.GN 115V 0.18A 20/18W 2wires Cooling Fan
| Data Sheet | Sunon SP101A 1123HBT.GN 115V 0.18A 20/18W |
| Manufacturer | Sunon |
| Part number | SP101A 1123HBT.GN |
| other name | 259-1387,S115C0AMB1T-GRS,SP101A 1123HBT.GN,SP101A1123HBT.GN,SP101A1123HBTGN,SP1O1A 1123HBT.GN |
| AC/DC | AC Fans |
| Fan Type | Axial |
| Size | 120 mm x 120 mm x 38 mm |
| Voltage | 115V |
| Current | 0.18A |
| PoWer | 20/18W |
| Termination | 2 wires |
| Speed (RPM) | 3050 |
| Air Flow | 107.0 CFM (3.03 m³/min) |
| Bearing | Ball |
| Shape | Square |
| Series | SP |
| Static Pressure | 0.320 in H2O (79.7 Pa) |
| Noise | 50 dBA |
| Blade_material | Polybutylene Terephthalate (PBT) |
| Frame_material | Aluminum |
| Other Name | SPL0LA LL23HBT.GN SP1O1A 1123HBT.GN |
In the following cases, we will make a free reissue or full refund
Product cannot use in warranty period because of product quality problems
Product is damaged in transit
Product is not delivered in time because of our reason
Process of free reissue or full refund
Buyers send an email to our customer service to describe the problem, and to provide evidence (clear photos, screenshots, or video)
We will check the problem in 1 working days. For eligible cases, we will provide a free replacement or full refund within 1-2 business days
If a return is required, the return shipping fee will be paid by us
Buyers can apply for return or exchange within 90 days of receipt
Sunon SP101A 1123HBT.GN 115V 0.18A 20/18W 2wires Cooling Fan
| Gross Weight | 0.6 |
|---|
