供給について
本製品はメーカーへの取り寄せ品で、メーカーで新たに製造された製品をメーカー純正の梱包でお届けします。
納期の目安は通常20～40週間ですが、供給が不足している一部の型番では、さらに長くなる場合があります。
納期はメーカーの生産計画に左右されるため、正確な予測は困難です。当社では継続的に状況を確認し、納期の短縮に向けて最大限努めます。
LT3060EDC#TRPBF Analog Devices LDO Linear Regulators - 1 Reel (2500 pcs)
| データシート | LT3060EDC#TRPBF Analog Devices LDO Linear Regulators - 1 Reel (2500 pcs) |
| Manufacturer | Analog Devices |
| Model | LT3060EDC#TRPBF |
| Category | LDO Linear Regulators |
| Sales Unit | 1 Reel |
| Pack Qty (pcs) | 2500 |
| MOQ (pcs) | 2500 |
| Order Multiple (pcs) | 2500 |

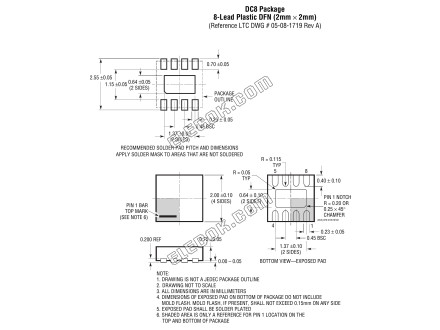

| Device Package | 8-Lead DFN (2mm x 2mm w/ EP) |
| Packing Type | Reel |
| Operating temperature range | -40 to 125 °C |
| Package pin/lead count | 8 pins |
| Package nominal length | 2.0 mm |
| Package nominal width | 2.0 mm |
| ADJ reference voltage | 594 mV (Min.) 600 mV (Typ.) 606 mV (Max.) Adjustable version, VIN = 2.1 V, ILOAD = 1 mA, ADJ connected to OUT TA = 25°C Unsuffixed EDC/ETS8 variants are adjustable |
| Minimum input voltage requirement at 100 mA | 1.6 V (Typ.) 2.1 V (Max.) ILOAD = 100 mA Full-temperature specification maximum requirement of 2.1 V, not a guaranteed 1.6 V operating minimum E-grade assurance Output headroom and Thermal and current-limit constraints apply |
| Nominal output current capability | 100 mA Adequate input voltage, dropout headroom, and thermal management required Current-limit foldback restricts available current at high input-to-output differential |
| Dropout voltage at 100 mA | 300 mV (Typ.) 350 mV (Max.) TA = 25°C ILOAD = 100 mA adjustable part set to 2.5 V by external divider DFN maximum at 25°C is 350 mV full-range maximum is 510 mV |
| Input Voltage Range | 1.6V to 45V |
| Quiescent Current | 40μA |
| Low Noise | 30μVRMS (10Hz to 100kHz) |
| Adjustable Output | VREF = 600mV |
| Shutdown Current | < 1μA |
| Protection | Reverse Battery Protection Current Limit Foldback Protection Thermal Limit Protection |
LT3060EDC#TRPBF Analog Devices LDO Linear Regulators - 1 Reel (2500 pcs)
| 総重量 | 1.643 |
|---|
