供給について
本製品はメーカーへの取り寄せ品で、メーカーで新たに製造された製品をメーカー純正の梱包でお届けします。
納期の目安は通常20～40週間ですが、供給が不足している一部の型番では、さらに長くなる場合があります。
納期はメーカーの生産計画に左右されるため、正確な予測は困難です。当社では継続的に状況を確認し、納期の短縮に向けて最大限努めます。
LT3092ETS8#TRPBF Analog Devices LDO Linear Regulators - 1 Reel (2500 pcs)
| データシート | LT3092ETS8#TRPBF Analog Devices LDO Linear Regulators - 1 Reel (2500 pcs) |
| Manufacturer | Analog Devices |
| Model | LT3092ETS8#TRPBF |
| Category | LDO Linear Regulators |
| Sales Unit | 1 Reel |
| Pack Qty (pcs) | 2500 |
| MOQ (pcs) | 2500 |
| Order Multiple (pcs) | 2500 |

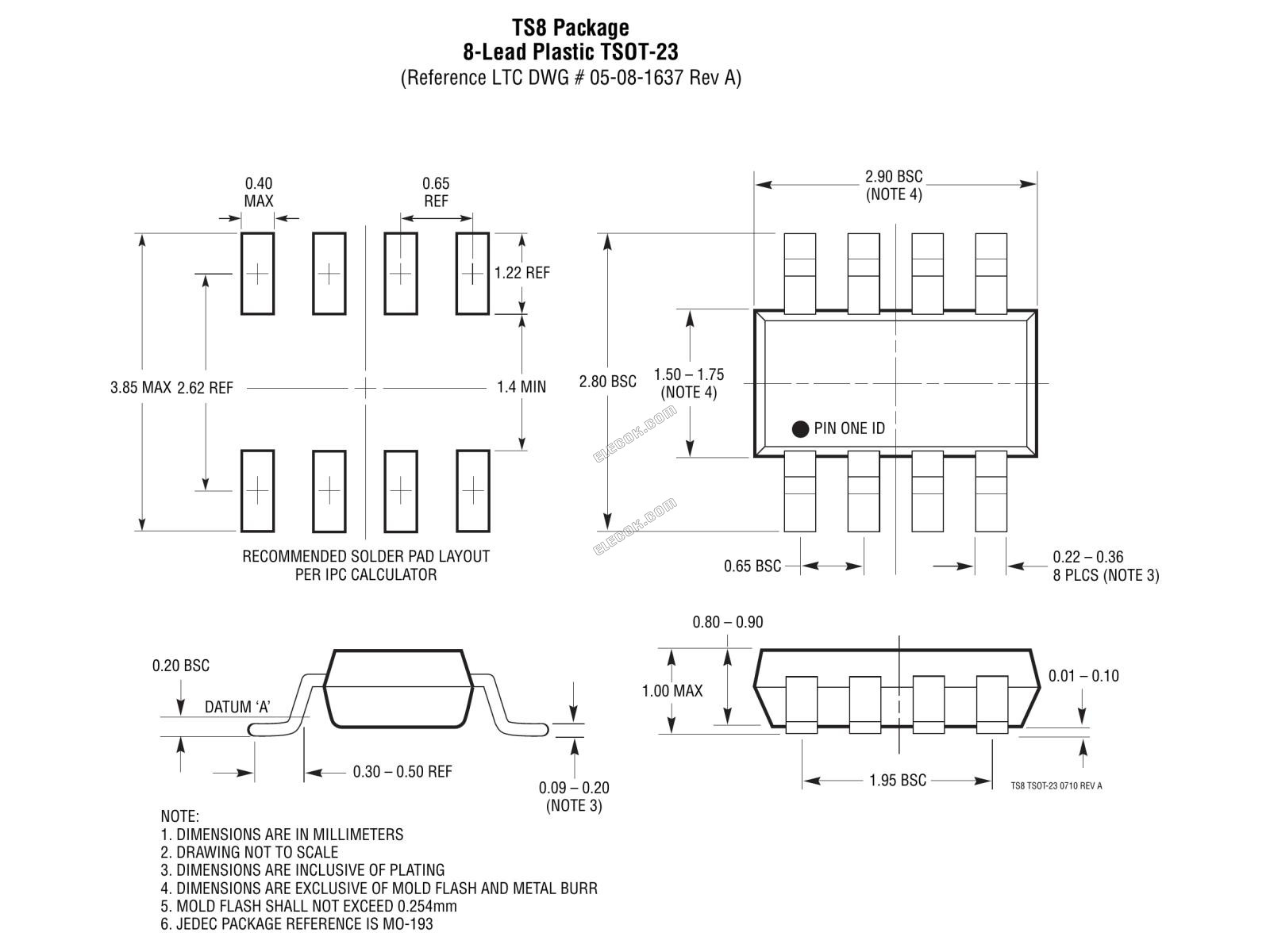

| Device Package | 8-Lead SOT-23 |
| Packing Type | Reel |
| Operating temperature range | -40 to 125 °C |
| Package pin/lead count | 8 pins |
| Programmable output current range | 0.5 to 200 mA Two external resistors set output current Requires sufficient input-to-output compliance current-limit, dissipation and thermal constraints |
| SET reference current | 9.9 µA (Min.) 10 µA (Typ.) 10.1 µA (Max.) VIN = 2 V relative to VOUT, ILOAD = 1 mA, TJ = 25°C This is SET reference current, not load current |
| Dropout voltage at 200 mA | 1.3 V (Typ.) 1.65 V (Max.) ILOAD = 200 mA minimum input-to-output differential for current Full-temperature limit E-grade design/characterization assurance and I-grade guarantee Thermal constraints |
| Features | Programmable 2-Terminal Current Source <0.001%/V Line Regulation Typical |
| Wide Input Voltage Range | 1.2V to 40V |
| Capacitor Requirements | Input/Output Capacitors Not Required |
| Protection | Reverse-Voltage Protection Reverse-Current Protection |
| Shutdown Current | Current Limit and Thermal Shutdown Protection |
LT3092ETS8#TRPBF Analog Devices LDO Linear Regulators - 1 Reel (2500 pcs)
| 総重量 | 1.643 |
|---|
