供給について
本製品はメーカーへの取り寄せ品で、メーカーで新たに製造された製品をメーカー純正の梱包でお届けします。
納期の目安は通常20～40週間ですが、供給が不足している一部の型番では、さらに長くなる場合があります。
納期はメーカーの生産計画に左右されるため、正確な予測は困難です。当社では継続的に状況を確認し、納期の短縮に向けて最大限努めます。

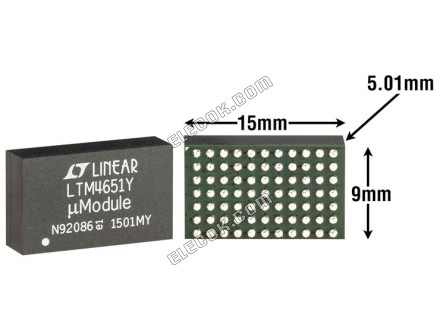

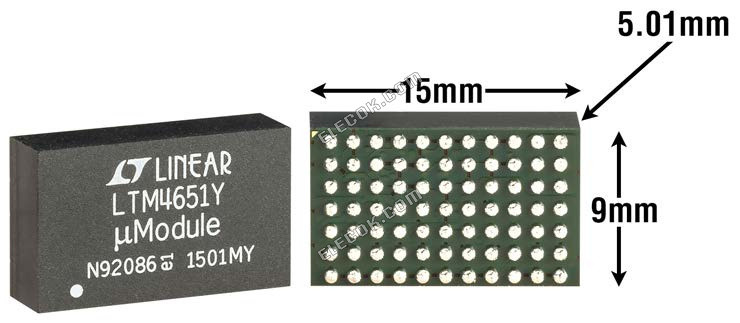

LTM4651IY#PBF Analog Devices Switching Regulators & Controllers - 1 Tray (170 pcs)
| データシート | LTM4651IY#PBF Analog Devices Switching Regulators & Controllers - 1 Tray (170 pcs) |
| Manufacturer | Analog Devices |
| Model | LTM4651IY#PBF |
| Category | Switching Regulators & Controllers |
| Sales Unit | 1 Tray |
| Pack Qty (pcs) | 170 |
| MOQ (pcs) | 170 |
| Order Multiple (pcs) | 170 |
| Device Package | 77-Lead BGA (9mm x 15mm x 5.01mm) |
| Packing Type | Tray |
| Operating temperature range | -40 to 125 °C |
| Package pin/lead count | 77 pins |
| Package nominal length | 9.0 mm |
| Package nominal width | 15.0 mm |
| Package nominal height | 5.01 mm |
| Input DC voltage range | 3.6 to 58 V Mandatory safe operating area VIN + |VOUT−| ≤ 58 V Voltages and Test Circuit 1 conditions not a standalone 58 V input at every negative output |
| Negative output regulation range | -26.5 to -0.5 V 0.5 V ≤ ISETa − SVOUT− ≤ 26.5 V and VIN + |VOUT−| ≤ 58 V Negative polarity |
| Features | Complete Low EMI Switch Mode Power Supply EN55022 Class B Compliant Constant-Frequency Current Mode Control |
| Output Current | Up to 4A Output Current |
| Output Voltage Range | –26.5V ≤ VOUT– ≤ –0.5V |
| Frequency Synchronization Range | 250kHz to 3MHz |
| Soft Start | Power Good Indicator and Programmable Soft-Start |
| Protection | Overcurrent/Overvoltage/Overtemperature Protection |
LTM4651IY#PBF Analog Devices Switching Regulators & Controllers - 1 Tray (170 pcs)
| 総重量 | 0.657 |
|---|
