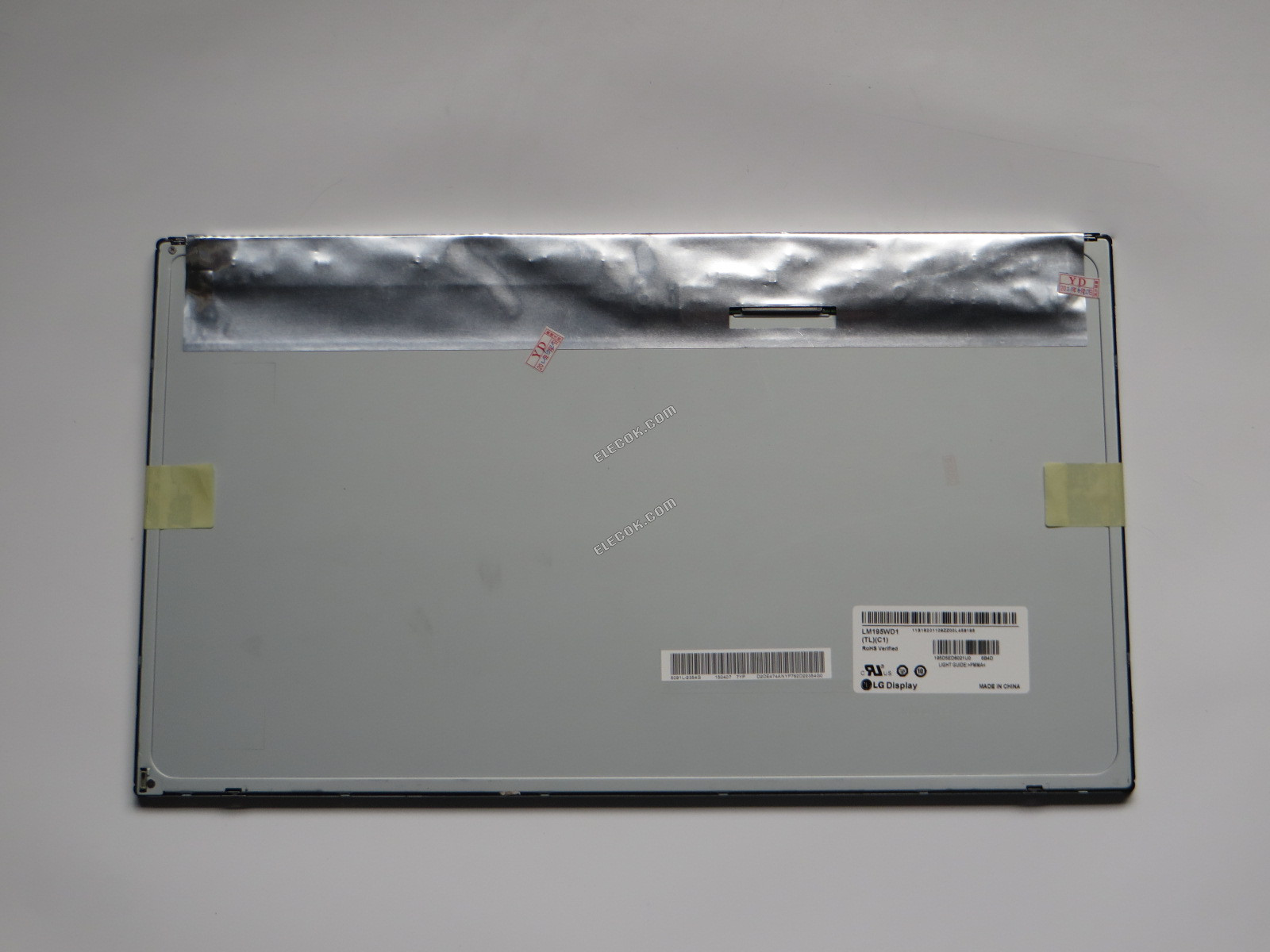

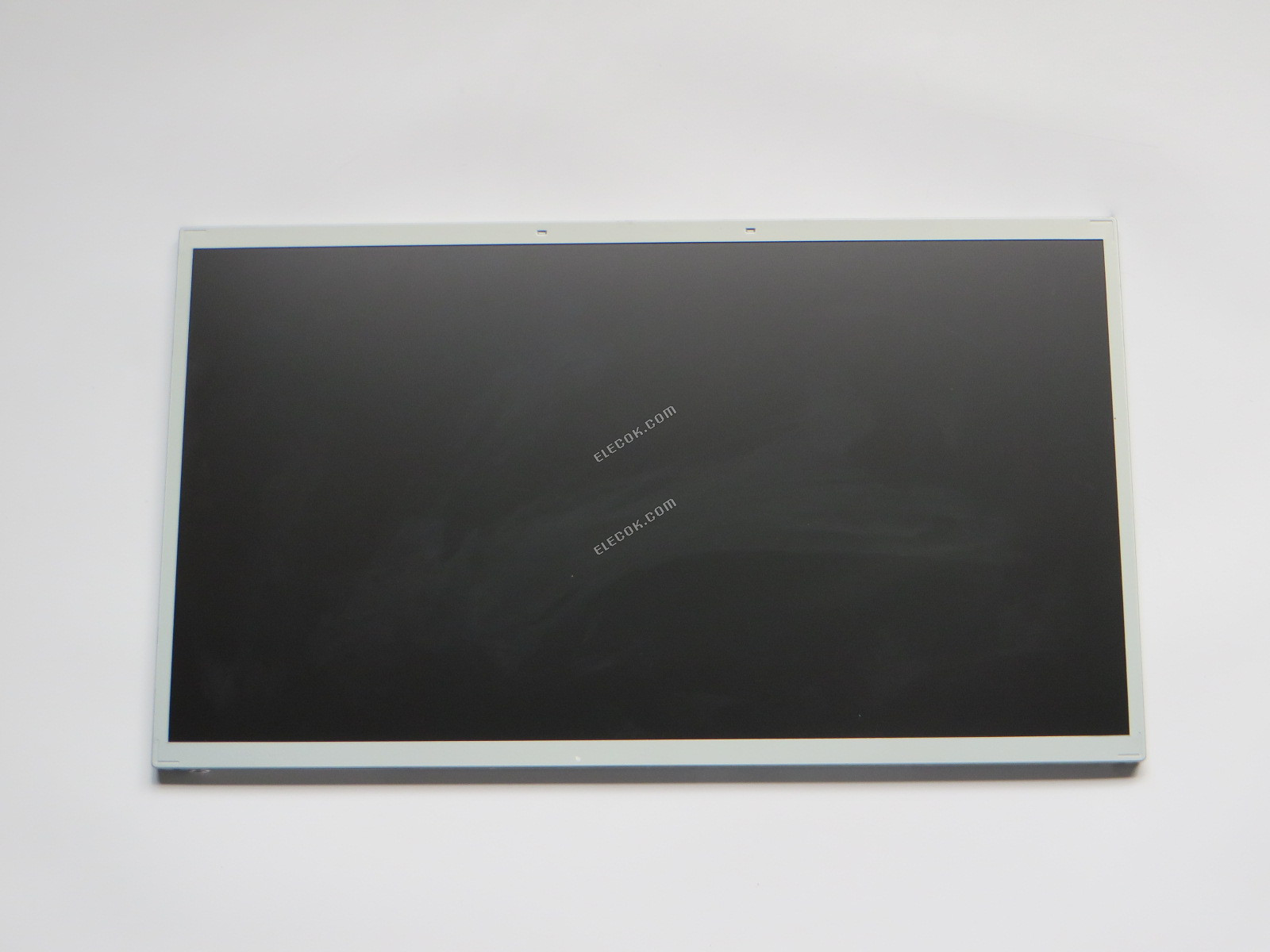

LM195WD1-TLC1 Lg Display 19.5" A-si TFT-LCD Panel Inventory New

LM195WD1-TLC1 Lg Display 19.5" A-si TFT-LCD Panel Inventory New

$137.98
    VISA VISA VISA Mastercard Mastercard Mastercard PayPal PayPal PayPal JCB JCB JCB American Express American Express American Express Diners Club Diners Club Diners Club DISCOVER DISCOVER DISCOVER

    LM195WD1-TLC1 Lg Display 19.5" A-si TFT-LCD Panel Inventory New

    Data Sheet LM195WD1-TLC1 Lg Display 19.5" A-si TFT-LCD Panel Inventory New
    Panel Brand LG Display
    Panel Model LM195WD1-TLC1
    Panel Type a-Si TFT-LCD Panel
    Panel Size 19.5
    Resolution 1600(RGB)×900 (HD+)
    Display Mode TN, Normally White, Transmissive
    Surface Antiglare, Hard coating (3H)
    Brightness 200 cd/m2 (Typ.)
    Contrast Ratio 600 : 1 (Typ.) (Transmissive)
    Display Colors 16.7M (8-bit)
    Response Time 1.3/3.7 (Typ.)(Tr/Td) (ms)
    Viewing Angle 45/45/15/35 (Typ.)(CR?10) (L/R/U/D)
    Frequency 60Hz
    Lamp Type WLED
    Signal Interface LVDS (2 ch, 8-bit)
    Input Voltage 5.0V (Typ.)
    RoHS RoHS Compliance
    Application Desktop Monitor
    Other NameLML95WDL-TLCL
    1M195WD1-T1C1
    LM195WD1-TLC1 Lg Display 19.5" A-si TFT-LCD Panel Inventory New
    LM195WD1-TLC1 Lg Display 19.5" A-si TFT-LCD Panel Inventory New
    LM195WD1-TLC1 Lg Display 19.5" A-si TFT-LCD Panel Inventory New

    LM195WD1-TLC1 19.5" a-Si TFT-LCD Panel for LG Display

    LG Display LM195WD1-TLC1 Basic Information
    Panel Brand LG Display
    Panel Model LM195WD1-TLC1
    Model Alias LM195WD1 (TL)(C1)
    Panel Type a-Si TFT-LCD Panel
    Application Desktop Monitor
    Operating Temperature 0 ~ 50 °C
    Storage Temperature -20 ~ 60 °C
    RoHS RoHS Compliance
    Specific Feature Antiglare Sureface White LED Backlight Wide Aspect Ratio

    LM195WD1-TLC1 19.5" a-Si TFT-LCD Panel for LG Display

    LG Display LM195WD1-TLC1 Mechanical Features
    Panel Size 19.5"
    Dot Resolution 1600(RGB)×900 (HD+)
    Aspect Ratio 4:3 (W:H)
    Pixel Configuration RGB Vertical Stripe
    Pixel Pitch 0.2712×0.2626 mm (W×H)
    Surface Antiglare, Hard coating (3H)
    Active Area 433.92×236.34 mm (W×H)
    Bezel Area 437.2×239.6 mm (W×H)
    Outline Dimension 452.0×263.0 mm (W×H)
    Outline Depth 7.6/10.5 (Typ./Max.) mm
    Holes & Brackets
    Touch Panel Without

    LM195WD1-TLC1 19.5" a-Si TFT-LCD Panel for LG Display

    LG Display LM195WD1-TLC1 Optical Features
    Display Mode TN, Normally White, Transmissive
    Brightness 200 cd/m2 (Typ.)
    Contrast Ratio 600 : 1 (Typ.) (Transmissive)
    Display Color 16.7M (8-bit)
    Response Time 2/6 (Typ.)(Tr/Td)
    Viewing Angle 45/45/15/35 (Typ.)(CR?10) (L/R/U/D)
    Viewing Direction 6 o'clock
    White color Chromaticity X:0.313 Y:0.329
    White Variation 1.33 (Max.)(9 points)

    LM195WD1-TLC1 19.5" a-Si TFT-LCD Panel for LG Display

    LG Display LM195WD1-TLC1 Electronics Feature
    Vertical Frequency 60Hz
    Reverse Scan No
    Total Power Consumption 12.02W (Typ.)

    LM195WD1-TLC1 19.5" a-Si TFT-LCD Panel for LG Display

    LG Display LM195WD1-TLC1 Backlight System
    Lamp Position Edge light type
    Lamp Type WLED
    Lamp Life Time 30K(Min.) (Hours)
    Lamp Voltage
    Lamp Current 120/125mA (Typ./Max.)
    Lamps Power Consumption 8.9/9.5W (Typ./Max.)
    Lamp Driver Board
    Interface Type Connector
    Interface Brand LSM
    Interface Model GT108-6P-H26-E3500
    Interface Amount 1 pcs
    Interface Pins 6 pins
    Pin Configuration BLE-6PINS-CNAANC

    LM195WD1-TLC1 19.5" a-Si TFT-LCD Panel for LG Display

    LG Display LM195WD1-TLC1 Signal Interface
    Signal Category RSDS
    Signal Class
    Pin Configuration LVDS-30P2C8B-160B
    Input Voltage for Panel 5.0V (Typ.)
    Input Current for Panel 694/789mA (Typ./Max.)
    Panel Power Consumption 3.12/3.59W (Typ./Max.)
    Interface Type Connector
    Interface Brand LSM
    Interface Model GT103-30S-HF15-E2500
    Interface Pin Pitch 1.0 mm
    Interface Amount 1 pcs
    Interface Pins 30 pins
