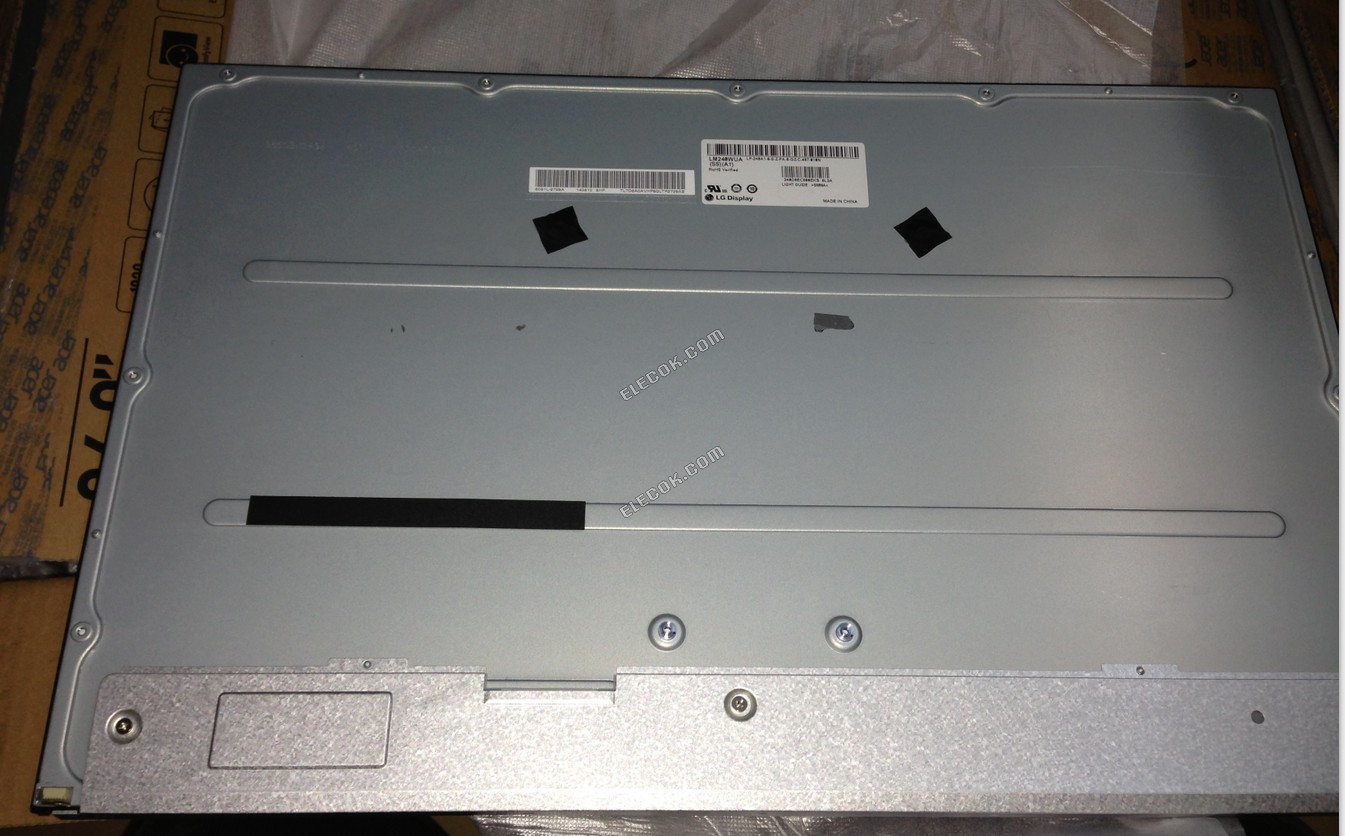

LM240WUA-SSA1 24.0" a-Si TFT-LCD , Panel for LG Display
LM240WUA-SSA1 24.0" a-Si TFT-LCD , Panel for LG Display
Brand | LG Display |
Size | 24.0" |
Panel Type | a-si TFT-LCD |
Panel Model | LM240WUA-SSA1 |
Stocks 1830 pcs | Stocks 1830 pcs |
Resolution | 1920 X 1200 |
Brightness | 300 cd/m2 (Typ.) |
Viewing Angle | 89/89/89/89 (Typ.)(CR>=10) |
Contrast Ratio | 1000:1 (Typ.) ( Transmission ) |
Display Colors | 16.7m 99% (srgb) |
Pixel Format | RGB Vertical Stripe |
Display Area | 518.4 X 324(mm) |
Display Mode | ips, Normally Black , Transmissive |
Lamp Type | WLED 30k Hours Without Driver |
Outline Size | 528.2 X 342.6(mm) |
Surface | Matte (Haze 25%),Hard coating (3H) |
Response Time | 14 (Typ.)(g to g) ms |
Frequency | 60Hz |
Signal Interface | LVDS 30 pins (2 ch 8-bit) |
Input Voltage | 10.0v (Typ.) |
Environment | Operating Temp.: 0 ~ 50°c; Storage Temp.: -20 ~ 60°c; |
Current State | In Production |
Other Name | LM240WUA-SSAL 1M240WUA-SSA1 LM24OWUA-SSA1 |
LG Display LM240WUA-SSA1 Basic Information
Panel Brand | LG Display |
---|
Panel Model | LM240WUA-SSA1 |
---|

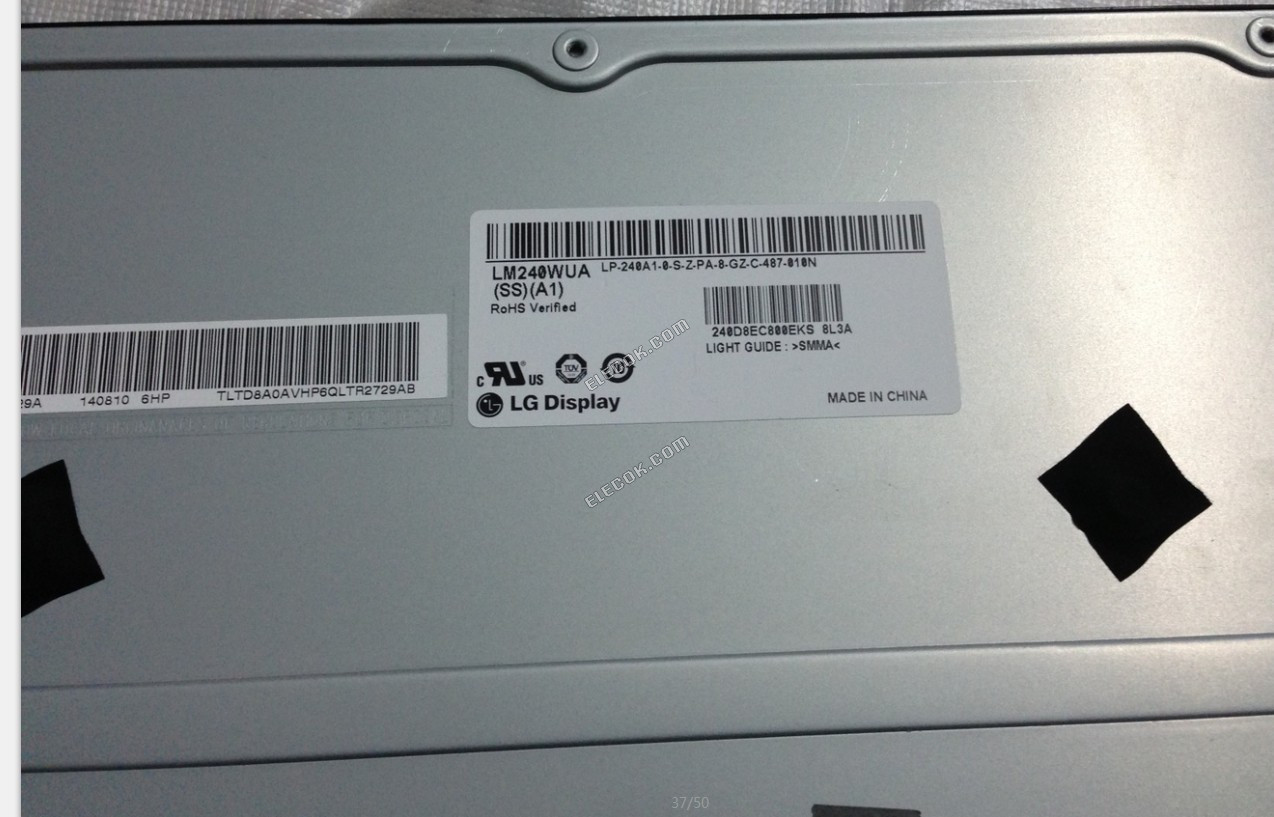

Model Alias | LM240WUA (SS)(A1) |
---|
Panel Type | a-Si TFT-LCD , Panel |
---|
Application | Desktop Monitor |
---|
Operating Temperature | 0 ~ 50 °C |
---|
Storage Temperature | -20 ~ 60 °C |
---|
RoHS | RoHS Compliance |
---|
Specific Feature | High Color Gamut Antiglare Wide Viewing Angle WLED WIDE |
---|
Remarks | Neo BLADE 1 |
---|
LG Display LM240WUA-SSA1 Mechanical Features
Panel Size | 24.0" |
---|
Dot Resolution | 1920(RGB)×1200 (WUXGA) |
---|
Pixel Configuration | RGB Vertical Stripe |
---|
Pixel Density | 94 PPI |
---|
Aspect Ratio | 16:10 (H:V) |
---|
Form Factor | Flat Display |
---|
Pixel Pitch | 0.270×0.270 mm (H×V) |
---|
Surface | Antiglare, Hard coating (3H) |
---|
Active Area | 518.4×324.0 mm (H×V) |
---|
Touch Panel | Without |
---|
LG Display LM240WUA-SSA1 Optical Features
Display Mode | IPS, Normally Black, Transmissive |
---|
Brightness | 300 cd/m2 (Typ.) |
---|
Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
---|
Display Color | 16.7M (6-bit + Hi-FRC) |
---|
Color Gamut | 99% sRGB |
---|
Response Time | 14 (Typ.)(G to G) |
---|
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
---|
Viewing Direction | Symmetry |
---|
White color Chromaticity | X:0.313 Y:0.329 |
---|
White Variation | 1.33 (Max.)(9 points) |
---|
LG Display LM240WUA-SSA1 Electronics Feature
Vertical Frequency | 60Hz |
---|
Reverse Scan | No |
---|
LG Display LM240WUA-SSA1 Backlight System
Lamp Position | Edge light type (Bottom side) |
---|
Lamp Type | WLED |
---|
Lamp Life Time | 30K(Min.) (Hours) |
---|
Lamp Driver Board | No |
---|
Interface Type | Connector |
---|
LG Display LM240WUA-SSA1 Signal Interface
Signal Category | LVDS |
---|
Signal Class | LVDS (2 ch, 8-bit) |
---|
Input Voltage for Panel | 12.0V (Typ.) |
---|
Interface Type | Connector |
---|
Interface Brand | LS Mtron |
---|
Interface Model | GT103-30S-H23-D |
---|
Interface Pin Pitch | 1.0 mm |
---|
Interface Amount | 1 pcs |
---|
Interface Pins | 30 pins |
---|
