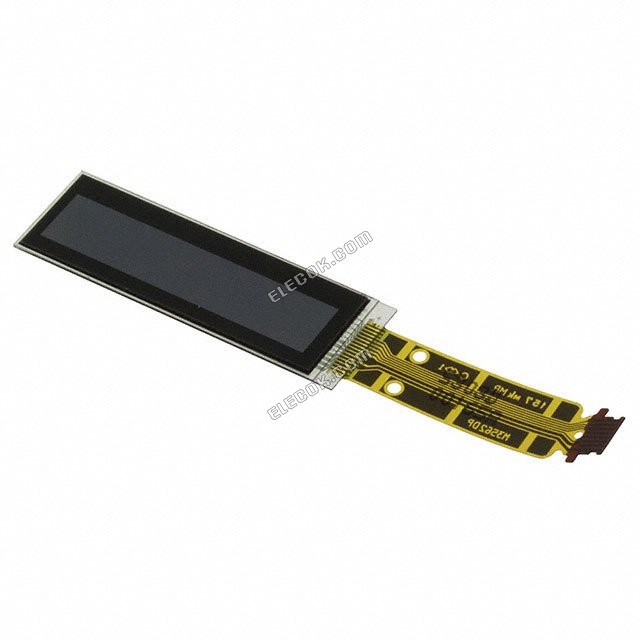

LS012B7DD01 SHARP 1.2" Cg-silicon, Panel
| Data Sheet | LS012B7DD01 SHARP 1.2" Cg-silicon, Panel |
| Model | LS012B7DD01 |
| Manufacturer | Sharp Microelectronics |
| Description | LCD TFT 1.17" 184X38 FPC |
| Viewing Area | 29.07mm W x 6.00mm H |
| Touchscreen | - |
| Series | - |
| Other Names | 425-2900 LS012B7DD01-ND |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Interface | Serial |
| Graphics Color | White |
| Dot Size | - |
| Dot Pixels | 184 x 38 |
| Dot Pitch | 0.16mm W x 0.16mm H |
| Display Type | TFT - Monochrome |
| Display Mode | Transflective |
| Diagonal Screen Size | 1.2" (30.48mm) |
| Detailed Description | Graphic LCD Display Module Transflective White TFT - Monochrome Serial 1.2" (30.48mm) 184 x 38 |
| Backlight | - |
| Background Color | Black |
| Other Name | LS0L2B7DD0L 1S012B7DD01 LSO12B7DDO1 |
SHARP LS012B7DD01 Basic Information
| Panel Brand | SHARP |
|---|---|
| Panel Model | LS012B7DD01 |
| Panel Type | CG-Silicon , Panel |
| Application | Electronic Price Tag |
| Operating Temperature | -10 ~ 70 °C |
| Storage Temperature | -20 ~ 80 °C |
| RoHS | RoHS Compliance |
| Specific Feature | Transflective Sunlight Readable Bar Display |
SHARP LS012B7DD01 Mechanical Features
| Panel Size | 1.2" |
|---|---|
| Dot Resolution | 184×38 |
| Pixel Configuration | Rectangle |
| Pixel Density | 160 PPI |
| Aspect Ratio | >5:2 (H:V) |
| Form Factor | Flat Display |
| Pixel Pitch | 0.158×0.158 mm (H×V) |
| Surface | Hard coating (3H) |
| Active Area | 29.072×6.004 mm (H×V) |
| Outline Dimension | 35.1×11.0 mm (H×V) |
| Outline Depth | 0.741 mm |
| Touch Panel | Without |
SHARP LS012B7DD01 Optical Features
| Display Mode | Normally White, Transflective |
|---|---|
| Contrast Ratio | 22:1 (Typ.) (Reflective) |
| Display Color | Monochrome (1-bit) |
| Transmissivity (%) | 0.25% (Typ.) |
| Reflectance Ratio (%) | 12/15% (Min./Typ.) |
| Sunlight Readable | Sunlight Readable |
SHARP LS012B7DD01 Electronics Feature
| Vertical Frequency | 60Hz |
|---|
SHARP LS012B7DD01 Backlight System
| Lamp Type | No B/L |
|---|
SHARP LS012B7DD01 Signal Interface
| Signal Category | SPI |
|---|---|
| Signal Class | 3-wire SPI |
| Input Voltage for Panel | 3.0V (Typ.) |
| Interface Type | FPC |
| Interface Pin Pitch | 0.5 mm |
| Interface Amount | 1 pcs |
| Interface Pins | 8 pins |
