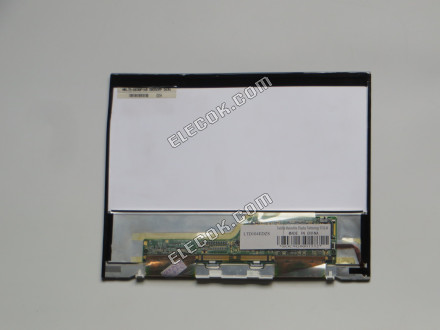

LTD104EDZS 10.4" LTPS TFT-LCD,Panel for Toshiba Matsushita

$93.98

LTD104EDZS 10.4" LTPS TFT-LCD,Panel for Toshiba Matsushita

Data Sheet LTD104EDZS 10.4" LTPS TFT-LCD,Panel for Toshiba
Panel Brand Toshiba Matsushita
Panel Model LTD104EDZS
Panel Type LTPS TFT-LCD,Panel
Panel Size 10.4
Resolution 1024(RGB)×768 (XGA)
Display Mode TN, Normally White, Transmissive
Surface Antiglare
Brightness 245 cd/m2 (Typ.)
Contrast Ratio 250 : 1 (Typ.) (Transmissive)
Display Colors 262K (6-bit)
Response Time 40/40 (Max.)(Tr/Td) (ms)
Viewing Angle
Frequency
Lamp Type WLED
Signal Interface LVDS (1 ch, 6-bit)
Input Voltage 3.3V (Typ.)
RoHS
Application Laptop PC
Other NameLTDL04EDZS
1TD104EDZS
LTD1O4EDZS
LTD104EDZS 10.4" LTPS TFT-LCD,Panel for Toshiba Matsushita
LTD104EDZS 10.4" LTPS TFT-LCD,Panel for Toshiba Matsushita
LTD104EDZS 10.4" LTPS TFT-LCD,Panel for Toshiba Matsushita

LTD104EDZS 10.4" LTPS TFT-LCD,Panel for Toshiba Matsushita

Toshiba Matsushita LTD104EDZS Basic Information
Panel Brand Toshiba Matsushita
Panel Model LTD104EDZS
Panel Type LTPS TFT-LCD,Panel
Application Laptop
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C
Specific Feature Antiglare Sureface White LED Backlight

LTD104EDZS 10.4" LTPS TFT-LCD,Panel for Toshiba Matsushita

Toshiba Matsushita LTD104EDZS Mechanical Features
Panel Size 10.4"
Dot Resolution 1024(RGB)×768 (XGA)
Aspect Ratio 4:3 (W:H)
Pixel Configuration RGB Vertical Stripe
Pixel Pitch 0.2055×0.2055 mm (W×H)
Surface Antiglare
Active Area 210.432×157.824 mm (W×H)
Outline Dimension 219.1×173.8 mm (W×H)
Outline Depth 2.6/6.3 (Typ./Max.) mm
Holes & Brackets Without
Touch Panel Without

LTD104EDZS 10.4" LTPS TFT-LCD,Panel for Toshiba Matsushita

Toshiba Matsushita LTD104EDZS Optical Features
Display Mode TN, Normally White, Transmissive
Brightness 245 cd/m2 (Typ.)
Contrast Ratio 250 : 1 (Typ.) (Transmissive)
Display Color 262K (6-bit)
Response Time 40/40 (Max.)(Tr/Td)

LTD104EDZS 10.4" LTPS TFT-LCD,Panel for Toshiba Matsushita

Toshiba Matsushita LTD104EDZS Electronics Feature
Total Power Consumption 2.3W (Typ.)

LTD104EDZS 10.4" LTPS TFT-LCD,Panel for Toshiba Matsushita

Toshiba Matsushita LTD104EDZS Backlight System
Lamp Position Edge light type
Lamp Type WLED
Lamp Amount 9S4P
Lamp Shape 4 strings
Lamp Voltage
Lamp Current 15mA (Typ.)
Lamp Driver Board No
Interface Type Included in panel signal interface

LTD104EDZS 10.4" LTPS TFT-LCD,Panel for Toshiba Matsushita

Toshiba Matsushita LTD104EDZS Signal Interface
Signal Category LVDS
Signal Class LVDS (1 ch, 6-bit)
Input Voltage for Panel 3.3V (Typ.)
Input Current for Panel 165/215mA (Typ./Max.)
Interface Type Connector
Interface Brand I-PEX
Interface Model 20347-025E-02
Interface Amount 1 pcs
Interface Pins 25 pins
