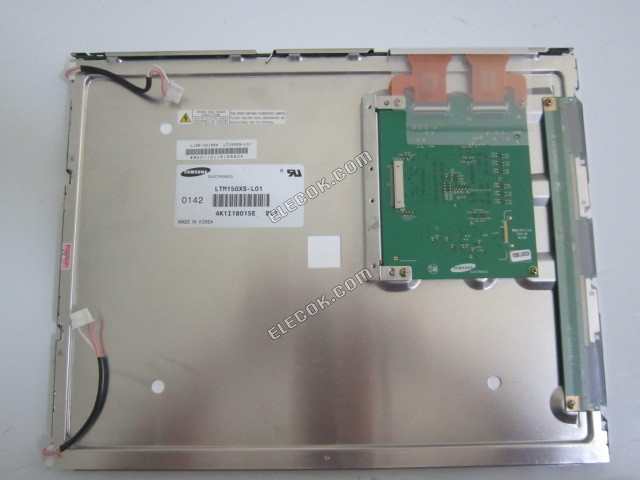

LTM150XS-L01 15.0" a-Si TFT-LCD Panel for SAMSUNG
| Data Sheet | LTM150XS-L01 15.0" a-Si TFT-LCD Panel for |
| Panel Brand | SAMSUNG |
| Panel Model | LTM150XS-L01 |
| Panel Type | a-Si TFT-LCDPanel |
| Panel Size | 15.0" |
| Resolution | 1024(RGB)×768 (XGA) |
| Display Mode | TN, Normally White, Transmissive |
| Surface | Antiglare (Haze 12%), Hard coating (3H) |
| Brightness | 200 cd/m2 (Typ.) |
| Contrast Ratio | 300 : 1 (Typ.) (Transmissive) |
| Display Colors | 16.2M (6-bit + FRC) |
| Response Time | 10/35 (Typ.)(Tr/Td) (ms) |
| Viewing Angle | 75/75/55/60 (Typ.)(CR?10) (L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | CCFL |
| Signal Interface | LVDS (1 ch, 8-bit) |
| Input Voltage | 3.3V (Typ.) |
| Other Name | LTML50XS-L0L 1TM150XS-101 LTM15OXS-LO1 |
| SAMSUNG LTM150XS-L01 Basic Information | |
|---|---|
| Panel Brand | SAMSUNG |
| Panel Model | LTM150XS-L01 |
| Panel Type | a-Si TFT-LCD,Panel |
| Application | Desktop Monitor |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -25 ~ 60 °C |
| RoHS | None RoHS |
| Specific Feature | Antiglare Sureface Lamp life &ge 50K hours |
| SAMSUNG LTM150XS-L01 Mechanical Features | |
|---|---|
| Panel Size | 15.0" |
| Dot Resolution | 1024(RGB)×768 (XGA) |
| Aspect Ratio | 4:3 (W:H) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Pitch | 0.297×0.297 mm (W×H) |
| Surface | Antiglare (Haze 12%), Hard coating (3H) |
| Active Area | 304.1×228.1 mm (W×H) |
| Bezel Area | 308.2×232.1 mm (W×H) |
| Outline Dimension | 331.3×257.9 mm (W×H) |
| Outline Depth | 16.4 (Max.) mm |
| Touch Panel | No |
| SAMSUNG LTM150XS-L01 Optical Features | |
|---|---|
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 200 cd/m2 (Typ.) |
| Contrast Ratio | 300 : 1 (Typ.) (Transmissive) |
| Display Color | 16.2M (6-bit + FRC) |
| Response Time | No |
| Viewing Angle | 75/75/55/60 (Typ.)(CR?10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| SAMSUNG LTM150XS-L01 Electronics Feature | |
|---|---|
| Vertical Frequency | 60Hz |
| Reverse Scan | No |
| SAMSUNG LTM150XS-L01 Backlight System | |
|---|---|
| Lamp Position | Edge light type (Top and Bottom) |
| Lamp Type | CCFL |
| Lamp Amount | 2 pcs |
| Lamp Shape | Straight |
| Lamp Life Time | 50K(Min.) (Hours) |
| Lamp Voltage | No |
| Lamp Current | 6.0mA (Typ.) |
| Lamp Driver Board | No |
| Interface Type | Connector |
| Interface Brand | JST |
| Interface Model | BHR-03VS-1 |
| Interface Pin Pitch | 4.0 mm |
| Interface Amount | 2 pcs |
| Interface Pins | 3 pins |
| Pin Configuration | BLL-3PINS-HNL |
| SAMSUNG LTM150XS-L01 Signal Interface | |
|---|---|
| Signal Category | No |
| Signal Class | No |
| Pin Configuration | LVDS-20P1C8B-020A |
| Input Voltage for Panel | 3.3V (Typ.) |
| Input Current for Panel | 240mA (Typ.) |
| Interface Type | Connector |
| Interface Brand | HRS |
| Interface Model | DF14H-20P-1.25H |
| Interface Pin Pitch | 1.25 mm |
| Interface Amount | 1 pcs |
| Interface Pins | 20 pins |
