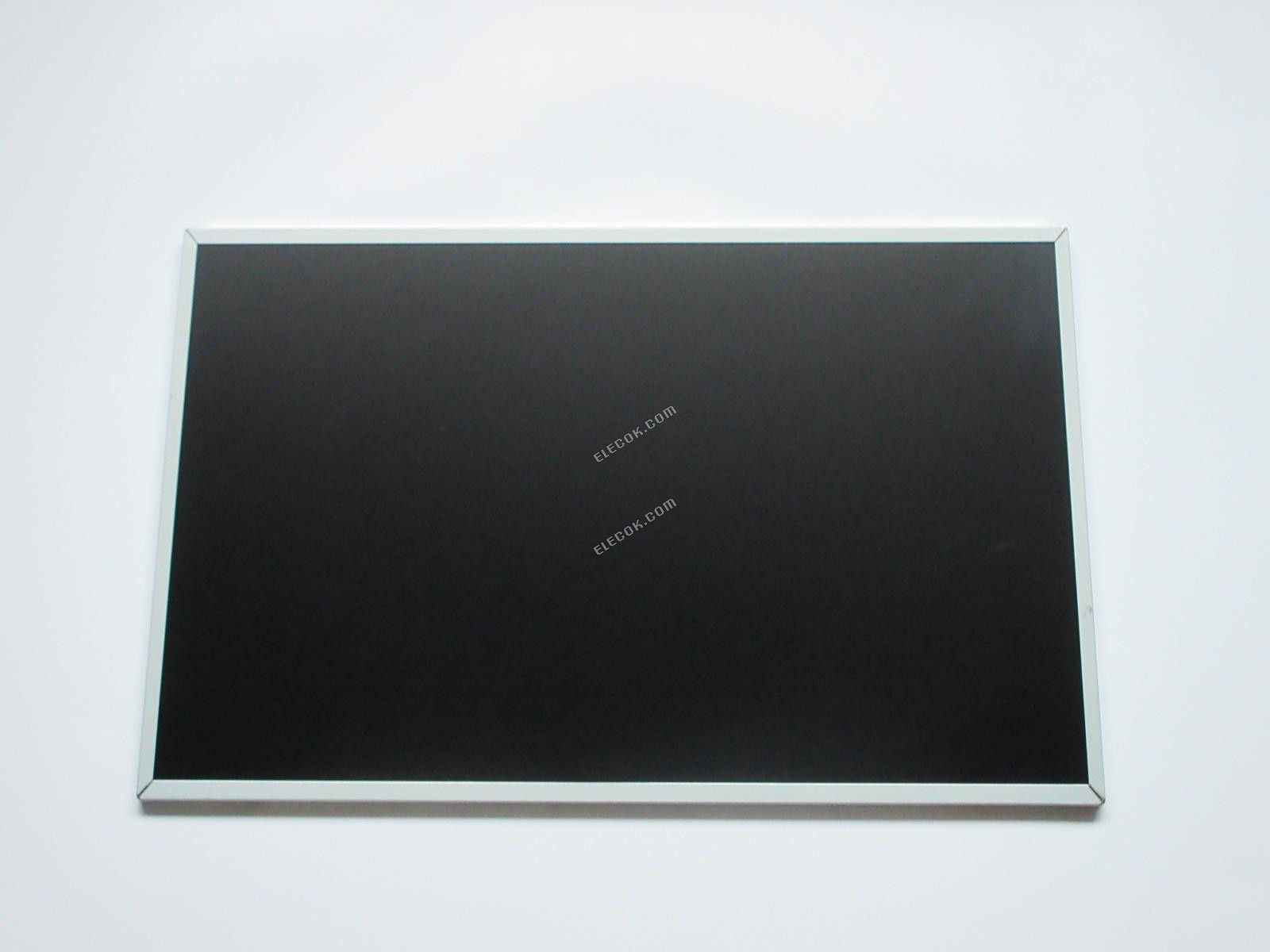

LTM220MT12 22.0" a-Si TFT-LCD,Panel for SAMSUNG, Inventory new
| Data Sheet | LTM220MT12 22.0" a-Si TFT-LCD,Panel for SAMSUNG, |
| Panel Brand | SAMSUNG |
| Panel Model | LTM220MT12 |
| Panel Type | a-Si TFT-LCD,Panel |
| Panel Size | 22.0 |
| Resolution | 1680(RGB)×1050 (WSXGA+) |
| Display Mode | TN, Normally White, Transmissive |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 250 cd/m2 (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
| Display Colors | 16.7M (6-bit + Hi-FRC) |
| Response Time | 5 (Typ.)(Tr+Td) (ms) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR?10) (L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLED |
| Signal Interface | LVDS (2 ch, 8-bit) |
| Input Voltage | 5.0V (Typ.) |
| RoHS | RoHS Compliance |
| Application | Desktop Monitor |
| Other Name | LTM220MTL2 1TM220MT12 LTM22OMT12 |
LTM220MT12 22.0" a-Si TFT-LCD,Panel for SAMSUNG
| SAMSUNG LTM220MT12 Basic Information | |
|---|---|
| Panel Brand | SAMSUNG |
| Panel Model | LTM220MT12 |
| Panel Type | a-Si TFT-LCD,Panel |
| Application | Desktop Monitor |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| RoHS | RoHS Compliance |
| Specific Feature | High Color Gamut Antiglare Sureface Wide Viewing Angle White LED Backlight Wide Aspect Ratio |
LTM220MT12 22.0" a-Si TFT-LCD,Panel for SAMSUNG
| SAMSUNG LTM220MT12 Mechanical Features | |
|---|---|
| Panel Size | 22.0" |
| Dot Resolution | 1680(RGB)×1050 (WSXGA+) |
| Aspect Ratio | 16:10 (W:H) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Pitch | 0.282×0.282 mm (W×H) |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area | 473.76×296.1 mm (W×H) |
| Touch Panel | Without |
LTM220MT12 22.0" a-Si TFT-LCD,Panel for SAMSUNG
| SAMSUNG LTM220MT12 Optical Features | |
|---|---|
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 250 cd/m2 (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M (6-bit + Hi-FRC) |
| Color Gamut | 72% |
| Response Time | 5 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR?10) (L/R/U/D) |
| White color Chromaticity | X:0.313 Y:0.329 |
| White Variation | 1.33 (Max.)(9 points) |
LTM220MT12 22.0" a-Si TFT-LCD,Panel for SAMSUNG
| SAMSUNG LTM220MT12 Electronics Feature | |
|---|---|
| Vertical Frequency | 60Hz |
| Reverse Scan | No |
LTM220MT12 22.0" a-Si TFT-LCD,Panel for SAMSUNG
| SAMSUNG LTM220MT12 Backlight System | |
|---|---|
| Lamp Position | Edge light type (Bottom side) |
| Lamp Type | WLED |
| Lamp Shape | 3 strings |
| Lamp Life Time | 30K(Min.) (Hours) |
| Lamp Current | 100mA (Typ.) |
| Lamp Driver Board | No |
| Interface Type | Connector |
| Interface Brand | molex |
| Interface Model | 104086-0410 |
| Interface Pin Pitch | 1.25 mm |
| Interface Amount | 1 pcs |
| Interface Pins | 4 pins |
LTM220MT12 22.0" a-Si TFT-LCD,Panel for SAMSUNG
| SAMSUNG LTM220MT12 Signal Interface | |
|---|---|
| Signal Category | LVDS |
| Signal Class | LVDS (2 ch, 8-bit) |
| Input Voltage for Panel | 5.0V (Typ.) |
| Interface Type | Connector |
| Interface Brand | P-TWO |
| Interface Model | 196308-30041 |
| Interface Pin Pitch | 1.0 mm |
| Interface Amount | 1 pcs |
| Interface Pins | 30 pins |
