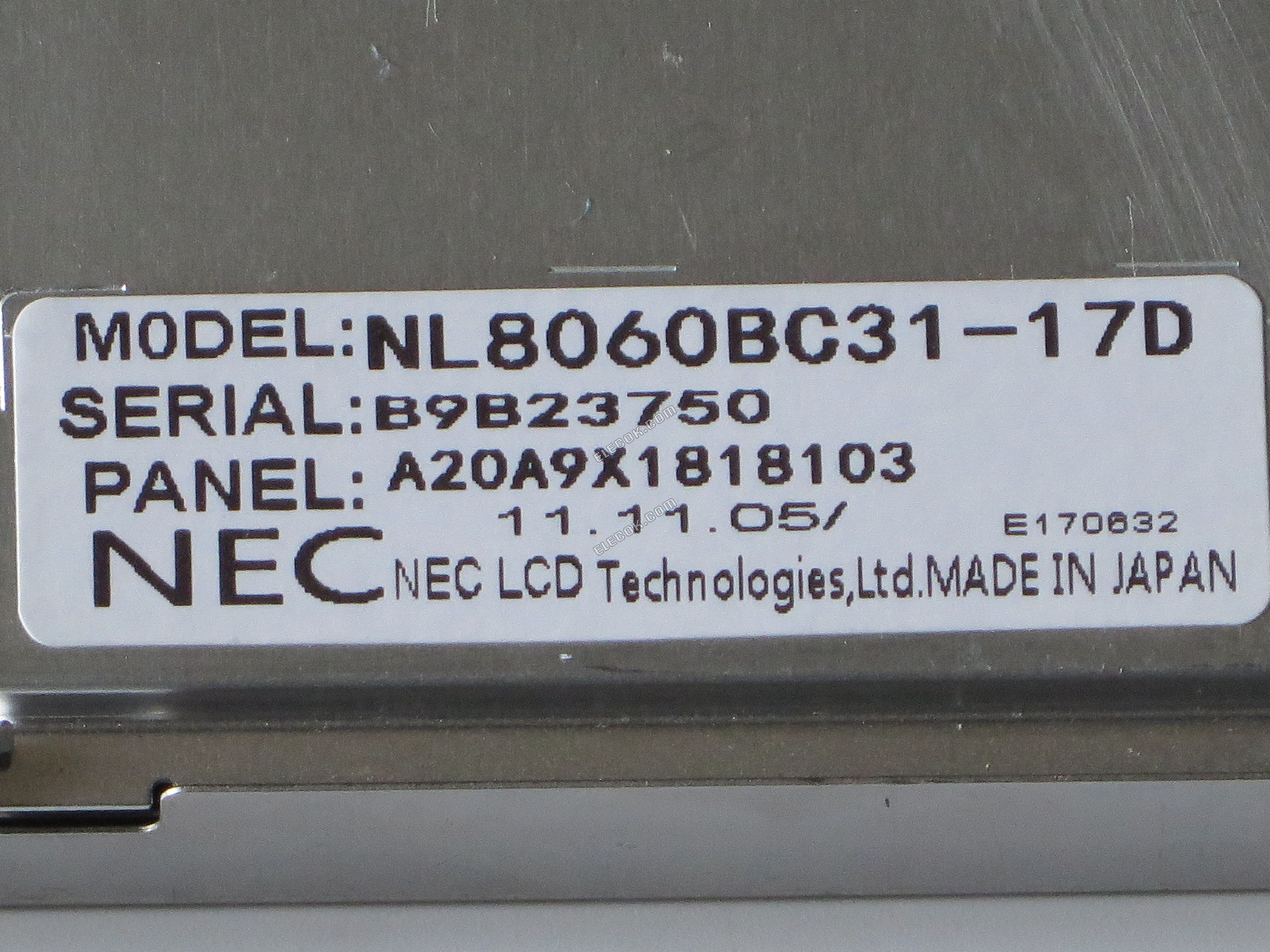

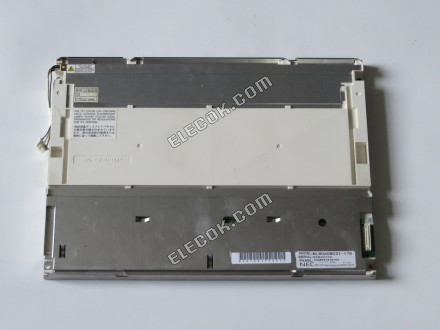

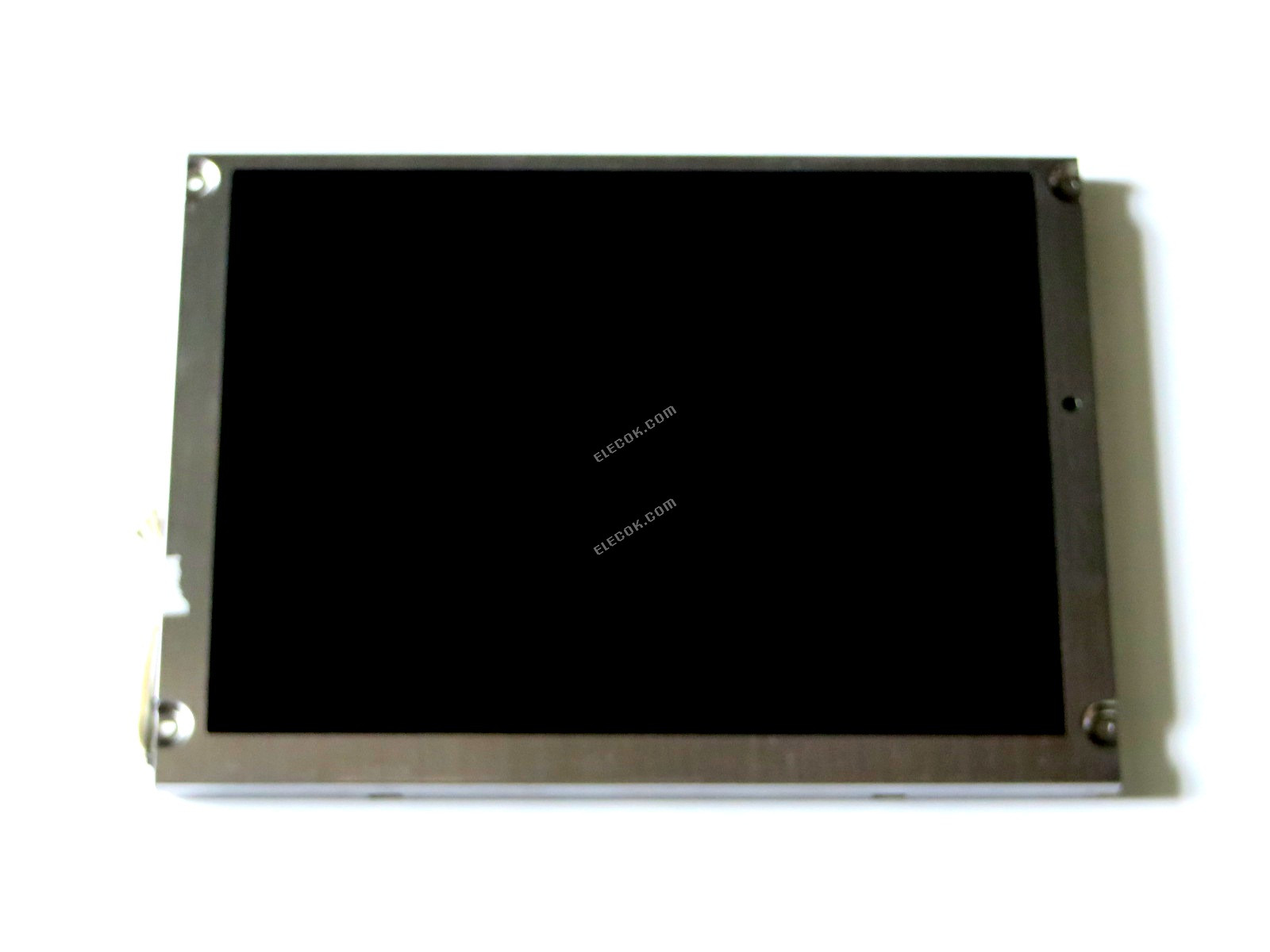

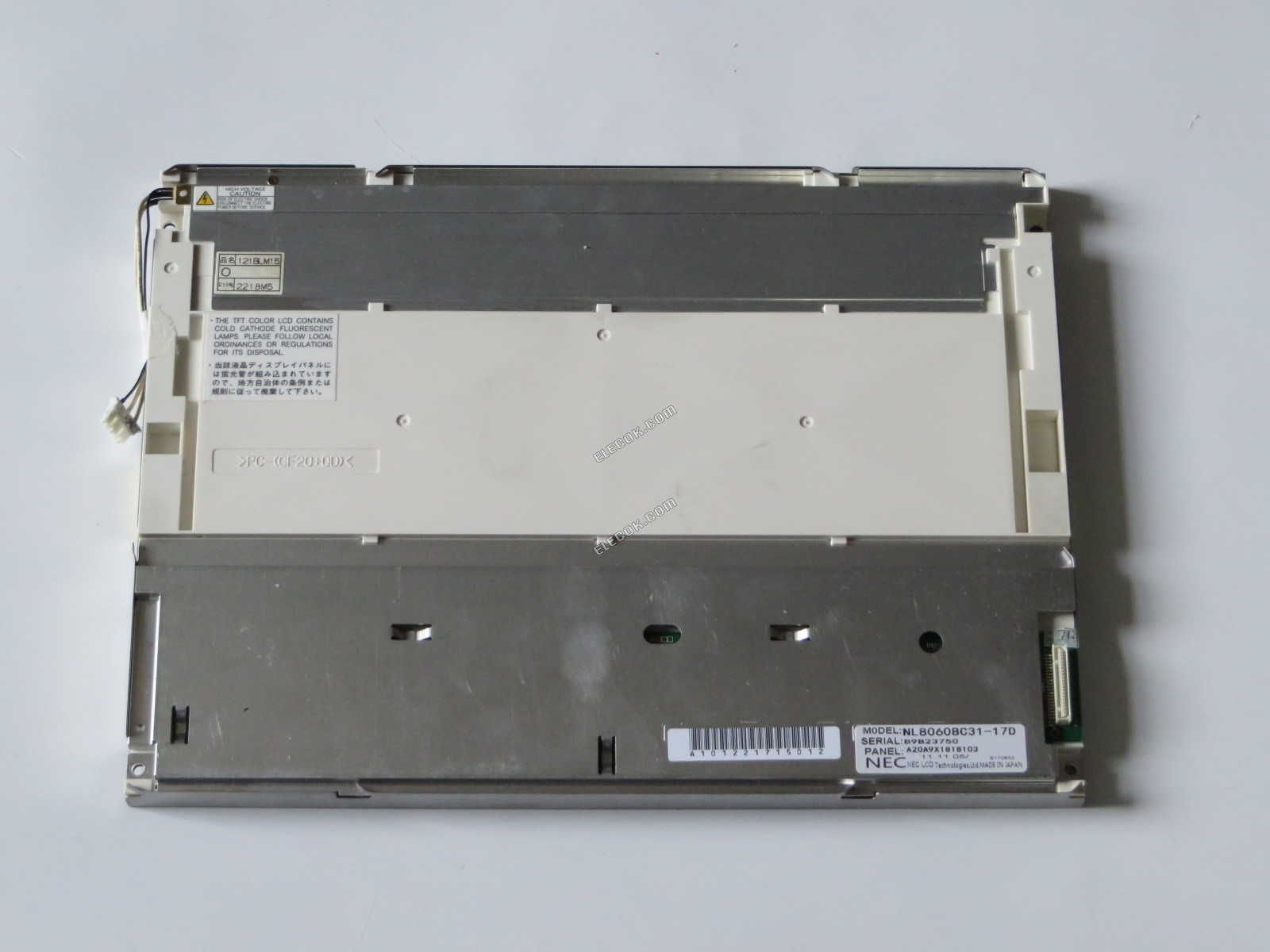

NL8060BC31-17D 12.1" a-Si TFT-LCDPanel for NEC used
Data Sheet | NL8060BC31-17D 12.1" a-Si TFT-LCD Panel for |
Panel Brand | NEC |
Panel Model | NL8060BC31-17D |
Panel Type | a-Si TFT-LCDPanel |
Panel Size | 12.1" |
Resolution | 800(RGB)×600 (SVGA) |
Display Mode | TN, Normally White, Transmissive |
Surface | Antiglare, Hard coating (2H) |
Brightness | 350 cd/m2 (Typ.) |
Contrast Ratio | 350 : 1 (Typ.) (Transmissive) |
Display Colors | 262K (6-bit) |
Response Time | 15/55 (Typ.)(Tr/Td) (ms) |
Viewing Angle | 55/55/40/50 (Typ.)(CR?10) (L/R/U/D) |
Frequency | 60Hz |
Lamp Type | CCFL |
Signal Interface | CMOS (1 ch, 6-bit) |
Input Voltage | 3.3/5.0V (Typ.)(VCC) |



Product cannot use in warranty period because of product quality problems
Product is damaged in transit
Product is not delivered in time because of our reason

Buyers send an email to our customer service([email protected]) to describe the problem, and to provide evidence (clear photos, screenshots, or video)
We will check the problem in 1 working days. For those meet the requirements, free reissue or full refund will be made within 1 working days
If a return is required, the return shipping fee will be paid by us
NL8060BC31-17D 12.1" a-Si TFT-LCD Panel for NEC used
Gross Weight | 1.3 |
---|
