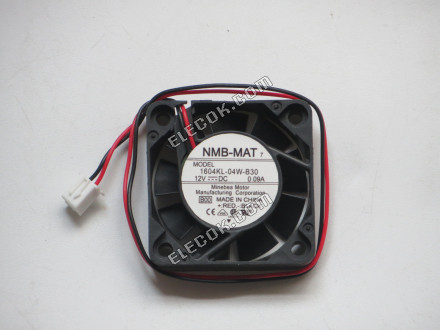

NMB 1604KL-04W-B30-B00 12V 0.09A 0.74W 2wires Cooling Fan
| Data Sheet | NMB 1604KL-04W-B30-B00 12V 0.09A 0.74W 2wires |
| Manufacturer | NMB |
| Part number | 1604KL-04W-B30-B00 |
| other name | 04010KA-12L-AA-00,1604KL-04W-B30-B00-ND,1604KL04WB30B00,1604KL04WB30B00-ND,P15607,16O4KL-O4W-B3O-BOO |
| AC/DC | DC Fans |
| Fan Type | Axial |
| Size | 40 mm x 40 mm x 10 mm |
| Voltage | 12V |
| Current | 0.09A |
| PoWer | 0.74W |
| Termination | 2 wires |
| Speed (RPM) | 4500 |
| Air Flow | 4.2 CFM (0.119 m³/min) |
| Bearing | Ball |
| Shape | Square |
| Series | 1604KL |
| Static Pressure | 0.096 in H2O (23.9 Pa) |
| Noise | 22 dBA |
| Blade_material | Plastic |
| Frame_material | Plastic |
| Other Name | L604KL-04W-B30-B00 1604K1-04W-B30-B00 16O4KL-O4W-B3O-BOO |
