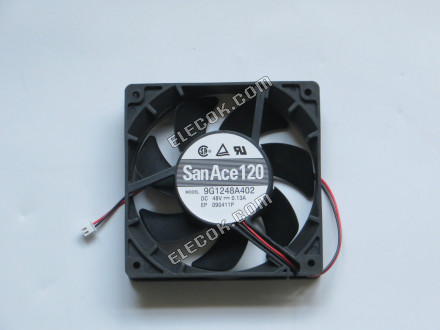

Sanyo 9G1248A402 48V 0.13A 2wires Cooling Fan
| Data Sheet | Sanyo 9G1248A402 48V 0.13A 2wires Cooling |
| Model | 9G1248A402 |
| Manufacturer | Sanyo Denki |
| Description | FAN 120X25MM 48VDC |
| Width | 25.00mm |
| Voltage Range | 40.8 ~ 55.2VDC |
| Voltage - Rated | 48VDC |
| Termination | 2 Wire Leads |
| Static Pressure | 0.309 in H2O (77.0 Pa) |
| Size / Dimension | Square - 119mm L x 119mm H |
| Series | San Ace 120 |
| RPM | 3150 RPM |
| Power (Watts) | 6.24W |
| Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
| Noise | 44.0 dB(A) |
| Material - Frame | Plastic |
| Material - Blade | Plastic |
| Lifetime @ Temp. | 40000 Hrs @ 60°C |
| Ingress Protection | - |
| Features | - |
| Fan Type | Tubeaxial |
| Current Rating | 0.130A |
| Bearing Type | Ball |
| Approvals | CSA, TUV, UL |
| Air Flow | 100.1 CFM (2.80m³/min) |
| Other Name | 9GL248A402 9G1248A4O2 |
In the following cases, we will make a free reissue or full refund
Product cannot use in warranty period because of product quality problems
Product is damaged in transit
Product is not delivered in time because of our reason
Process of free reissue or full refund
Buyers send an email to our customer service to describe the problem, and to provide evidence (clear photos, screenshots, or video)
We will check the problem in 1 working days. For eligible cases, we will provide a free replacement or full refund within 1-2 business days
If a return is required, the return shipping fee will be paid by us
Buyers can apply for return or exchange within 90 days of receipt
Sanyo 9G1248A402 48V 0.13A 2wires Cooling Fan
| Gross Weight | 0.5 |
|---|
