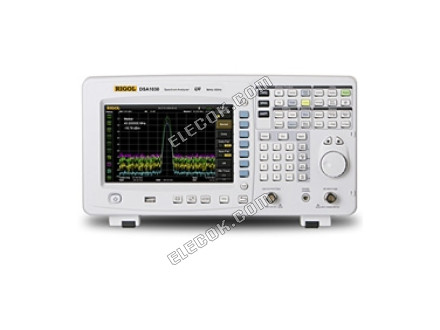

Spectrum Analyzer DSA1030

Spectrum Analyzer DSA1030

$3,136.00
    VISA VISA VISA Mastercard Mastercard Mastercard PayPal PayPal PayPal JCB JCB JCB American Express American Express American Express Diners Club Diners Club Diners Club DISCOVER DISCOVER DISCOVER

    Spectrum Analyzer DSA1030

    Model

    DSA1030

    DSA1020

    Frequency range

    9kHz to 3GHz

    9kHz to 2GHz

    Displayed Average Noise Level

    -138dBm?Typical

    -120dBm?Typical

    Phase noise

    -80dBc/Hz @ 10kHz offset

    Full range accuracy * 1

    1.5dB

    Minimum resolution bandwidth RBW

    100Hz

    Maximum measurement range

    +30dBm

    Product category

    Spectrum Analyzer

    Size

    W x H x D = 399mm X 223mm X 159mm

    Weight

    6.2kg(Without batteries)

    Options

    3GHz tracking generator

    DSA1030-TG3

    NULL

    Preamplifier

    DSA1030-PA

    NULL

    Advanced Measurement Module

    DSA1000-AMK

    NULL

    USB-GPIB adapter module

    USB-GPIB

    11.1V, 147Wh lithium battery

    BAT

    Accessories * 2

    Rack mounting kit

    DSA1000-RMSA

    Front panel protective shell

    DSA1000-FPCS

    Soft Carrying Case

    DSA1000-SCBA

    Support cantilever

    ARM

    Data Sheet Spectrum Analyzer DSA1030
