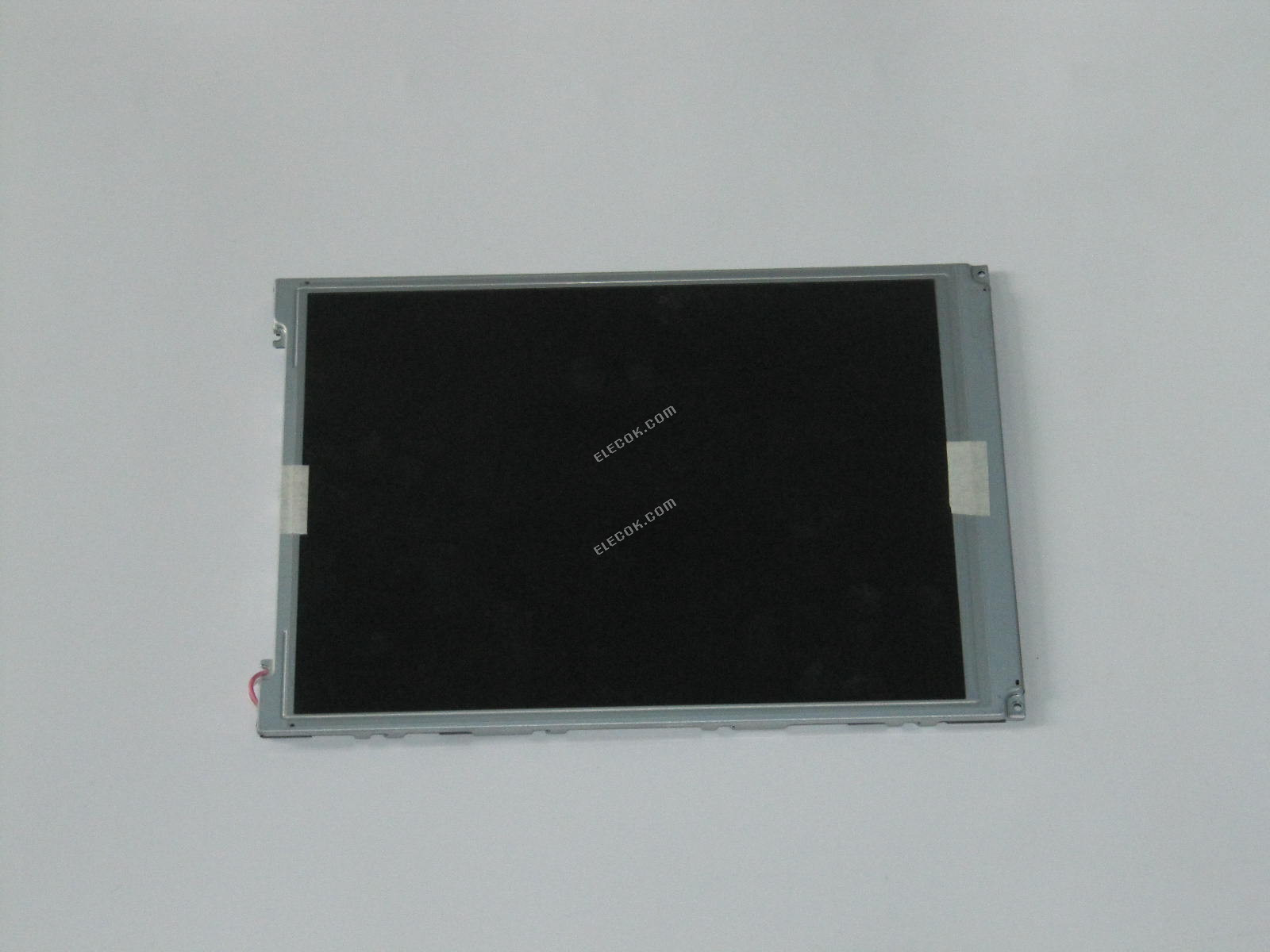

SX25S004 HITACHI 10.0" CSTN Lcd Panel inventory new

SX25S004 HITACHI 10.0" CSTN Lcd Panel inventory new

Price on Request

You may also be interested in the following product(s)

SX25S004 HITACHI 10.0" CSTN Lcd Panel used $248.00
SX25S004 HITACHI 10.0" CSTN Lcd Panel used
VISA VISA VISA Mastercard Mastercard Mastercard PayPal PayPal PayPal JCB JCB JCB American Express American Express American Express Diners Club Diners Club Diners Club DISCOVER DISCOVER DISCOVER

SX25S004 HITACHI 10.0" CSTN Lcd Panel inventory new

Data Sheet SX25S004 HITACHI 10.0" CSTN Lcd Panel inventory new
Panel BrandHITACHI
Panel ModelSX25S004
Panel TypeCSTN-LCDPanel
Panel Size10.0"
Resolution800(RGB)×600 (SVGA)
Display ModeSTN, Transmissive
SurfaceAntiglare, Hard coating (3H)
Brightness100 cd/m2 (Typ.)
Contrast Ratio50 : 1 (Typ.) (Transmissive)
Display ColorsColor
Response Time170/130 (Typ.)(Tr/Td) (ms)
Viewing Angle40 (Typ.)(?2-?1)(CR?2) (L/R/U/D)
Frequency120Hz
Lamp TypeCCFL
Signal InterfaceParallel Data (8-bit)
Input Voltage3.3V (Typ.)
Other NameSX25SOO4
SX25S004 HITACHI 10.0" CSTN Lcd Panel inventory new
SX25S004 HITACHI 10.0" CSTN Lcd Panel inventory new
SX25S004 HITACHI 10.0" CSTN Lcd Panel inventory new
HITACHI SX25S004 Basic Information
Panel Brand HITACHI
Panel Model SX25S004
Panel Type CSTN-LCD,Panel
Application Industrial Application
Operating Temperature 5 ~ 40 °C
Storage Temperature -20 ~ 60 °C
RoHS None RoHS
Specific Feature Antiglare Sureface 120Hz Scan
HITACHI SX25S004 Mechanical Features
Panel Size 10.0"
Dot Resolution 800(RGB)×600 (SVGA)
Aspect Ratio 4:3 (W:H)
Pixel Configuration RGB Vertical Stripe
Pixel Pitch 0.2535×0.2535 mm (W×H)
Surface Antiglare, Hard coating (3H)
Active Area 202.775×152.075 mm (W×H)
Bezel Area 207.0×156.0 mm (W×H)
Outline Dimension 236.0×168.0 mm (W×H)
Outline Depth 6.3 (Max.) mm
Touch Panel Without
HITACHI SX25S004 Optical Features
Display Mode STN, Transmissive
Brightness 100 cd/m2 (Typ.)
Contrast Ratio 50 : 1 (Typ.) (Transmissive)
Display Color Color ()
Response Time 80 (Typ.)(Tr+Td)
Viewing Angle 40 (Typ.)(?2-?1)(CR?2) (L/R/U/D)
Viewing Direction 12 o'clock
White color Chromaticity X:0.310 Y:0.320
HITACHI SX25S004 Electronics Feature
Vertical Frequency 120Hz
Reverse Scan No
HITACHI SX25S004 Backlight System
Lamp Position Edge light type
Lamp Type CCFL
Lamp Amount 1 pcs
Lamp Shape Straight
Lamp Voltage No
Lamp Current 3.5/5.0/5.5mA (Min./Typ./Max.)
Lamp Operating Frequency 50/60KHz (Min./Typ.)
Lamp Startup Voltage 1500V (Min.)(Ta=+5?)
Lamp Driver Board No
Interface Type Connector
Interface Brand JST
Interface Model BHSR-02VS-1
Interface Pin Pitch 3.5 mm
Interface Amount 1 pcs
Interface Pins 2 pins
Pin Configuration BLL-2PINS-HL
HITACHI SX25S004 Signal Interface
Signal Category Analog
Signal Class LVDS (1 ch, 6-bit)
Input Voltage for Panel 3.3V (Typ.)
Input Current for Panel 120/200mA (Typ./Max.)
Interface Type Connector
Interface Brand molex
Interface Model SD-53729-040*
Interface Amount 1 pcs
Interface Pins 40 pins
