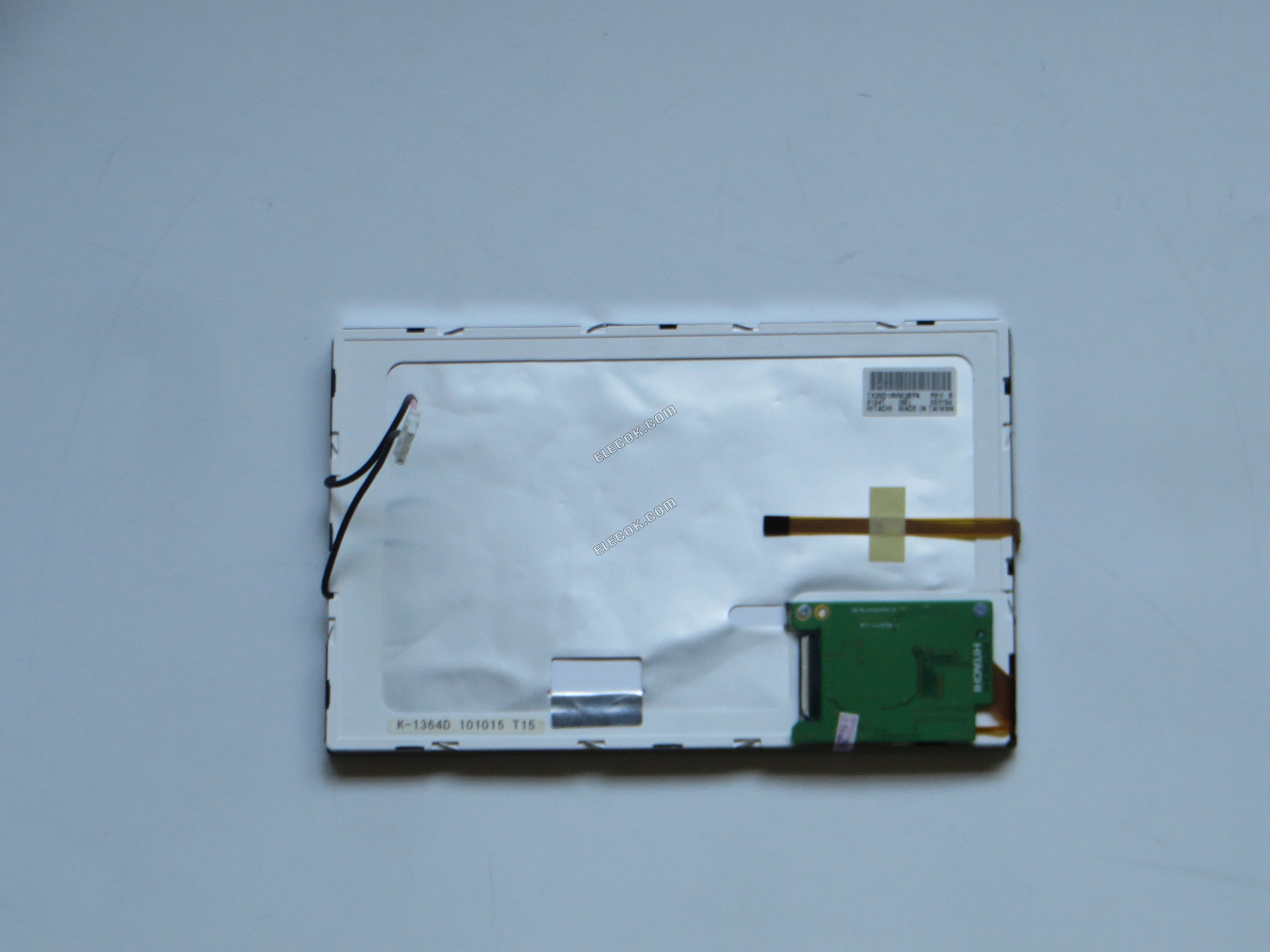

TX20D18VM2BPA HITACHI 8.0" LTPS TFT-LCD Panel with touch screen, new

TX20D18VM2BPA HITACHI 8.0" LTPS TFT-LCD Panel with touch screen, new

$206.98
    VISA VISA VISA Mastercard Mastercard Mastercard PayPal PayPal PayPal JCB JCB JCB American Express American Express American Express Diners Club Diners Club Diners Club DISCOVER DISCOVER DISCOVER

    TX20D18VM2BPA HITACHI 8.0" LTPS TFT-LCD Panel with touch screen, new

    Data Sheet TX20D18VM2BPA HITACHI 8.0" LTPS TFT-LCD Panel with touch screen, new
    Panel BrandHITACHI
    Panel ModelTX20D18VM2BPA
    Panel TypeLTPS TFT-LCD , Panel
    Panel Size8.0
    Resolution800(RGB)×480 , WVGA
    Display ModeTN, Normally White, Transmissive
    Active Area174×104.4 mm
    Outline189×120×12.3 mm
    SurfaceAntiglare, Hard coating (3H)
    Brightness280 cd/m² (Typ.)
    Contrast Ratio200:1 (Typ.)
    Display Colors262K (6-bit) , CIE1931 60%
    Response Time20/10 (Typ.)(Tr/Td)
    Viewing Angle50/50/50/50 (Typ.)(CR≥10) (L/R/U/D)
    Frequency60Hz
    Lamp Type1 pcs CCFL Without Driver
    Signal InterfaceParallel RGB (1 ch, 6-bit) , 40 pins
    Input Voltage3.3V (Typ.)
    RoHSRoHS Compliance
    ApplicationIndustry Application
    Other NameTX20DL8VM2BPA
    TX2OD18VM2BPA
    TX20D18VM2BPA HITACHI 8.0" LTPS TFT-LCD Panel with touch screen, new
    TX20D18VM2BPA HITACHI 8.0" LTPS TFT-LCD Panel with touch screen, new
    TX20D18VM2BPA HITACHI 8.0" LTPS TFT-LCD Panel with touch screen, new

    HITACHI TX20D18VM2BPA Basic Information

    Panel BrandHITACHI
    Panel ModelTX20D18VM2BPA
    Panel TypeLTPS TFT-LCD , Panel
    ApplicationIndustry Application
    Operating Temperature-20 ~ 70 °C
    Storage Temperature-30 ~ 80 °C
    RoHSRoHS Compliance
    Specific FeatureAntiglare Landscape type With Touchscreen Lamp life &ge 50K hours WIDE

    HITACHI TX20D18VM2BPA Mechanical Features

    Panel Size8.0"
    Dot Resolution800(RGB)×480 (WVGA)
    Pixel ConfigurationRGB Vertical Stripe
    Pixel Density116 PPI
    Aspect Ratio15:9 (H:V)
    Form FactorFlat Rectangle Display
    Dot Pitch0.0725×0.2175 mm (H×V)
    Pixel Pitch0.2175×0.2175 mm (H×V)
    SurfaceAntiglare, Hard coating (3H)
    Active Area174×104.4 mm (H×V)
    Bezel Area179.6×110 mm (H×V)
    Outline Dimension189×120 mm (H×V)
    Outline Depth12.3 (Max.) mm
    Landscape or PortraitLandscape type
    Touch PanelEmbeded (4-wire Resistive)

    HITACHI TX20D18VM2BPA Optical Features

    Display ModeTN, Normally White, Transmissive
    Brightness280 cd/m² (Typ.)
    Contrast Ratio200 : 1 (Typ.) (Transmissive)
    Display Color262K (6-bit)
    Color Gamut60% NTSC (CIE1931)
    Response Time20/10 (Typ.)(Tr/Td)
    Viewing Angle50/50/50/50 (Typ.)(CR≥10) (L/R/U/D)
    Viewing Direction12 o'clock
    White color ChromaticityWx:0.300 Wy:0.310
    White Variation1.43 (Max.)(5 points)

    HITACHI TX20D18VM2BPA Electronics Feature

    Vertical Frequency60Hz
    Time Controller (T-CON)Embedded T-CON

    HITACHI TX20D18VM2BPA Backlight System

    Lamp PositionEdge light type
    Lamp TypeCCFL
    Lamp Amount1 pcs
    Lamp ShapeU shape
    Lamp Life Time50K(Typ.) (Hours)
    Lamp Voltage1000V (Max.)
    Lamp Current2.0/4.0mA (Min./Max.)
    Lamp Operating Frequency50/70KHz (Min./Max.)
    Lamp Startup Voltage1400/1600V (Min.)(Ta=+25/0℃)
    Interface TypeConnector
    Backlight InterfaceConfiguration
    BLL-3PINS-HNL
    Lamp Driver BoardNo

    HITACHI TX20D18VM2BPA Signal Interface

    Signal CategoryTTL
    Signal ClassParallel RGB (1 ch, 6-bit)
    Input Voltage for Panel3.3V (Typ.)
    Input Current for Panel300/400mA (Typ./Max.)
    Voltage for Display SignalsVSS≤VIL≤0.8V 2.0V≤VIH≤VDD
    Interface TypeConnector
    Signal InterfaceConfiguration
    DRGB-40P1C6B-440A
