AT050TN33 5.0" a-Si TFT-LCDPanel for INNOLUX
Panel Brand | INNOLUX |
Panel Model | AT050TN33 |
Panel Type | a-Si TFT-LCDPanel |
Panel Size | 5.0" |
Resolution | 480(RGB)×272 (WQVGA) |
Display Mode | TN, Normally White, Transmissive |
Surface | Antiglare |
Brightness | 300 cd/m2 (Typ.) |
Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
Display Colors | 16.7M (8-bit) |
Response Time | 10/15 (Typ.)(Tr/Td) (ms) |
Viewing Angle | 70/70/50/70 (Typ.)(CR?10) (L/R/U/D) |
Frequency | 60Hz |
Lamp Type | WLED |
Signal Interface | Parallel RGB (1 ch, 8-bit) |
Input Voltage | 3.3V (Typ.)(VCC) |
Data Sheet |



Product cannot use in warranty period because of product quality problems
Product is damaged in transit
Product is not delivered in time because of our reason

Buyers send an email to our customer service([email protected]) to describe the problem, and to provide evidence (clear photos, screenshots, or video)
We will check the problem in 1 working days. For those meet the requirements, free reissue or full refund will be made within 1 working days
If a return is required, the return shipping fee will be paid by us

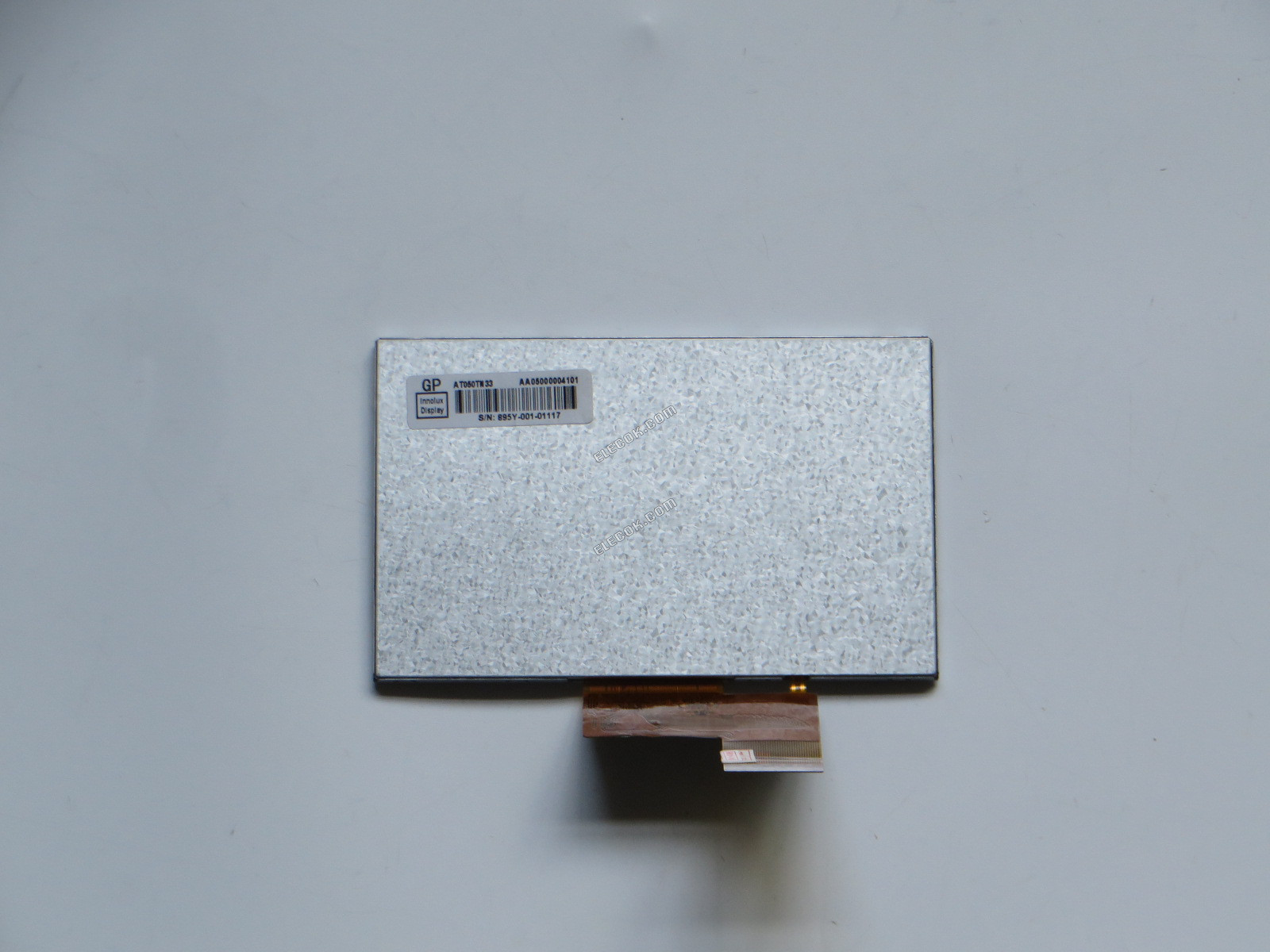

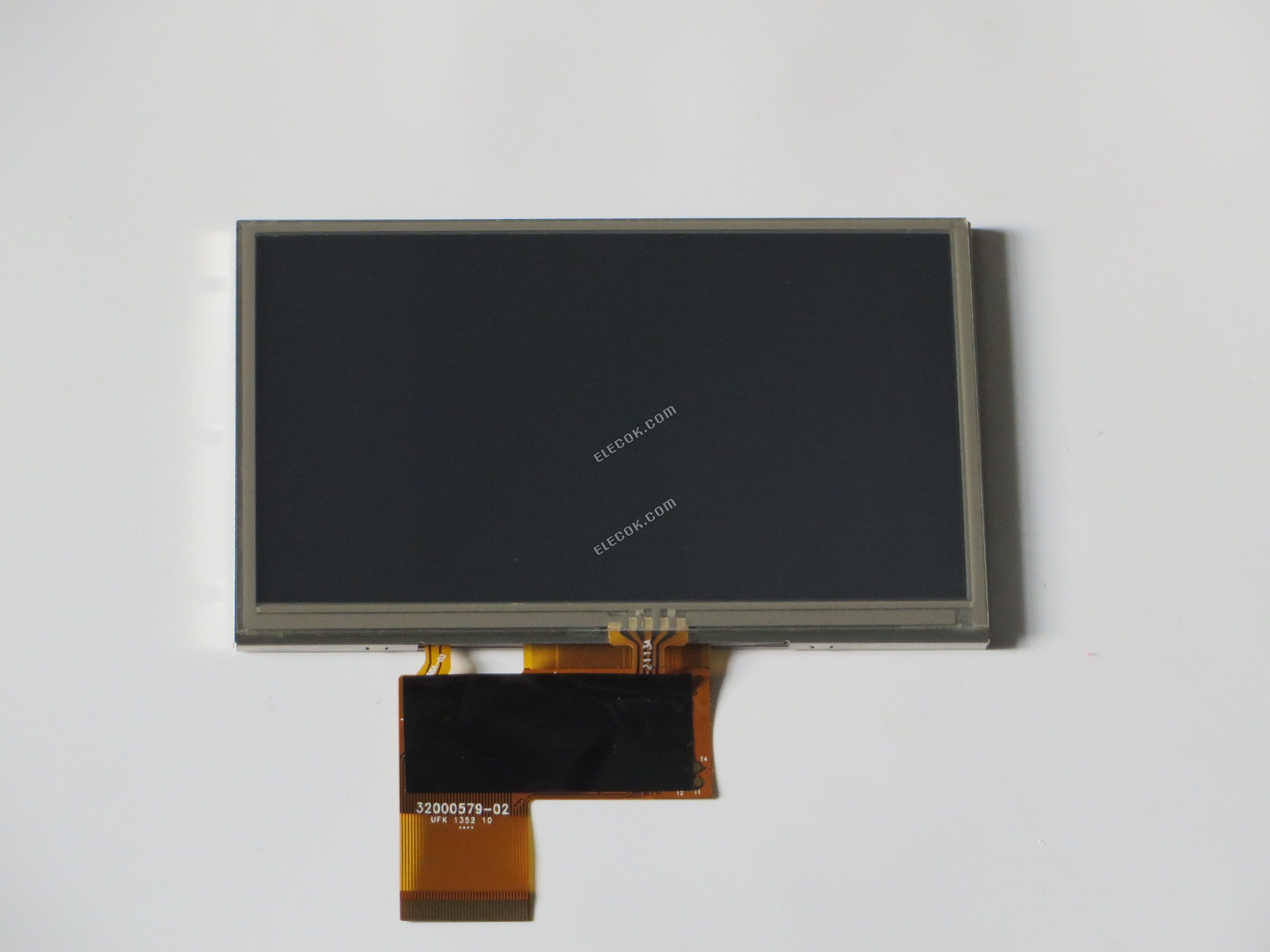

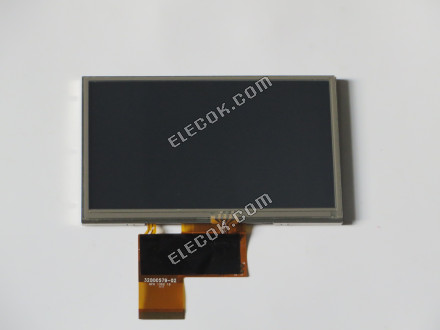

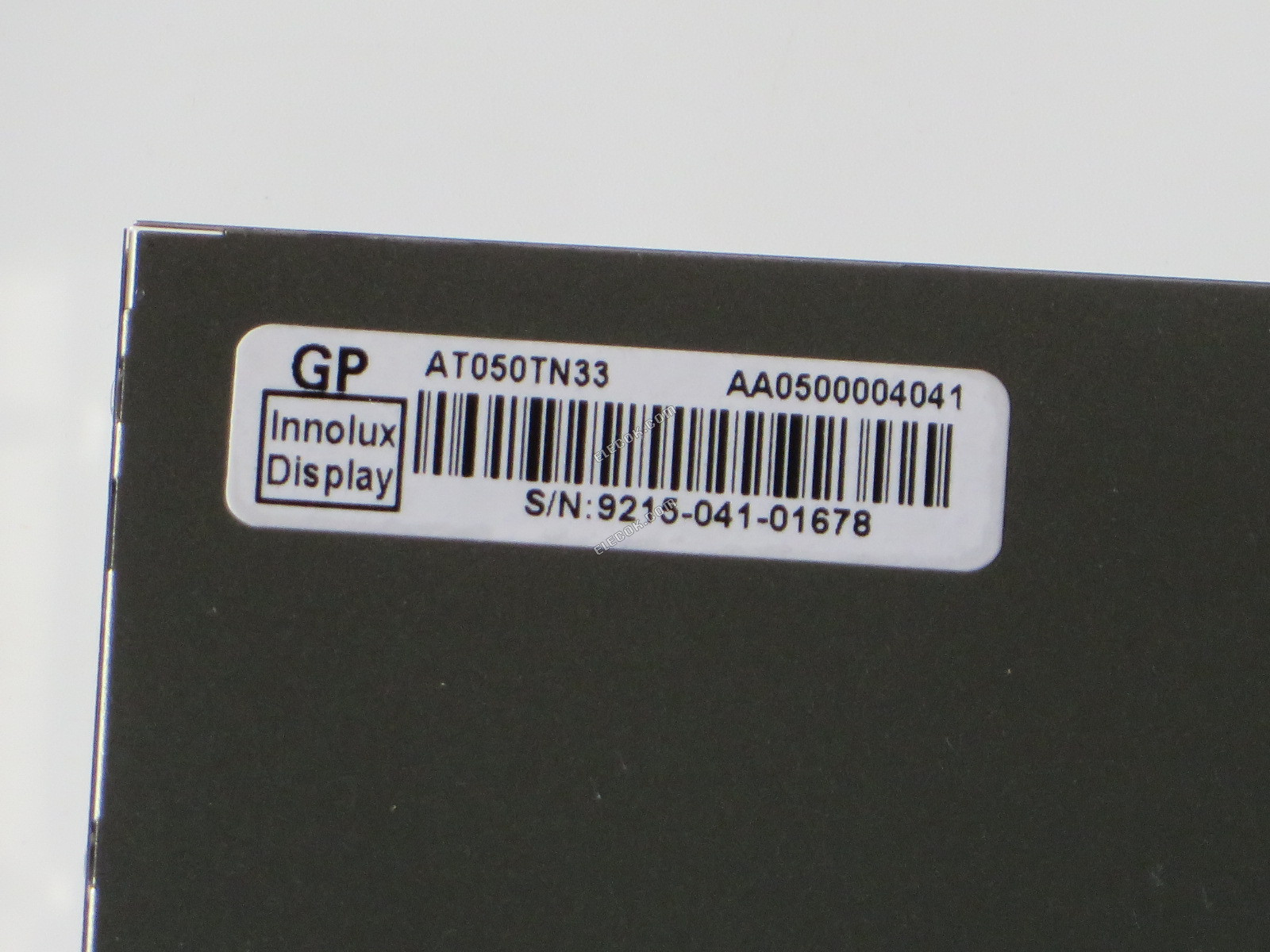

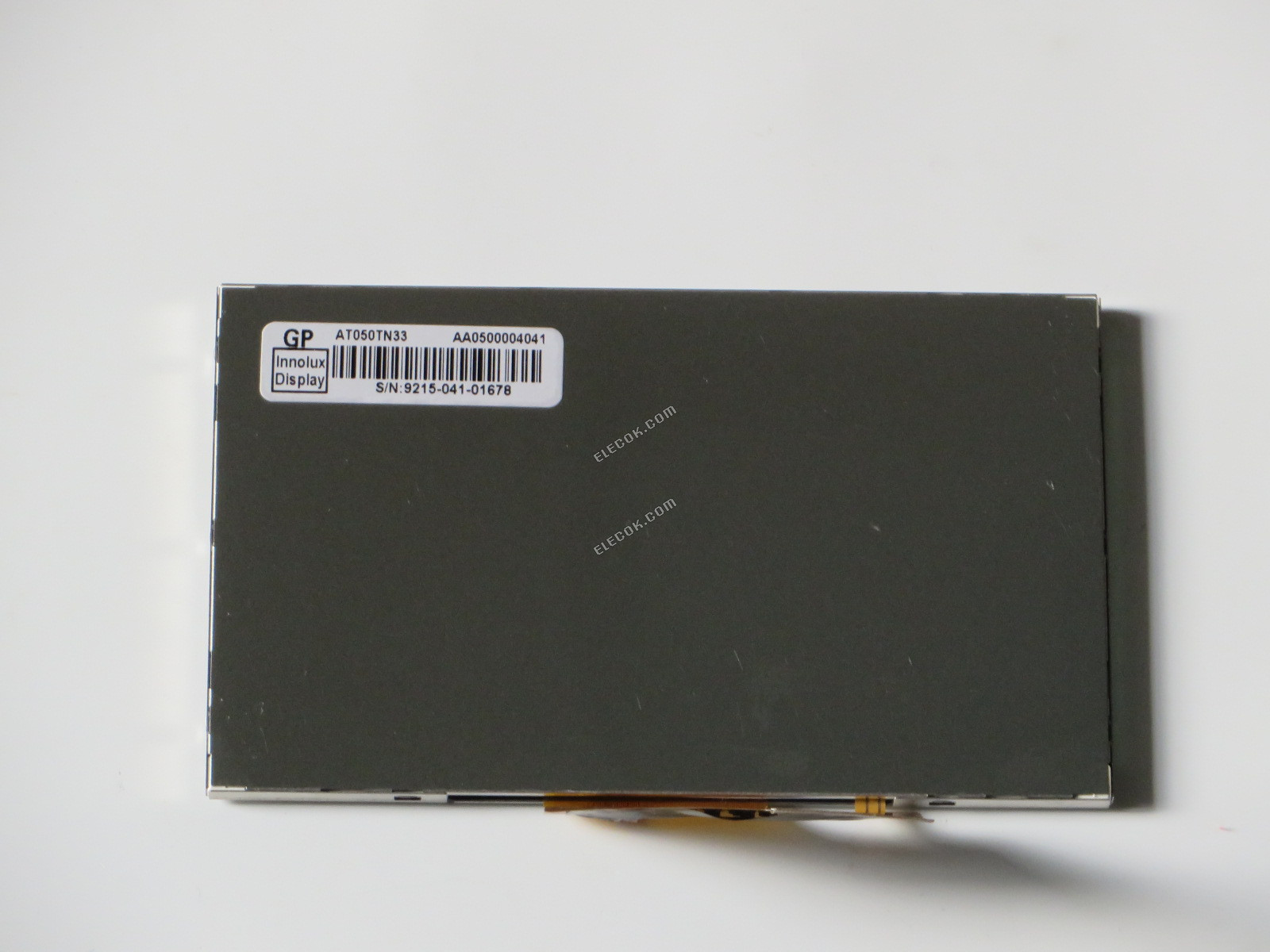

AT050TN33 Innolux 5" LCD Panel For MP4 GPS
Gross Weight | 1 |
---|
