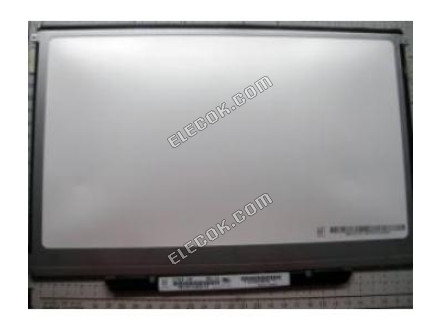

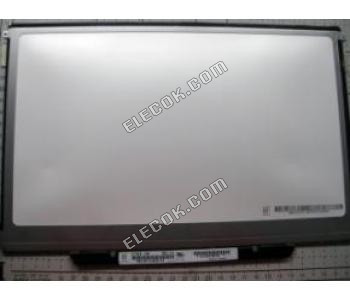

N133I6-L09 13.3" a-Si TFT-LCD Panel for CMO
Data Sheet | N133I6-L09 13.3" a-Si TFT-LCD Panel for CMO |
Panel Brand | CMO |
Panel Model | N133I6-L09 |
Panel Type | a-Si TFT-LCDPanel |
Panel Size | 13.3" |
Resolution | 1280(RGB)×800 (WXGA) |
Display Mode | TN, Normally White, Transmissive |
Surface | Glare (Haze 0%), Hard coating (3H) |
Brightness | 290 cd/m2 (Typ.) |
Contrast Ratio | 600 : 1 (Typ.) (Transmissive) |
Display Colors | 262K (6-bit) |
Response Time | 3/7 (Typ.)(Tr/Td) (ms) |
Viewing Angle | 40/40/30/30 (Typ.)(CR?10) (L/R/U/D) |
Frequency | 60Hz |
Lamp Type | WLED |
Signal Interface | LVDS (1 ch, 6-bit) |
Input Voltage | 3.3V (Typ.) |
Other Name | NL33I6-L09 N133I6-109 N133I6-LO9 |
