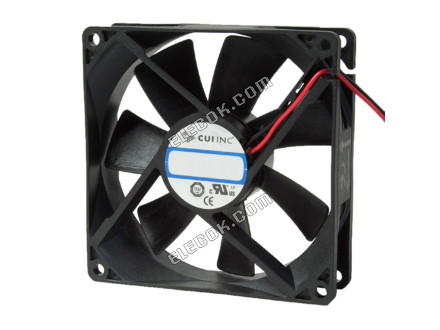

CUI CFM-9225-13-11 DC Fans DC Fan 96.06CFM 6W 12V 92x92x25.4 AR/RD
| Data Sheet | CUI CFM-9225-13-11 DC Fans DC Fan 96.06CFM |
| Model | CFM-9225-13-11 |
| Manufacturer | CUI, Inc. |
| Description | DC AXIAL FAN, 92 MM SQUARE, 25 M |
| Width | 25.40mm |
| Voltage Range | 6 ~ 13.8VDC |
| Voltage - Rated | 12VDC |
| Termination | 3 Wire Leads |
| Static Pressure | 0.369 in H2O (91.9 Pa) |
| Size / Dimension | Square - 92mm L x 92mm H |
| Series | CFM-92 |
| RPM | 4200 RPM |
| Power (Watts) | 6.00W |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 49.8 dB(A) |
| Material - Frame | Polybutylene Terephthalate (PBT) |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Ingress Protection | - |
| Features | Locked Rotor Sensor |
| Fan Type | Tubeaxial |
| Current Rating | 0.400A |
| Bearing Type | Ball |
| Approvals | CE, CUR, TUV, UL |
| Air Flow | 96.1 CFM (2.69m³/min) |
| Other Name | CFM-9225-L3-LL |
In the following cases, we will make a free reissue or full refund
Product cannot use in warranty period because of product quality problems
Product is damaged in transit
Product is not delivered in time because of our reason
Process of free reissue or full refund
Buyers send an email to our customer service to describe the problem, and to provide evidence (clear photos, screenshots, or video)
We will check the problem in 1 working days. For eligible cases, we will provide a free replacement or full refund within 1-2 business days
If a return is required, the return shipping fee will be paid by us
Buyers can apply for return or exchange within 90 days of receipt
CUI CFM-9225-13-11 DC Fans DC Fan 96.06CFM 6W 12V 92x92x25.4 AR/RD
| Gross Weight | 0.5 |
|---|
