Lieferinformationen
Dieses Produkt wird beim Originalhersteller bestellt und als neu gefertigte Ware in Originalverpackung geliefert.
Die voraussichtliche Lieferzeit beträgt üblicherweise 20–40 Wochen; bei knappen Bauteilen kann sie länger sein.
Die Lieferzeit hängt von der Produktionsplanung des Herstellers ab und lässt sich nur schwer genau abschätzen. Wir verfolgen den Fortschritt regelmäßig und bemühen uns um eine frühere Lieferung.
LTM4619EV#PBF Analog Devices Switching Regulators & Controllers - 1 Tray (119 pcs)
| Datenblatt | LTM4619EV#PBF Analog Devices Switching Regulators & Controllers - 1 Tray (119 pcs) |
| Manufacturer | Analog Devices |
| Model | LTM4619EV#PBF |
| Category | Switching Regulators & Controllers |
| Sales Unit | 1 Tray |
| Pack Qty (pcs) | 119 |
| MOQ (pcs) | 119 |
| Order Multiple (pcs) | 119 |

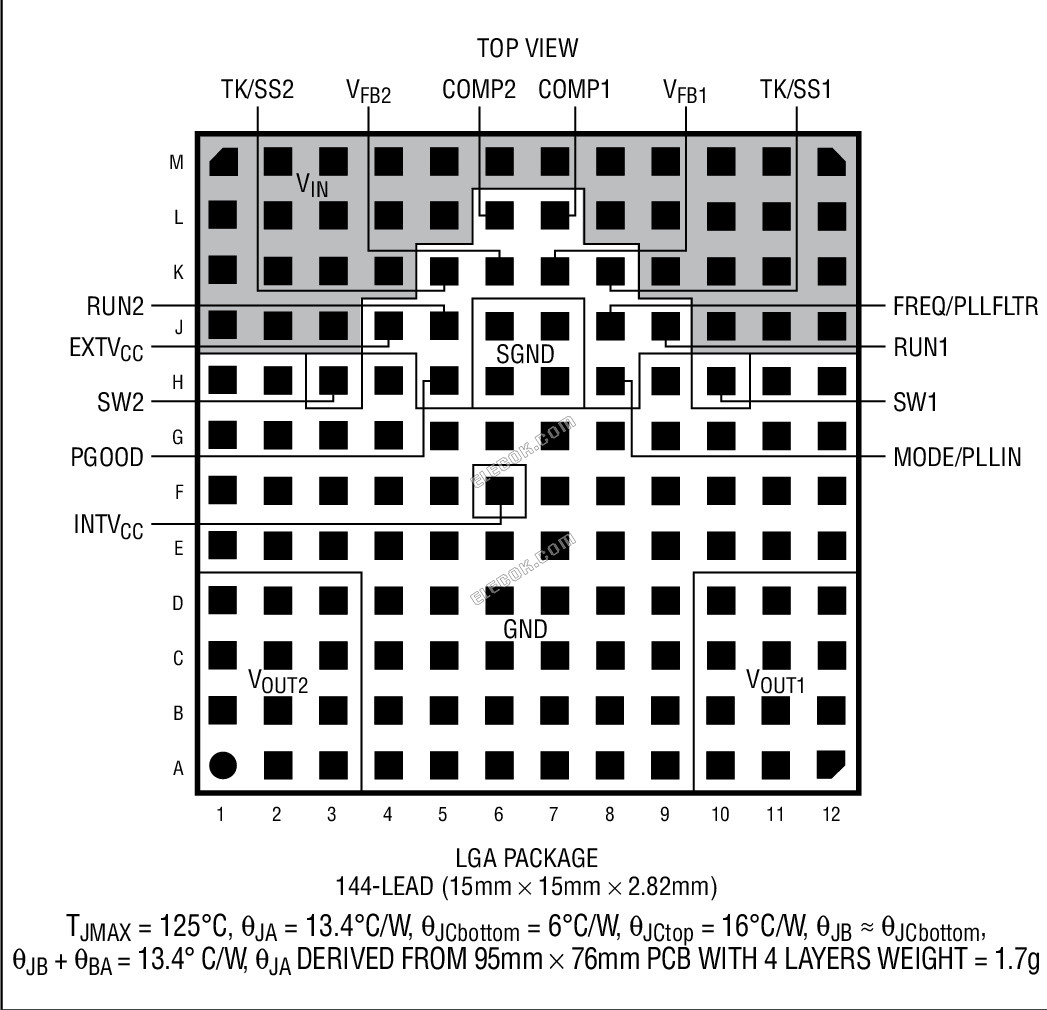

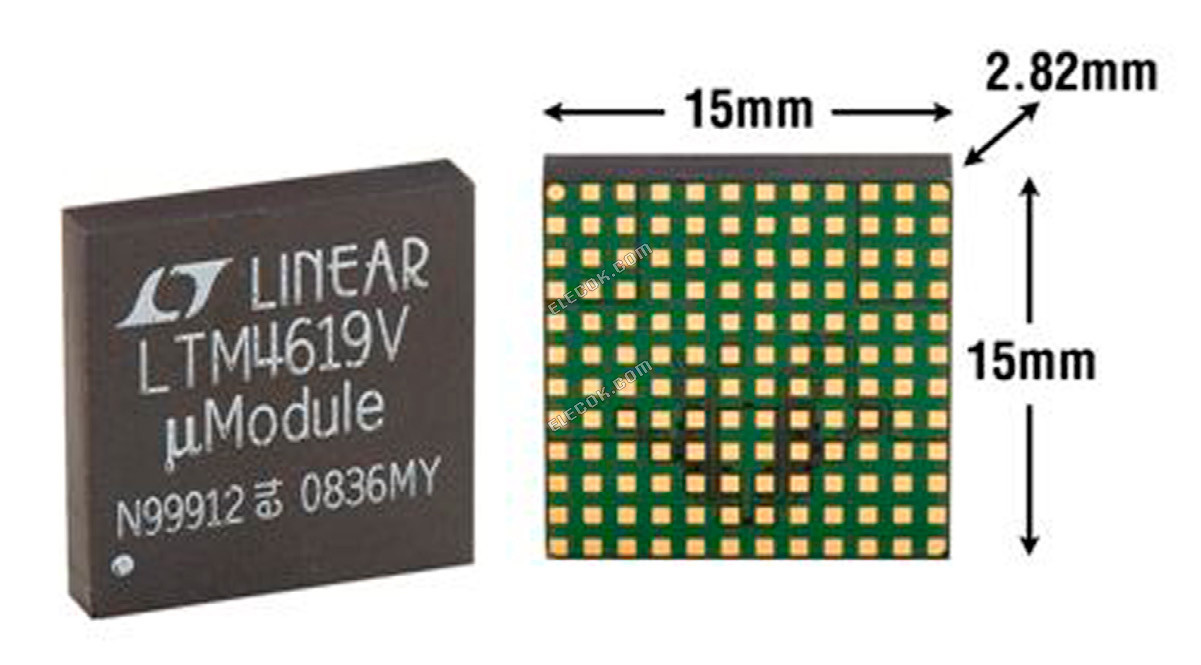

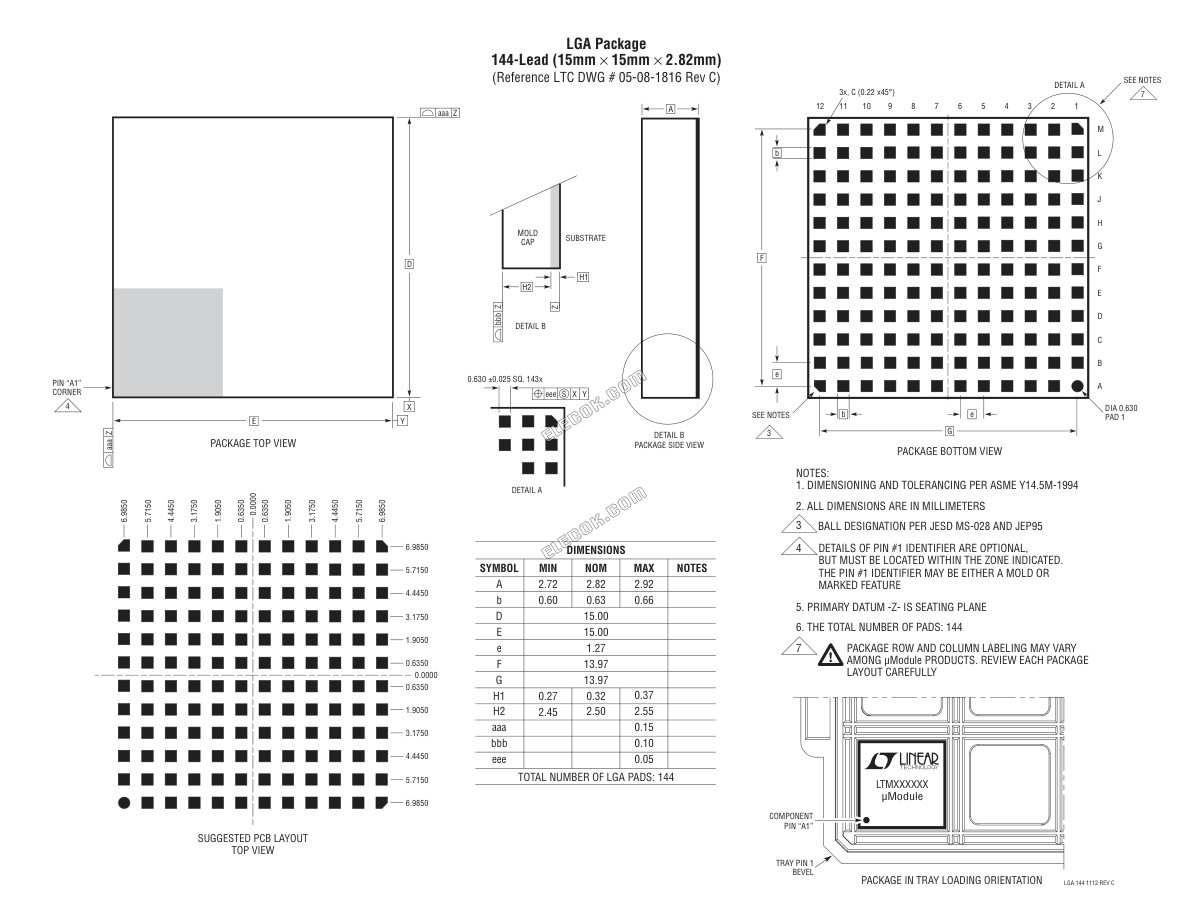

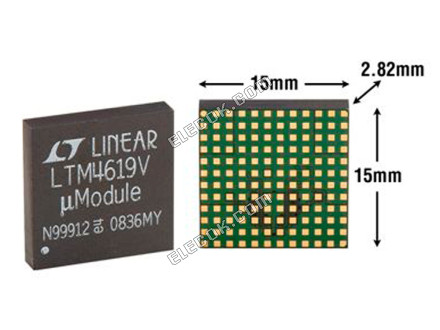

| Device Package | 144-Lead LGA (15mm x 15mm x 2.82mm) |
| Packing Type | Tray |
| Internal operating temperature range | -40 to 125 °C LTM4619E performance is guaranteed over 0°C to 125°C internal temperature specifications over the full -40°C to 125°C range are assured by design and characterization Full-temperature limits apply only where specified Other limits use room-temperature test conditions Maximum ambient temperature depends on board layout, package thermal resistance and environmental factors the internal range is not an ambient rating |
| Package pin/lead count | 144 pins |
| Package nominal length | 15.0 mm |
| Package nominal width | 15.0 mm |
| Package nominal height | 2.82 mm |
| Input DC voltage range | 4.5 to 26.5 V At VIN ≤ 5.5 V, connect VIN and INTVCC together channel and grade conditions |

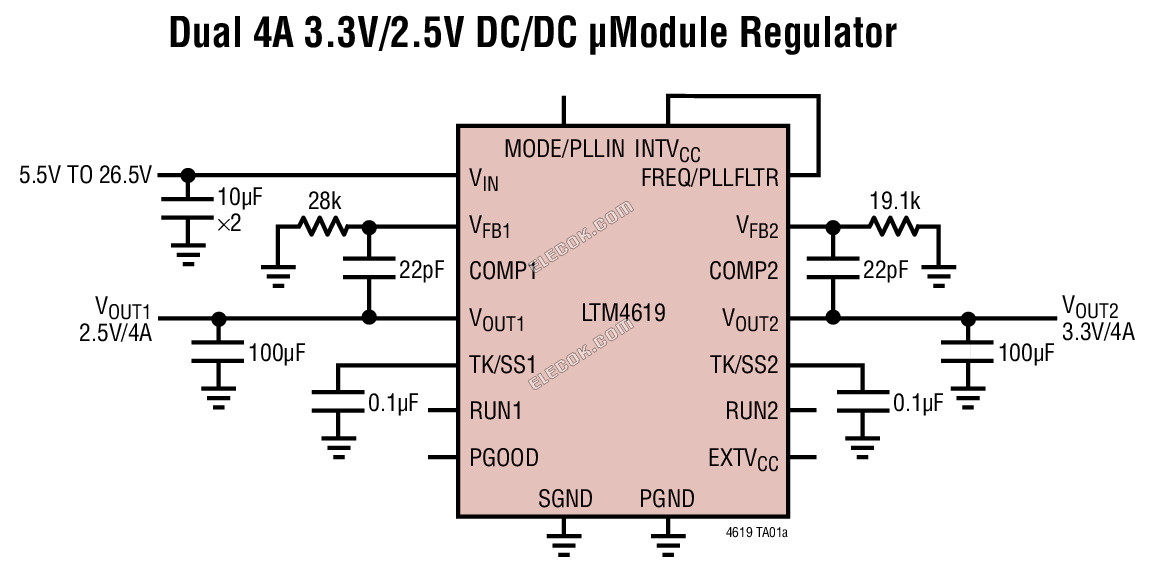

| Output voltage setting range, each channel | 0.8 to 5 V VIN = 5.5 V to 26.5 V two independently resistor-set step-down outputs Not a factory-fixed output |
| Features | Complete Standalone Power Supply Dual Outputs with 0.8V to 5V Range ±1.5% Maximum Total DC Output Error Current Mode Control/Fast Transient Response Phase-Lockable Fixed Frequency 250kHz to 780kHz On Board Frequency Synchronization Parallel Current Sharing Selectable Burst Mode® Operation |
| Power-Good Output | Power Good |
| Protection | Output Overvoltage Protection |
LTM4619EV#PBF Analog Devices Switching Regulators & Controllers - 1 Tray (119 pcs)
| Bruttogewicht | 0.595 |
|---|
