Información de suministro
Este producto se pide al fabricante original y se suministra recién fabricado, con su embalaje original.
El plazo estimado habitual es de 20–40 semanas; algunos componentes con escasez de suministro pueden tardar más.
Los plazos dependen de la planificación de producción del fabricante y resultan difíciles de prever con precisión. Haremos un seguimiento continuo y todo lo posible para adelantar la entrega.
LT4356CDE-3#TRPBF Analog Devices Hot Swap Controllers - 1 Reel (2500 pcs)
| Ficha técnica | LT4356CDE-3#TRPBF Analog Devices Hot Swap Controllers - 1 Reel (2500 pcs) |
| Manufacturer | Analog Devices |
| Model | LT4356CDE-3#TRPBF |
| Category | Hot Swap Controllers |
| Sales Unit | 1 Reel |
| Pack Qty (pcs) | 2500 |
| MOQ (pcs) | 2500 |
| Order Multiple (pcs) | 2500 |

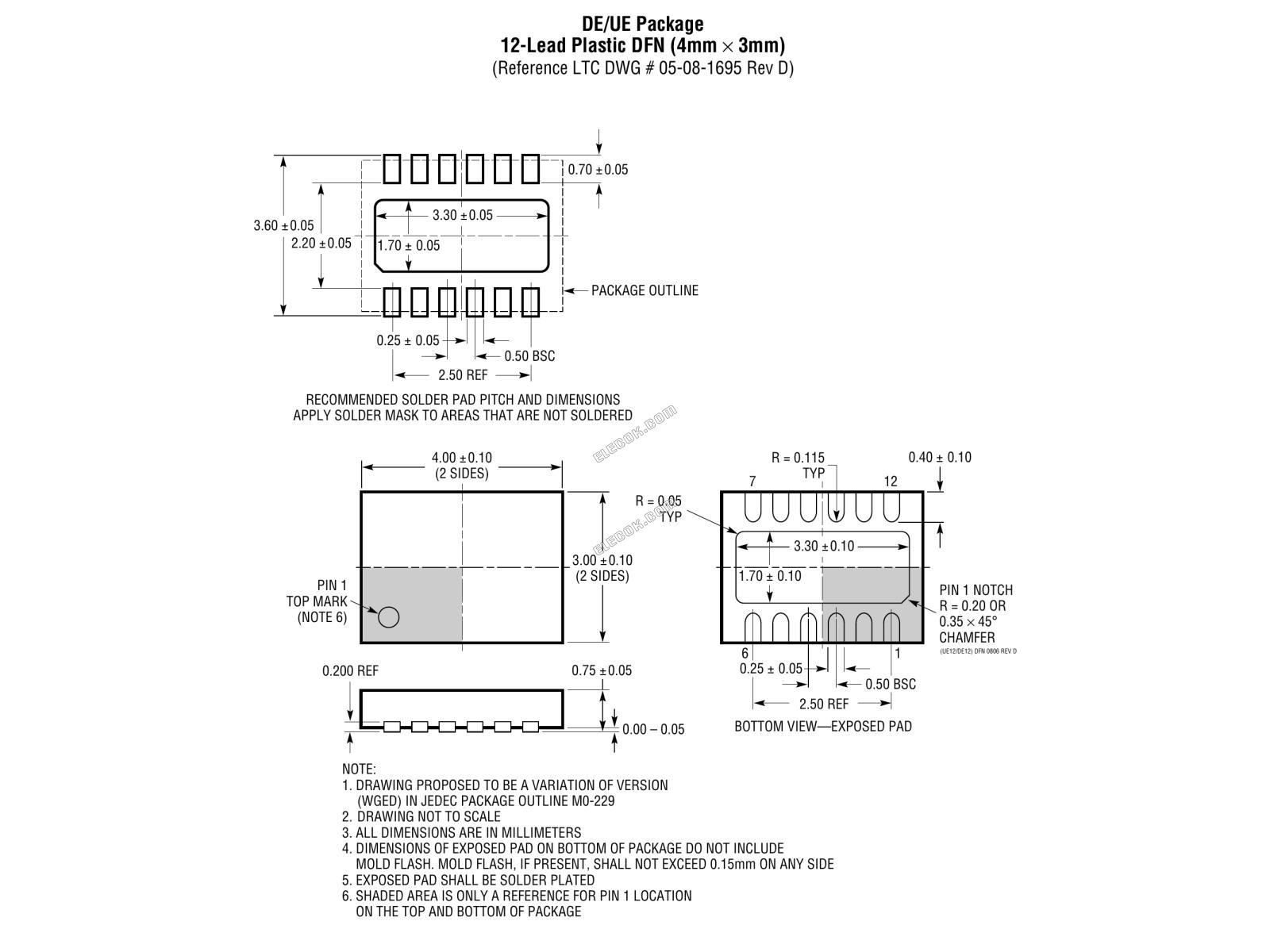

| Device Package | 12-Lead DFN (4mm x 3mm w/ EP) |
| Packing Type | Reel |
| Operating temperature range | 0 to 70 °C |
| Package pin/lead count | 12 pins |
| Package nominal length | 4.0 mm |
| Package nominal width | 3.0 mm |
| Operating supply voltage range | 4 to 80 V full C-grade operating range operating range, not absolute maximum |
| Overcurrent sense-voltage threshold | 45 mV (Min.) 50 mV (Typ.) 55 mV (Max.) VCC - VSNS VCC = 12 V external sense resistor sets load current |
| Fault recovery mode | Latchoff until SHDN is pulled low momentarily -3 version after persistent fault times out, external N-channel MOSFET is switched off and latched |
| Features | Stops High Voltage Surges Adjustable Output Clamp Voltage Adjustable Latchoff Fault Timer Controls N-channel MOSFET Fault Output Indication |
| Protection | Overcurrent Protection Reverse Input Protection to –60V |
| Wide Operation Range | 4V to 80V |
| Shutdown Current | Low 7µA Shutdown Current |
LT4356CDE-3#TRPBF Analog Devices Hot Swap Controllers - 1 Reel (2500 pcs)
| Peso bruto | 1.643 |
|---|
