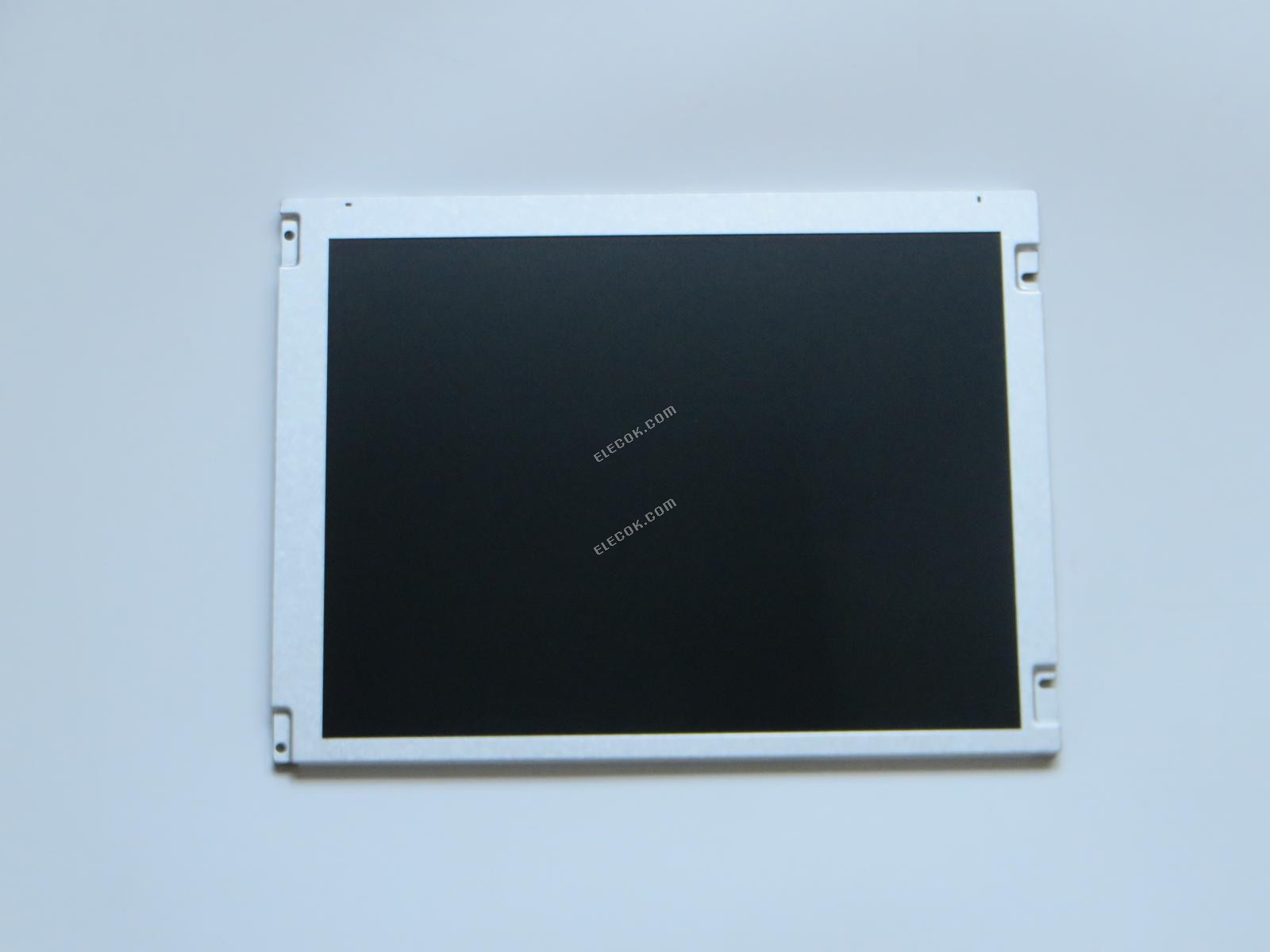

G104STN01.0 AUO 10.4" A-si TFT-LCD Panel new

G104STN01.0 AUO 10.4" A-si TFT-LCD Panel new

$165.98
    VISA VISA VISA Mastercard Mastercard Mastercard PayPal PayPal PayPal JCB JCB JCB American Express American Express American Express Diners Club Diners Club Diners Club DISCOVER DISCOVER DISCOVER

    G104STN01.0 AUO 10.4" A-si TFT-LCD Panel new

    Data Sheet G104STN01.0 AUO 10.4" A-si TFT-LCD Panel new
    Panel Brand AUO
    Panel Model G104STN01.0
    Panel Type a-Si TFT-LCD Panel
    Panel Size 10.4
    Resolution 800(RGB)×600 (SVGA)
    Display Mode TN, Normally White, Transmissive
    Surface Antiglare, Hard coating (3H)
    Brightness 400 cd/m2 (Typ.)
    Contrast Ratio 700 : 1 (Typ.) (Transmissive)
    Display Colors 262K/16.2M (6-bit / 6-bit + FRC)
    Response Time 15 (Typ.)(Tr+Td) (ms)
    Viewing Angle 80/80/60/80 (Typ.)(CR?10) (L/R/U/D)
    Frequency 60Hz
    Lamp Type WLED
    Signal Interface LVDS (1 ch, 6/8-bit)
    Input Voltage 3.3V (Typ.)
    RoHS RoHS Compliance
    Application Industrial Application
    Other NameGL04STN0L.0
    G1O4STNO1.O
    G104STN01.0 AUO 10.4" A-si TFT-LCD Panel new
    G104STN01.0 AUO 10.4" A-si TFT-LCD Panel new
    G104STN01.0 AUO 10.4" A-si TFT-LCD Panel new

    G104STN01.0 10.4" a-Si TFT-LCD Panel for AUO

    AUO G104STN01.0 Basic Information
    Panel Brand AUO
    Panel Model G104STN01.0
    Panel Type a-Si TFT-LCD Panel
    Application Industrial Application
    Operating Temperature -20 ~ 80 °C
    Storage Temperature -20 ~ 80 °C
    RoHS RoHS Compliance
    Specific Feature Antiglare Sureface 6/8 bit Selectable 180 Reverse Wide Viewing Angle White LED Backlight Lamp Repaceable Lamp life &ge 50K hours With LED Driver

    G104STN01.0 10.4" a-Si TFT-LCD Panel for AUO

    AUO G104STN01.0 Mechanical Features
    Panel Size 10.4"
    Dot Resolution 800(RGB)×600 (SVGA)
    Aspect Ratio 2:3 (W:H)
    Pixel Configuration RGB Vertical Stripe
    Pixel Pitch 0.264×0.264 mm (W×H)
    Surface Antiglare, Hard coating (3H)
    Active Area 211.2×158.4 mm (W×H)
    Bezel Area 214.8×162.7 mm (W×H)
    Outline Dimension 243.0×184.0 mm (W×H)
    Outline Depth 6.5 (Typ.) mm
    Touch Panel Without

    G104STN01.0 10.4" a-Si TFT-LCD Panel for AUO

    AUO G104STN01.0 Optical Features
    Display Mode TN, Normally White, Transmissive
    Brightness 400 cd/m2 (Typ.)
    Contrast Ratio 700 : 1 (Typ.) (Transmissive)
    Display Color 262K/16.2M (6-bit / 6-bit + FRC)
    Color Gamut 50%
    Response Time 6/17 (Typ.)(Tr/Td)
    Viewing Angle 80/80/60/80 (Typ.)(CR?10) (L/R/U/D)
    White color Chromaticity X:0.310 Y:0.330
    White Variation 1.33 (Max.)(5 points)

    G104STN01.0 10.4" a-Si TFT-LCD Panel for AUO

    AUO G104STN01.0 Electronics Feature
    Vertical Frequency 60Hz
    Reverse Scan Yes (180°)

    G104STN01.0 10.4" a-Si TFT-LCD Panel for AUO

    AUO G104STN01.0 Backlight System
    Lamp Position Edge light type (Bottom side)
    Lamp Type WLED
    Lamp Amount 7S2P
    Lamp Shape 2 strings
    Lamp Life Time 50K(Min.) (Hours)
    Lamp Replaceable Replaceable
    Lamp Driver Board
    Lamp Driver Board 12.0V (Typ.)
    Interface Type Connector
    Interface Brand E&T
    Interface Model 3808K-F05N-02R
    Interface Pin Pitch 1.25 mm
    Interface Amount 1 pcs
    Interface Pins 5 pins

    G104STN01.0 10.4" a-Si TFT-LCD Panel for AUO

    AUO G104STN01.0 Signal Interface
    Signal Category MPL
    Signal Class
    Pin Configuration LVDS-20P1C8B-080A
    Input Voltage for Panel 3.3V (Typ.)
    Interface Type Connector
    Interface Brand STM
    Interface Model MSB24013P20HA
    Interface Pin Pitch 1.0 mm
    Interface Amount 1 pcs
    Interface Pins 20 pins
