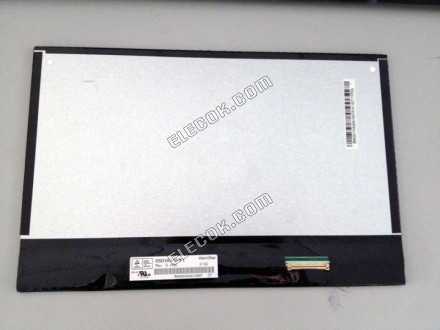

HSD101PWW1-H00 Hannstar 10.1" A-si TFT-LCD Panel

HSD101PWW1-H00 Hannstar 10.1" A-si TFT-LCD Panel

$63.98
    VISA VISA VISA Mastercard Mastercard Mastercard PayPal PayPal PayPal JCB JCB JCB American Express American Express American Express Diners Club Diners Club Diners Club DISCOVER DISCOVER DISCOVER

    HSD101PWW1-H00 Hannstar 10.1" A-si TFT-LCD Panel

    Data Sheet HSD101PWW1-H00 Hannstar 10.1" A-si TFT-LCD Panel
    Panel Brand HannStar
    Panel Model HSD101PWW1-H00
    Panel Type a-Si TFT-LCD Panel
    Panel Size 10.1
    Resolution 1280(RGB)×800 (WXGA)
    Display Mode HS-IPS, Normally Black, Transmissive
    Surface Hard coating
    Brightness 300 cd/m2 (Typ.)
    Contrast Ratio 800 : 1 (Typ.) (Transmissive)
    Display Colors 262K (6-bit)
    Response Time 25 (Typ.)(Tr+Td) (ms)
    Viewing Angle 89/89/89/89 (Typ.)(CR?10) (L/R/U/D)
    Frequency 60Hz
    Lamp Type WLED
    Signal Interface LVDS (1 ch, 6-bit)
    Input Voltage 3.3V (Typ.)
    RoHS RoHS Compliance
    Application Tablet PC
    Other NameHSDL0LPWWL-H00
    HSD1O1PWW1-HOO
    HSD101PWW1-H00 Hannstar 10.1" A-si TFT-LCD Panel
    HSD101PWW1-H00 Hannstar 10.1" A-si TFT-LCD Panel

    HSD101PWW1-H00 10.1" a-Si TFT-LCD Panel for HannStar

    HannStar HSD101PWW1-H00 Basic Information
    Panel Brand HannStar
    Panel Model HSD101PWW1-H00
    Panel Type a-Si TFT-LCD Panel
    Application Tablet PC
    Operating Temperature 0 ~ 50 °C
    Storage Temperature -20 ~ 60 °C
    RoHS RoHS Compliance
    Specific Feature Wide Viewing Angle White LED Backlight With LED Driver Wide Aspect Ratio

    HSD101PWW1-H00 10.1" a-Si TFT-LCD Panel for HannStar

    HannStar HSD101PWW1-H00 Mechanical Features
    Panel Size 10.1"
    Dot Resolution 1280(RGB)×800 (WXGA)
    Aspect Ratio 16:9 (W:H)
    Pixel Configuration RGB Vertical Stripe
    Pixel Pitch 0.1695×0.1695 mm (W×H)
    Surface Hard coating
    Active Area 216.96×135.6 mm (W×H)
    Outline Dimension 229.46×149.2 mm (W×H)
    Outline Depth 2.8/5.2 (Typ./Max.) mm
    Holes & Brackets
    Touch Panel

    HSD101PWW1-H00 10.1" a-Si TFT-LCD Panel for HannStar

    HannStar HSD101PWW1-H00 Optical Features
    Display Mode HS-IPS, Normally Black, Transmissive
    Brightness 300 cd/m2 (Typ.)
    Contrast Ratio 800 : 1 (Typ.) (Transmissive)
    Display Color 262K (6-bit)
    Color Gamut 45%
    Response Time
    Viewing Angle 89/89/89/89 (Typ.)(CR?10) (L/R/U/D)
    Viewing Direction Symmetry
    White color Chromaticity X:0.313 Y:0.329
    White Variation 1.25/1.50 (Max.)(5/13 points)

    HSD101PWW1-H00 10.1" a-Si TFT-LCD Panel for HannStar

    HannStar HSD101PWW1-H00 Electronics Feature
    Vertical Frequency 60Hz
    Reverse Scan No
    Total Power Consumption 4.0W (Max.)

    HSD101PWW1-H00 10.1" a-Si TFT-LCD Panel for HannStar

    HannStar HSD101PWW1-H00 Backlight System
    Lamp Position Edge light type
    Lamp Type WLED
    Lamp Life Time 10K(Min.) (Hours)
    Lamp Driver Board
    Lamp Driver Board 4.5/5.5V (Min./Max.)
    Lamp Driver Board 2.91W (Max.)
    Interface Type Included in signal interface

    HSD101PWW1-H00 10.1" a-Si TFT-LCD Panel for HannStar

    HannStar HSD101PWW1-H00 Signal Interface
    Signal Category Parallel RGB
    Signal Class MIPI (4 data lanes)
    Input Voltage for Panel 3.3V (Typ.)
    Input Current for Panel 0.27A (Typ.)
    Panel Power Consumption 1.0W (Max.)
    Interface Type Connector
    Interface Brand I-PEX
    Interface Model 20455-040E-12
    Interface Pin Pitch 0.5 mm
    Interface Amount 1 pcs
    Interface Pins 40 pins
