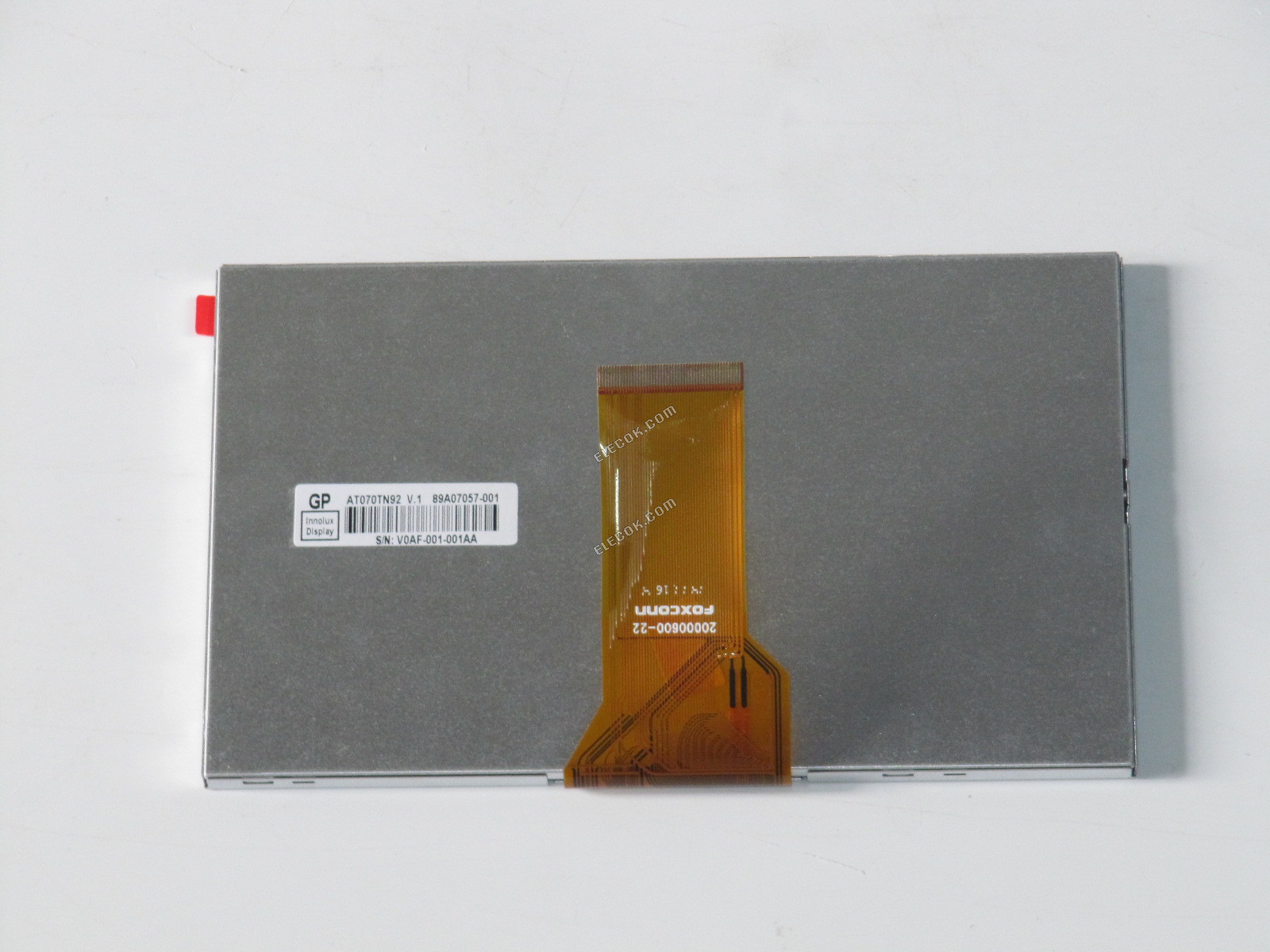

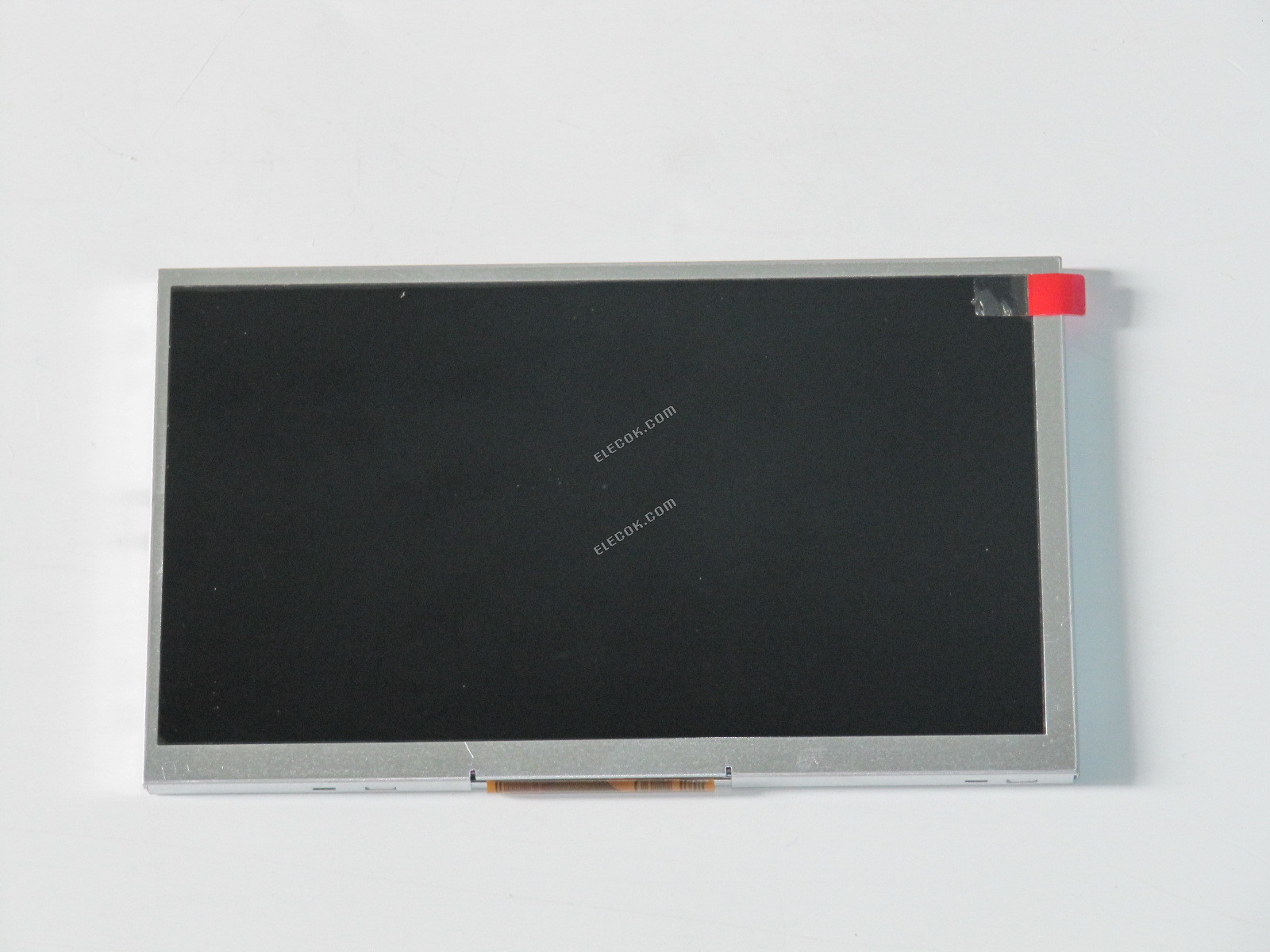

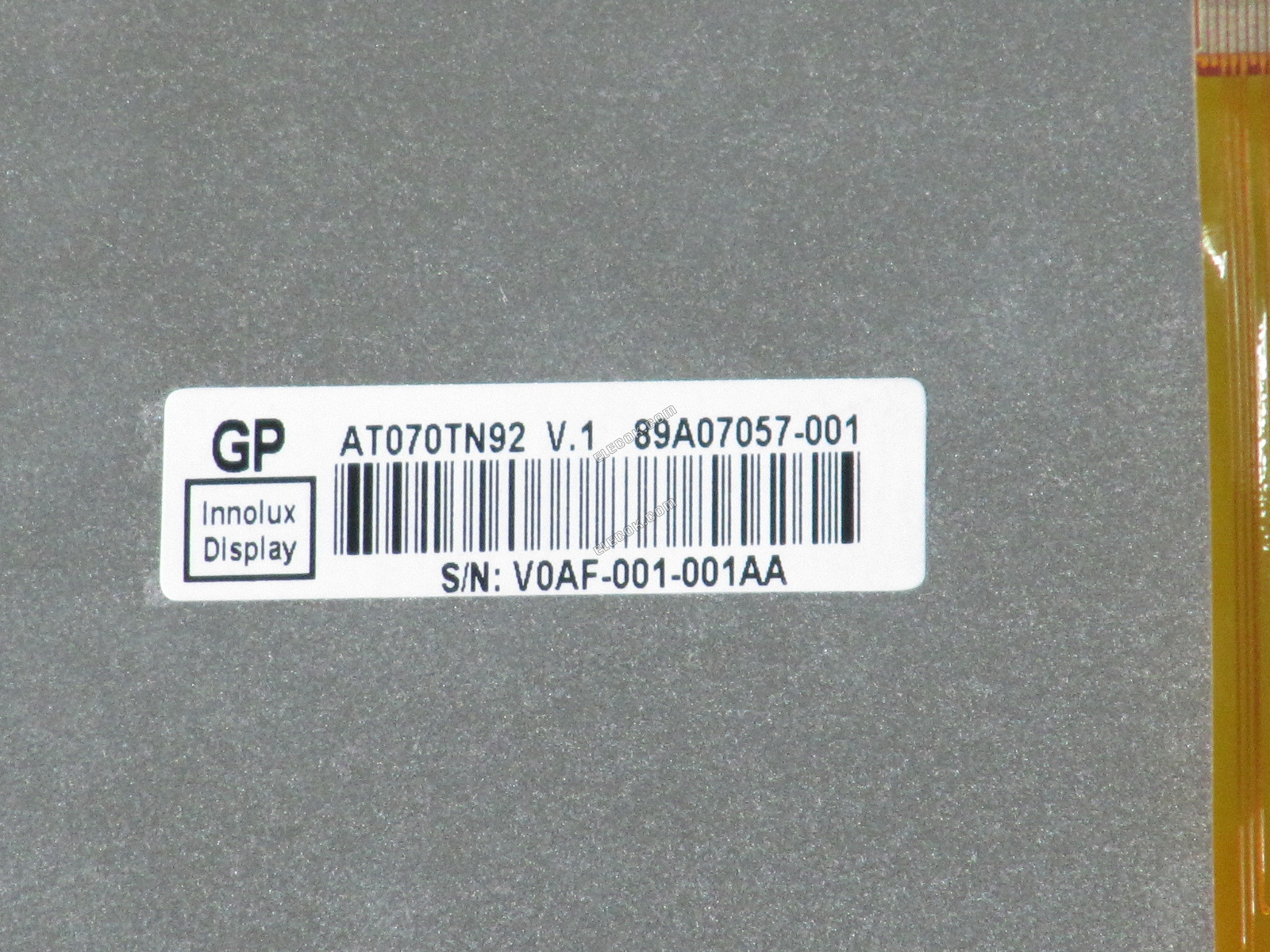

AT070TN92 V1 INNOLUX 7.0" LCD Panel Without Touch Panel

$33.98

AT070TN92 V1 INNOLUX 7.0" LCD Panel Without Touch Panel

Data Sheet AT070TN92 V1 INNOLUX 7.0" LCD Panel Without
Panel BrandINNOLUX
Panel ModelAT070TN92 V.1
Panel Typea-Si TFT-LCDPanel
Panel Size7.0"
Resolution800(RGB)×480 (WVGA)
Display ModeTN, Normally White, Transmissive
SurfaceClear
Brightness250 cd/m2 (Typ.)
Contrast Ratio500 : 1 (Typ.) (Transmissive)
Display Colors262K/16.2M (6-bit / 6-bit + Dithering)
Response Time10/15 (Typ.)(Tr/Td) (ms)
Viewing Angle70/70/50/70 (Typ.)(CR?10) (L/R/U/D)
Frequency60Hz
Lamp TypeWLED
Signal InterfaceParallel RGB (1 ch, 6/8-bit)
Input Voltage3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL)
Other NameAT070TN92 V.L
ATO7OTN92 V.1
AT070TN92 V1 INNOLUX 7.0" LCD Panel Without Touch Panel
AT070TN92 V1 INNOLUX 7.0" LCD Panel Without Touch Panel
AT070TN92 V1 INNOLUX 7.0" LCD Panel Without Touch Panel
loading...
In the following cases, we will make a free reissue or full refund

Product cannot use in warranty period because of product quality problems

Product is damaged in transit

Product is not delivered in time because of our reason


Process of free reissue or full refund

Buyers send an email to our customer service to describe the problem, and to provide evidence (clear photos, screenshots, or video)

We will check the problem in 1 working days. For eligible cases, we will provide a free replacement or full refund within 1-2 business days

If a return is required, the return shipping fee will be paid by us


Buyers can apply for return or exchange within 90 days of receipt

AT070TN92 V1 INNOLUX 7.0" LCD Panel Without Touch Panel

Gross Weight 1.3
AT070TN92 V1 INNOLUX 7.0" LCD Panel Without Touch Panel
