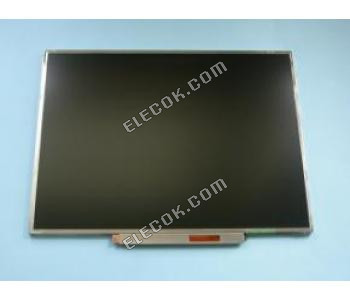

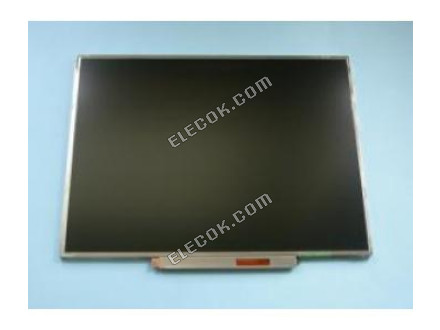

LP150E07-A3K1 15.0" a-Si TFT-LCD Panel for LG.Philips LCD,substitute
LP150E07-A3K1 15.0" a-Si TFT-LCD Panel for LG.Philips LCD,substitute
Panel Brand | LG.Philips LCD |
Panel Model | LP150E07-A3K1 |
Panel Type | a-Si TFT-LCDPanel |
Panel Size | 15.0" |
Resolution | 1400(RGB)×1050 (SXGA+) |
Display Mode | TN, Normally White, Transmissive |
Surface | Antiglare, Hard coating (3H) |
Brightness | 200 cd/m2 (Typ.) |
Contrast Ratio | 350 : 1 (Min.) (Transmissive) |
Display Colors | 262K (6-bit) |
Response Time | 25 (Typ.)(Tr+Td) (ms) |
Viewing Angle | 60/60/45/45 (Min.)(CR?10) (L/R/U/D) |
Frequency | 60Hz |
Lamp Type | CCFL |
Signal Interface | LVDS (2 ch, 6-bit) |
Input Voltage | 3.3V (Typ.) |
Other Name | LPL50E07-A3KL 1P150E07-A3K1 LP15OEO7-A3K1 |
LG.Philips LCD LP150E07-A3K1 Basic Information | Panel Brand | LG.Philips LCD |
Panel Model | LP150E07-A3K1 |
Model Alias | LP150E07 (A3)(K1)  |
Panel Type | a-Si TFT-LCD,Panel |
Application | Laptop |
Operating Temperature | 0 ~ 50 °C |
Storage Temperature | -20 ~ 60 °C |
RoHS | None RoHS |
Specific Feature | Antiglare Sureface With Inverter |
LG.Philips LCD LP150E07-A3K1 Mechanical Features | Panel Size | 15.0" |
Dot Resolution | 1400(RGB)×1050 (SXGA+) |
Aspect Ratio | 4:3 (W:H) |
Pixel Configuration | RGB Vertical Stripe |
Pixel Pitch | 0.2175×0.2175 mm (W×H) |
Surface | Antiglare, Hard coating (3H) |
Active Area | 304.5×228.375 mm (W×H) |
Bezel Area | 307.5×231.4 mm (W×H) |
Outline Dimension | 317.3×241.5 mm (W×H) |
Outline Depth | 6.0 (Max.) mm |
Holes & Brackets | No |
Touch Panel | Without |
LG.Philips LCD LP150E07-A3K1 Optical Features | Display Mode | TN, Normally White, Transmissive |
Brightness | 200 cd/m2 (Typ.) |
Contrast Ratio | 350 : 1 (Min.) (Transmissive) |
Display Color | 262K (6-bit) |
Response Time | No |
Viewing Angle | 60/60/45/45 (Min.)(CR?10) (L/R/U/D) |
White color Chromaticity | X:0.313 Y:0.329 |
White Variation | 2.00 (Max.)(13 points) |
LG.Philips LCD LP150E07-A3K1 Electronics Feature | Vertical Frequency | 60Hz |
Reverse Scan | No |
Total Power Consumption | 7.01W (Typ.) |
LG.Philips LCD LP150E07-A3K1 Backlight System | Lamp Position | Edge light type (Bottom side) |
Lamp Type | CCFL |
Lamp Amount | 1 pcs  |
Lamp Shape | Straight |
Lamp Life Time | 10K(Min.) (Hours) |
Lamp Voltage | 655/685/805V (Min./Typ./Max.) |
Lamp Current | 6.0/6.3/6.6mA (Min./Typ./Max.) |
Lamp Operating Frequency | 50/65/80KHz (Min./Typ./Max.) |
Lamps Power Consumption | 3.65/4.28/4.91W (Min./Typ.Max.) |
Lamp Driver Board | No |
Lamp Driver Board | No |
Lamp Driver Board | No |
Lamp Driver Board | No |
Interface Type | Connector |
Interface Brand | HONDA |
Interface Model | LVC-D20SFYG |
Interface Pin Pitch | 0.5 mm |
Interface Amount | 1 pcs |
Interface Pins | 20 pins |
LG.Philips LCD LP150E07-A3K1 Signal Interface | Signal Category | LVDS |
Signal Class | LVDS (1 ch, 6-bit) |
Pin Configuration | LVDS-30P2C6B-020C |
Input Voltage for Panel | 3.3V (Typ.) |
Input Current for Panel | 385/443mA (Typ./Max.) |
Panel Power Consumption | 1.30/1.60W (Typ./Max.) |
Interface Type | Connector |
Interface Brand | JAE |
Interface Model | FI-XB30SRL-HF11 |
Interface Pin Pitch | 1.0 mm |
Interface Amount | 1 pcs |
Interface Pins | 30 pins |
