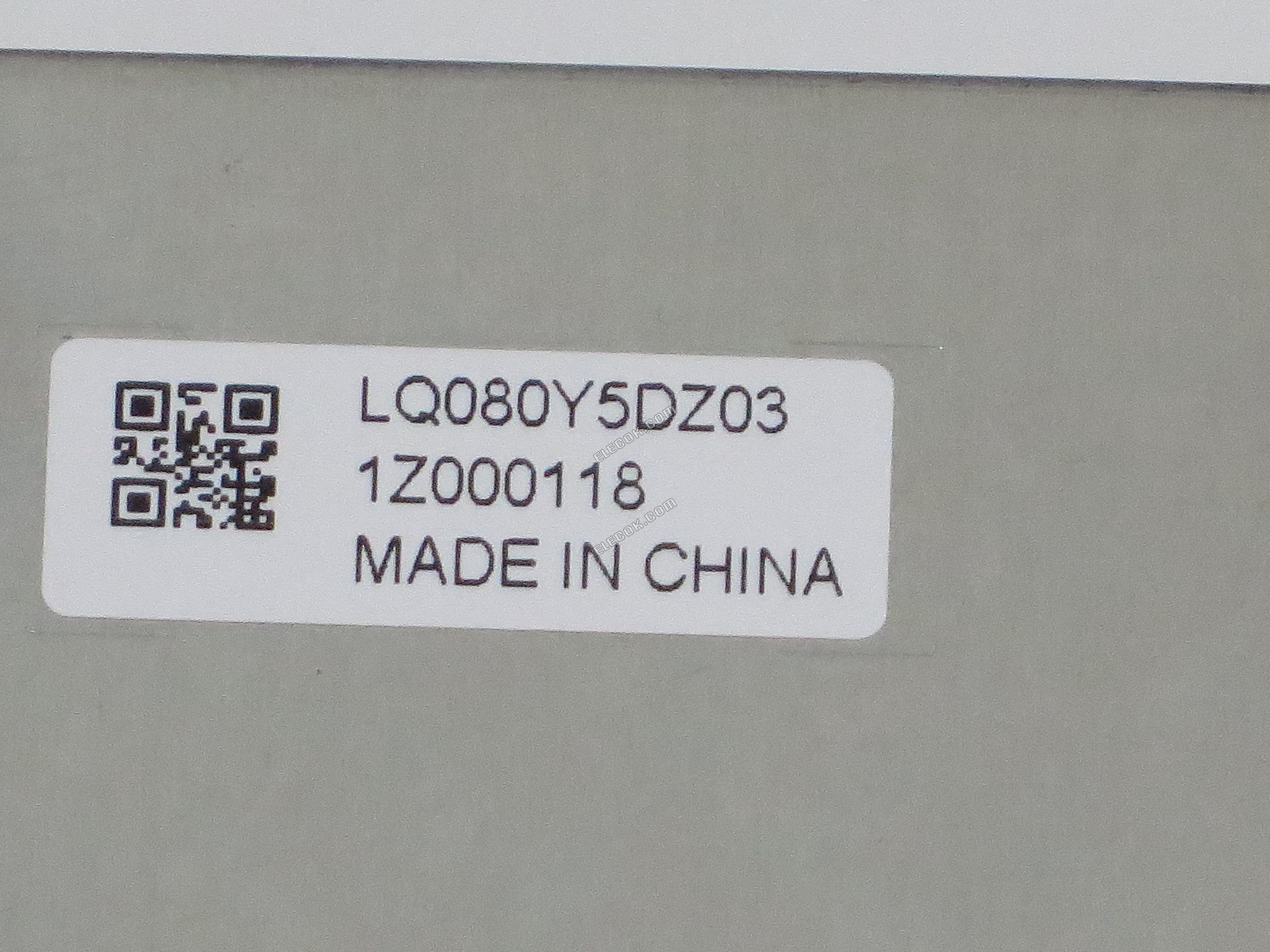

LQ080Y5DZ03 SHARP 8.0" A-si TFT-LCD Panel

LQ080Y5DZ03 SHARP 8.0" A-si TFT-LCD Panel

$223.98
    VISA VISA VISA Mastercard Mastercard Mastercard PayPal PayPal PayPal JCB JCB JCB American Express American Express American Express Diners Club Diners Club Diners Club DISCOVER DISCOVER DISCOVER

    LQ080Y5DZ03 SHARP 8.0" A-si TFT-LCD Panel

    Data Sheet LQ080Y5DZ03 SHARP 8.0" A-si TFT-LCD Panel
    Panel Brand SHARP
    Panel Model LQ080Y5DZ03
    Panel Type a-Si TFT-LCD Panel
    Panel Size 8.0
    Resolution 800(RGB)×480 (WVGA)
    Display Mode ASV, Normally Black, Transmissive
    Surface Antiglare, Reflection 1.5% (Typ.)
    Brightness 640 cd/m2 (Typ.)
    Contrast Ratio 2000 : 1 (Typ.) (Transmissive)
    Display Colors 262K (6-bit)
    Response Time 15/5 (Typ.)(Tr/Td) (ms)
    Viewing Angle 85/85/85/85 (Typ.)(CR?10) (L/R/U/D)
    Frequency 60Hz
    Lamp Type WLED
    Signal Interface Parallel RGB (1 ch, 6-bit)
    Input Voltage 3.3V (Typ.)
    RoHS RoHS Compliance
    Application Car Display Industrial Application
    Other Name1Q080Y5DZ03
    LQO8OY5DZO3
    LQ080Y5DZ03 SHARP 8.0" A-si TFT-LCD Panel
    LQ080Y5DZ03 SHARP 8.0" A-si TFT-LCD Panel
    LQ080Y5DZ03 SHARP 8.0" A-si TFT-LCD Panel

    LQ080Y5DZ03 8.0" a-Si TFT-LCD Panel for SHARP

    SHARP LQ080Y5DZ03 Basic Information
    Panel Brand SHARP
    Panel Model LQ080Y5DZ03
    Panel Type a-Si TFT-LCD Panel
    Application Car Display Industrial Application
    Operating Temperature -30 ~ 85 °C
    Storage Temperature -40 ~ 95 °C
    RoHS RoHS Compliance
    Specific Feature Antiglare Sureface Wide Viewing Angle White LED Backlight Hight Brightness Wide Temprature With LED Driver Wide Aspect Ratio
    Remarks Automotive Grade IA Chip-on-Glass

    LQ080Y5DZ03 8.0" a-Si TFT-LCD Panel for SHARP

    SHARP LQ080Y5DZ03 Mechanical Features
    Panel Size 8.0"
    Dot Resolution 800(RGB)×480 (WVGA)
    Aspect Ratio 16:9 (W:H)
    Pixel Configuration RGB Vertical Stripe
    Pixel Pitch 0.2175×0.2175 mm (W×H)
    Surface Antiglare, Reflection 1.5% (Typ.)
    Active Area 174.0×104.4 mm (W×H)
    Bezel Area 176.4×106.55 mm (W×H)
    Outline Dimension 191.8×120.0 mm (W×H)
    Outline Depth 13.5 (Typ.) mm
    Holes & Brackets Side mounting holes (4-M3)
    Touch Panel Without

    LQ080Y5DZ03 8.0" a-Si TFT-LCD Panel for SHARP

    SHARP LQ080Y5DZ03 Optical Features
    Display Mode ASV, Normally Black, Transmissive
    Brightness 640 cd/m2 (Typ.)
    Contrast Ratio 2000 : 1 (Typ.) (Transmissive)
    Display Color 262K (6-bit)
    Color Gamut 64%
    Response Time 6.5 (Typ.)(G to G)
    Viewing Angle 85/85/85/85 (Typ.)(CR?10) (L/R/U/D)
    Viewing Direction Symmetry
    White color Chromaticity X:0.290 Y:0.320
    White Variation 1.18 (Typ.)(9 points)

    LQ080Y5DZ03 8.0" a-Si TFT-LCD Panel for SHARP

    SHARP LQ080Y5DZ03 Electronics Feature
    Vertical Frequency 60Hz
    Reverse Scan No

    LQ080Y5DZ03 8.0" a-Si TFT-LCD Panel for SHARP

    SHARP LQ080Y5DZ03 Backlight System
    Lamp Position Edge light type
    Lamp Type WLED
    Lamp Life Time 10K(Min.) (Hours)
    Lamp Driver Board No
    Lamp Driver Board 7.0/13.5/18.0V (Min./Typ./Max.)
    Lamp Driver Board 450/1000mA (Typ./Max.)
    Interface Type Included in signal interface

    LQ080Y5DZ03 8.0" a-Si TFT-LCD Panel for SHARP

    SHARP LQ080Y5DZ03 Signal Interface
    Signal Category LVDS
    Signal Class LVDS (2 ch, 10-bit)
    Input Voltage for Panel 3.3V (Typ.)
    Input Current for Panel 260/350mA (Typ./Max.)
    Voltage for Display Signals 0?VIL?0.3VCC 0.7VCC?VIH?VCC
    Interface Type Connector
    Interface Brand HRS
    Interface Model HF41-68S-0.5SH(05)
    Interface Pin Pitch 0.5 mm
    Interface Amount 1 pcs
    Interface Pins 68 pins
