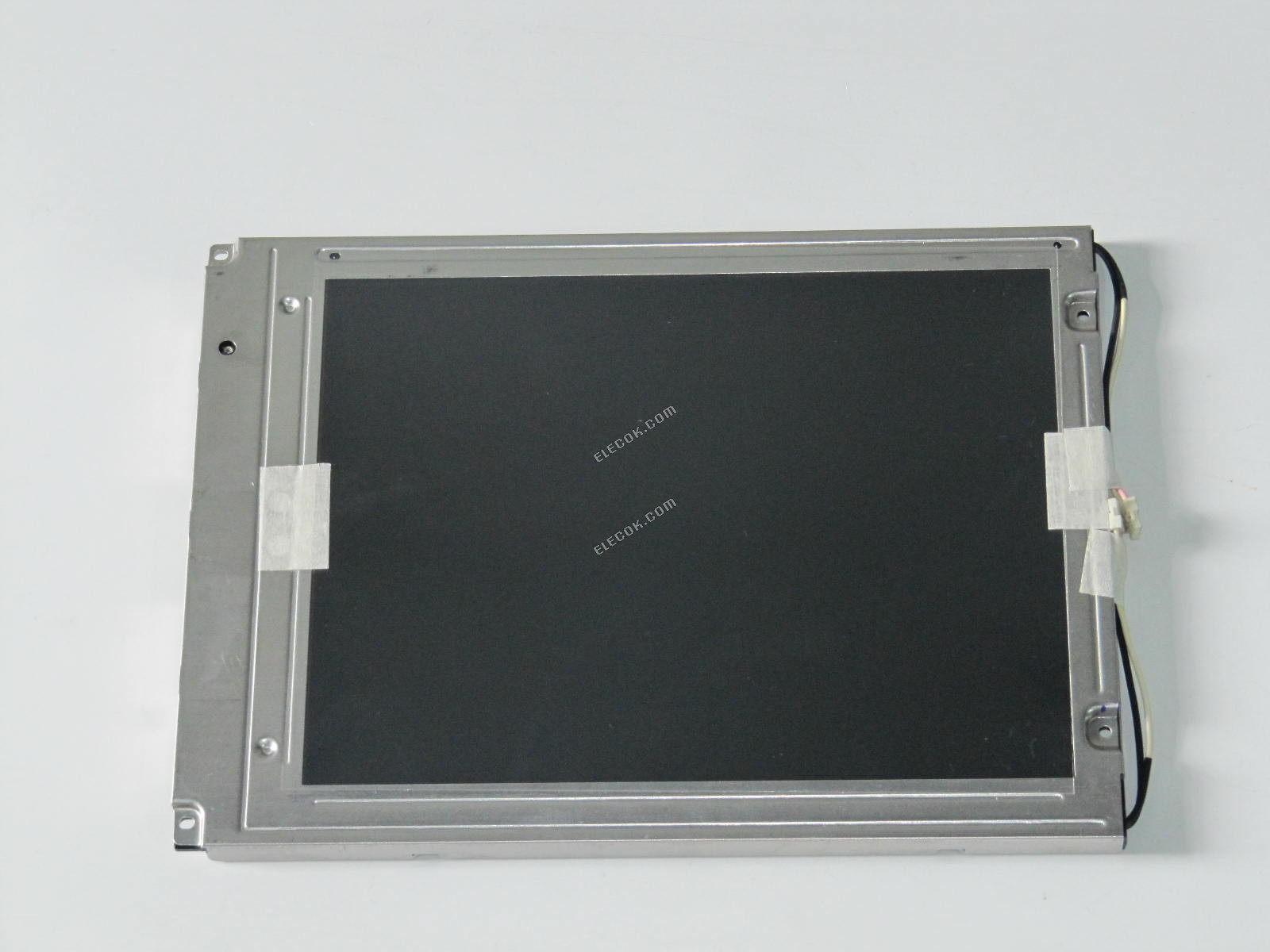

LQ10D421 10.4" a-Si TFT-LCD Panel for SHARP
| Data Sheet | LQ10D421 10.4" a-Si TFT-LCD Panel for SHARP |
| Panel Brand | SHARP |
| Panel Model | LQ10D421 |
| Panel Type | a-Si TFT-LCDPanel |
| Panel Size | 10.4" |
| Resolution | 640(RGB)×480 (VGA) |
| Display Mode | TN, Normally White, Transmissive |
| Surface | Clear, Hard coating (3H), Antireflection |
| Brightness | 300 cd/m2 (Typ.) |
| Contrast Ratio | 300 : 1 (Typ.) (Transmissive) |
| Display Colors | 262K (6-bit) |
| Response Time | 20/40 (Typ.)(Tr/Td) (ms) |
| Viewing Angle | 70/70/40/70 (Typ.)(CR?10) (L/R/U/D) |
| Frequency | |
| Lamp Type | CCFL |
| Signal Interface | Parallel RGB (1 ch, 6-bit) |
| Input Voltage | 5.0V (Typ.)(VCC) |
| Other Name | LQL0D42L 1Q10D421 LQ1OD421 |
In the following cases, we will make a free reissue or full refund
Product cannot use in warranty period because of product quality problems
Product is damaged in transit
Product is not delivered in time because of our reason
Process of free reissue or full refund
Buyers send an email to our customer service to describe the problem, and to provide evidence (clear photos, screenshots, or video)
We will check the problem in 1 working days. For eligible cases, we will provide a free replacement or full refund within 1-2 business days
If a return is required, the return shipping fee will be paid by us
Buyers can apply for return or exchange within 90 days of receipt
LQ10D421 10.4" a-Si TFT-LCD Panel for SHARP
| Gross Weight | 1.1 |
|---|
