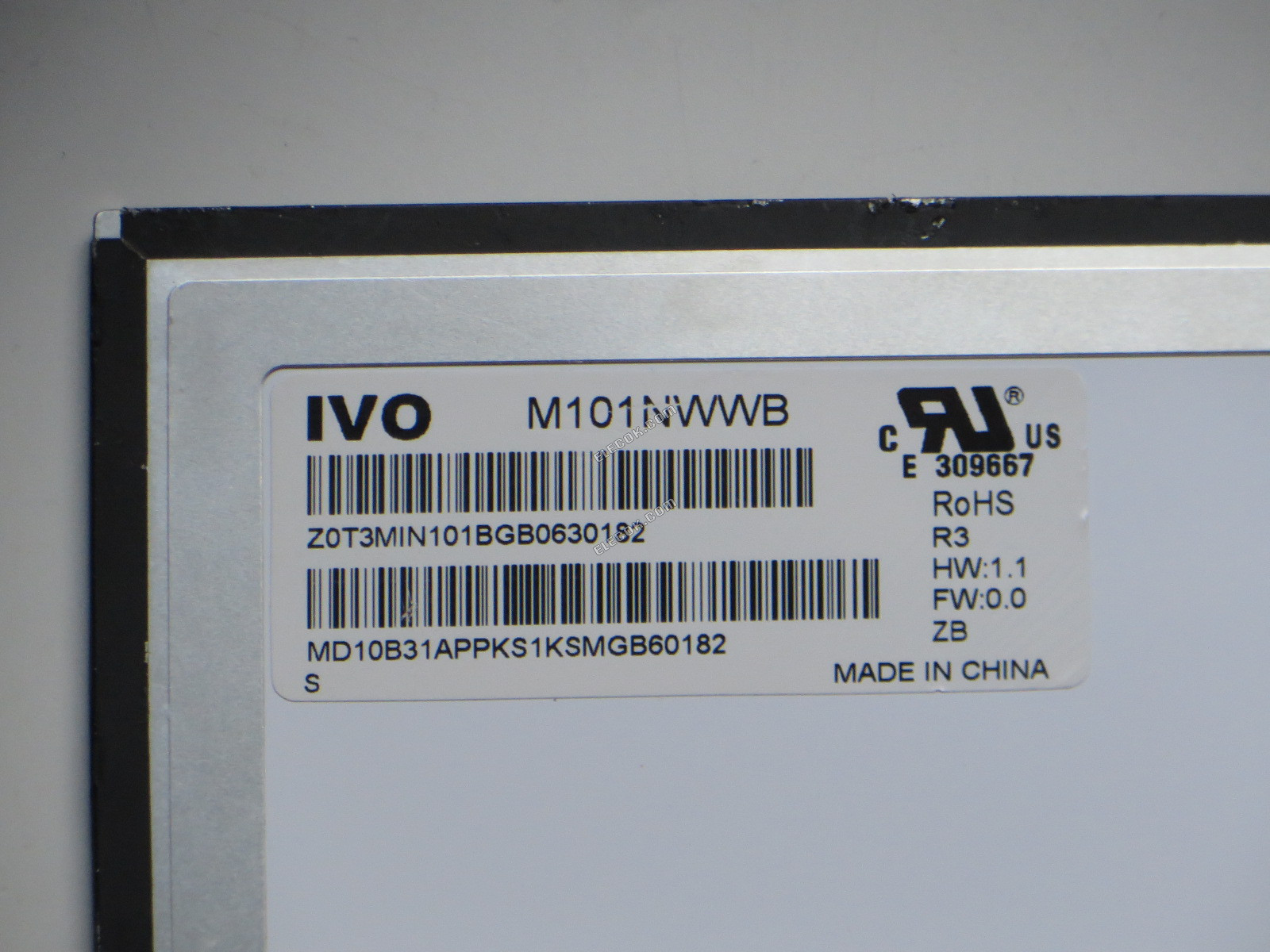

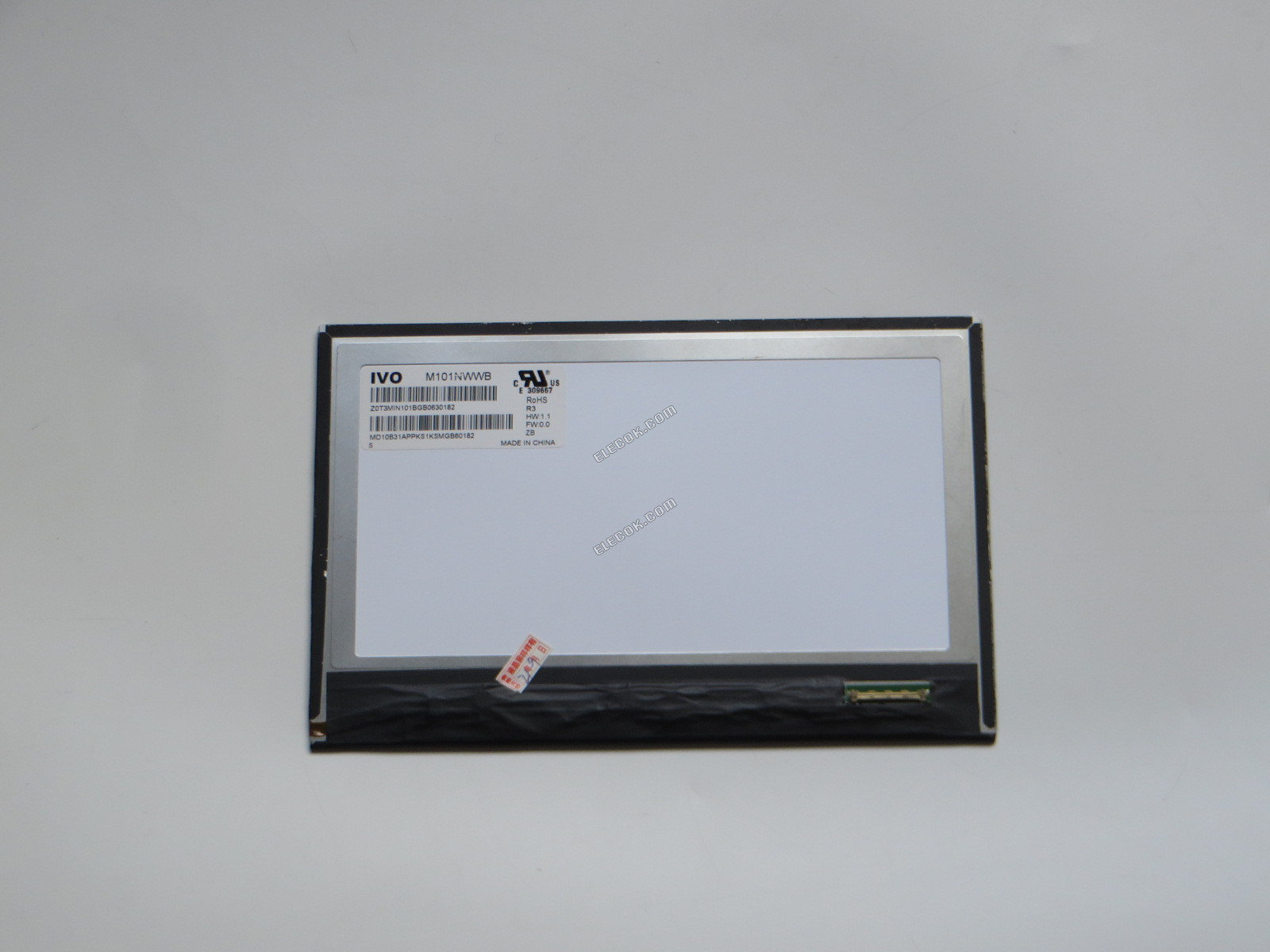

M101NWWB R3 10.1" a-Si TFT-LCD , Panel for IVO
| Data Sheet | M101NWWB R3 10.1" a-Si TFT-LCD , Panel for |
| Panel Brand | IVO |
| Panel Model | M101NWWB R3 |
| Panel Type | a-Si TFT-LCD , Panel |
| Panel Size | 10.1 |
| Resolution | 1280(RGB)×800 , WXGA |
| Display Mode | IPS, Normally Black, Transmissive |
| Active Area | 216.96×135.6 mm |
| Outline | 229.46×149.1×2.5 mm |
| Surface | Glare (Haze 0%), Hard coating |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) |
| Display Colors | 16.7M (8-bit) |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLED |
| Signal Interface | LVDS (1 ch, 8-bit) |
| Input Voltage | 3.3V (Typ.) |
| RoHS | RoHS Compliance |
| Application | PAD |
| Other Name | ML0LNWWB R3 M1O1NWWB R3 |
IVO M101NWWB R3 Basic Information
| Panel Brand | IVO |
|---|---|
| Panel Model | M101NWWB R3 |
| Panel Type | a-Si TFT-LCD , Panel |
| Application | PAD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| RoHS | RoHS Compliance |
| Specific Feature |
IVO M101NWWB R3 Mechanical Features
| Panel Size | 10.1" |
|---|---|
| Dot Resolution | 1280(RGB)×800 (WXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 149 PPI |
| Aspect Ratio | 16:10 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0565×0.1695 mm (H×V) |
| Pixel Pitch | 0.1695×0.1695 mm (H×V) |
| Surface | Glare (Haze 0%), Hard coating |
| Active Area | 216.96×135.6 mm (H×V) |
| Outline Dimension | 229.46×149.1 mm (H×V) |
| Outline Depth | 2.5/4.56 (Typ./Max.) mm |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
IVO M101NWWB R3 Optical Features
| Display Mode | IPS, Normally Black, Transmissive |
|---|---|
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M (8-bit) |
| Color Gamut | 45% NTSC (CIE1931) |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.313 Wy:0.329 |
| White Variation | 1.33/1.43 (Typ./Max.)(13 points) |
IVO M101NWWB R3 Electronics Feature
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | No |
IVO M101NWWB R3 Backlight System
| Lamp Position | Edge light type |
|---|---|
| Lamp Type | WLED |
| Lamp Shape | Array |
| Lamp Life Time | 15K(Min.) (Hours) |
| Interface Type | Included in panel signal interface |
| Lamp Driver Board | Embedded (LED Driver) |
| Lamp Driver Board | 6.0/12.0/21.0V (Min./Typ./Max.) |
| Lamp Driver Board | 2.5W (Max.) |
IVO M101NWWB R3 Signal Interface
| Signal Category | LVDS |
|---|---|
| Signal Class | LVDS (1 ch, 8-bit) |
| Input Voltage for Panel | 3.3V (Typ.) |
| Input Current for Panel | 0.27A (Typ.) |
| Panel Power Consumption | 1.0W (Max.) |
| Interface Type | Connector |
| Interface Position | Down right of panel |
| Signal Interface | Configuration |
