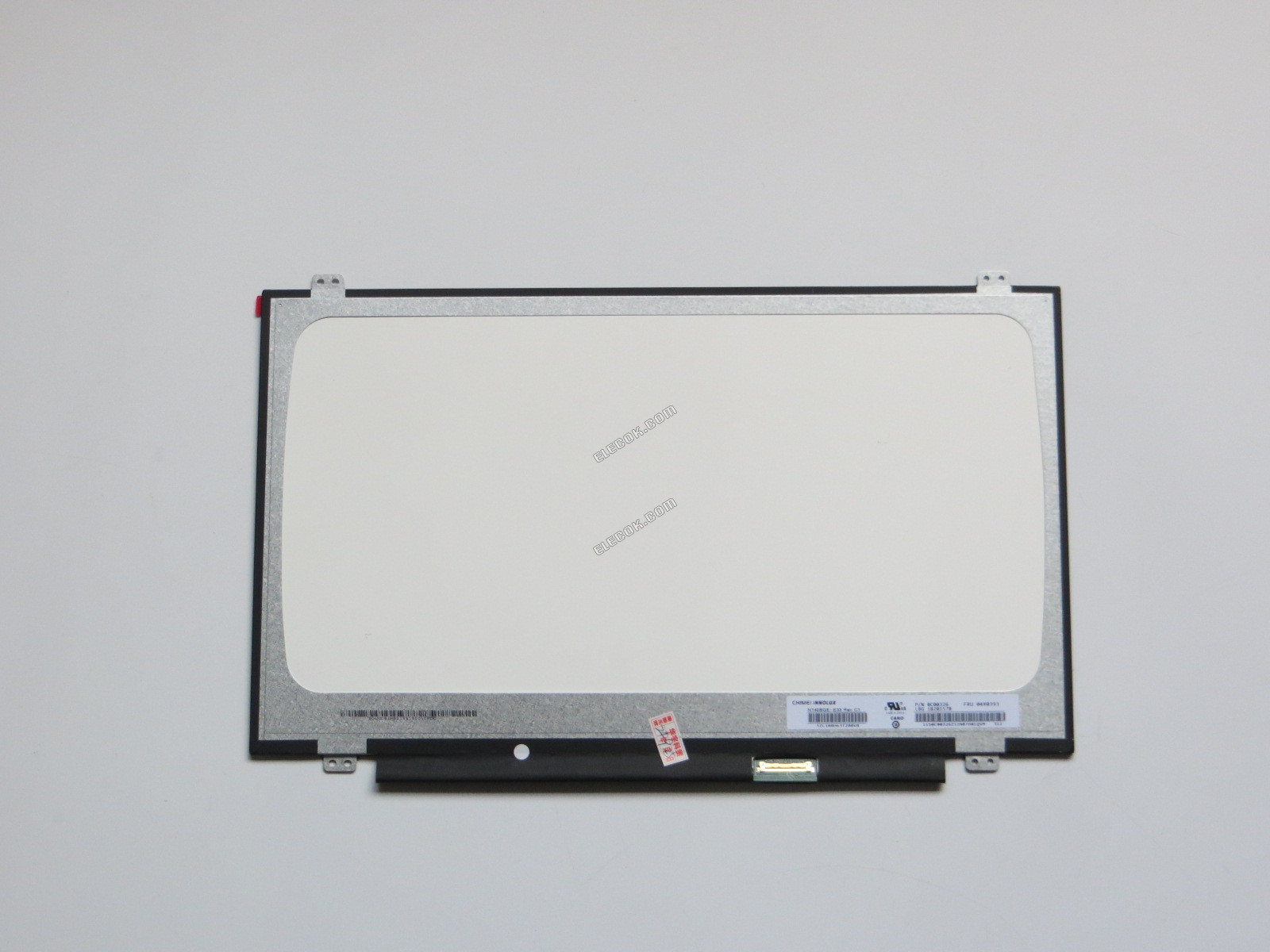

N140BGE-E33 INNOLUX 14.0" A-si TFT-LCD Panel

N140BGE-E33 INNOLUX 14.0" A-si TFT-LCD Panel

$49.98
    VISA VISA VISA Mastercard Mastercard Mastercard PayPal PayPal PayPal JCB JCB JCB American Express American Express American Express Diners Club Diners Club Diners Club DISCOVER DISCOVER DISCOVER

    N140BGE-E33 INNOLUX 14.0" A-si TFT-LCD Panel

    Data Sheet N140BGE-E33 INNOLUX 14.0" A-si TFT-LCD Panel
    Panel Brand INNOLUX
    Panel Model N140BGE-E33
    Panel Type a-Si TFT-LCD Panel
    Panel Size 14.0
    Resolution 1366(RGB)×768 (WXGA)
    Display Mode TN, Normally White, Transmissive
    Surface Antiglare, Hard coating (3H)
    Brightness 250 cd/m2 (Typ.)
    Contrast Ratio 500 : 1 (Typ.) (Transmissive)
    Display Colors 262K (6-bit)
    Response Time 3/7 (Typ.)(Tr/Td) (ms)
    Viewing Angle 45/45/20/45 (Typ.)(CR?10) (L/R/U/D)
    Frequency 60Hz
    Lamp Type WLED
    Signal Interface eDP (1 Lane)
    Input Voltage 3.3V (Typ.)
    RoHS RoHS Compliance
    Application Laptop
    Other NameNL40BGE-E33
    N14OBGE-E33
    N140BGE-E33 INNOLUX 14.0" A-si TFT-LCD Panel
    N140BGE-E33 INNOLUX 14.0" A-si TFT-LCD Panel
    N140BGE-E33 INNOLUX 14.0" A-si TFT-LCD Panel

    N140BGE-E33 14.0" a-Si TFT-LCD Panel for INNOLUX

    INNOLUX N140BGE-E33 Basic Information
    Panel Brand INNOLUX
    Panel Model N140BGE-E33
    Panel Type a-Si TFT-LCD Panel
    Application Laptop
    Operating Temperature 0 ~ 50 °C
    Storage Temperature -20 ~ 50 °C
    RoHS RoHS Compliance
    Specific Feature Antiglare Sureface White LED Backlight With LED Driver Wide Aspect Ratio

    N140BGE-E33 14.0" a-Si TFT-LCD Panel for INNOLUX

    INNOLUX N140BGE-E33 Mechanical Features
    Panel Size 14.0"
    Dot Resolution 1366(RGB)×768 (WXGA)
    Aspect Ratio 16:9 (W:H)
    Pixel Configuration RGB Vertical Stripe
    Pixel Pitch 0.2265×0.2265 mm (W×H)
    Surface Antiglare, Hard coating (3H)
    Active Area 309.40×173.95 mm (W×H)
    Touch Panel

    N140BGE-E33 14.0" a-Si TFT-LCD Panel for INNOLUX

    INNOLUX N140BGE-E33 Optical Features
    Display Mode TN, Normally White, Transmissive
    Brightness 250 cd/m2 (Typ.)
    Contrast Ratio 500 : 1 (Typ.) (Transmissive)
    Display Color 262K (6-bit)
    Color Gamut 45%
    Response Time
    Viewing Angle 45/45/20/45 (Typ.)(CR?10) (L/R/U/D)
    Viewing Direction 6 o'clock
    White color Chromaticity X:0.313 Y:0.329
    White Variation 1.25 (Max.)(5 points)

    N140BGE-E33 14.0" a-Si TFT-LCD Panel for INNOLUX

    INNOLUX N140BGE-E33 Electronics Feature
    Vertical Frequency 60Hz
    Reverse Scan No

    N140BGE-E33 14.0" a-Si TFT-LCD Panel for INNOLUX

    INNOLUX N140BGE-E33 Backlight System
    Lamp Position Edge light type
    Lamp Type WLED
    Lamp Life Time 15K(Min.) (Hours)
    Lamp Driver Board Embedded (LED Driver)
    Lamp Driver Board 6.0/12.0/21.0V (Min./Typ./Max.)
    Interface Type Included in signal interface

    N140BGE-E33 14.0" a-Si TFT-LCD Panel for INNOLUX

    INNOLUX N140BGE-E33 Signal Interface
    Signal Category eDP
    Signal Class CMOS (1 ch, 8-bit)
    Input Voltage for Panel 3.3V (Typ.)
    Interface Type Connector
