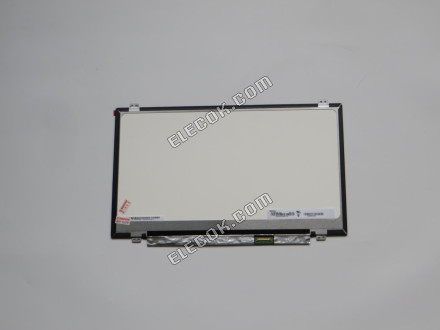

N140HGE-EA1 14.0" a-Si TFT-LCD,Panel for INNOLUX
| Data Sheet | N140HGE-EA1 14.0" a-Si TFT-LCD,Panel for INNOLUX |
| Panel Brand | INNOLUX |
| Panel Model | N140HGE-EA1 |
| Panel Type | a-Si TFT-LCD,Panel |
| Panel Size | 14.0 |
| Resolution | 1920(RGB)×1080 (FHD) |
| Display Mode | TN, Normally White, Transmissive |
| Surface | Antiglare |
| Brightness | 300 cd/m2 (Typ.) |
| Contrast Ratio | 600 : 1 (Typ.) (Transmissive) |
| Display Colors | 262K (6-bit) |
| Response Time | |
| Viewing Angle | |
| Frequency | 60Hz |
| Lamp Type | WLED |
| Signal Interface | eDP (2 Lanes) |
| Input Voltage | |
| RoHS | RoHS Compliance |
| Application | Laptop PC |
| Other Name | NL40HGE-EAL N14OHGE-EA1 |
INNOLUX N140HGE-EA1 Basic Information
| Panel Brand | INNOLUX |
| Panel Model | N140HGE-EA1 |
| Panel Type | a-Si TFT-LCD,Panel |
| Application | Laptop PC |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| RoHS | RoHS Compliance |
| Specific Feature | Antiglare WLED WIDE |
| Remarks | eDP1.2 |
INNOLUX N140HGE-EA1 Mechanical Features
| Panel Size | 14.0" |
| Dot Resolution | 1920(RGB)×1080 (FHD) |
| Aspect Ratio | 16:9 (W:H) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Pitch | 0.161×0.161 mm (W×H) |
| Surface | Antiglare |
| Active Area | 309.14×173.89 mm (W×H) |
| Outline Depth | 3.0 (Max.) mm |
| Touch Panel | Without |
INNOLUX N140HGE-EA1 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 300 cd/m2 (Typ.) |
| Contrast Ratio | 600 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 60% |
INNOLUX N140HGE-EA1 Electronics Feature
| Vertical Frequency | 60Hz |
| Reverse Scan | No |
| Total Power Consumption | 3.9W (Max.) |
INNOLUX N140HGE-EA1 Backlight System
| Lamp Position | Edge light type |
| Lamp Type | WLED |
INNOLUX N140HGE-EA1 Signal Interface
| Signal Category | eDP |
| Signal Class | eDP (2 Lanes) |
| Interface Type | Connector |
