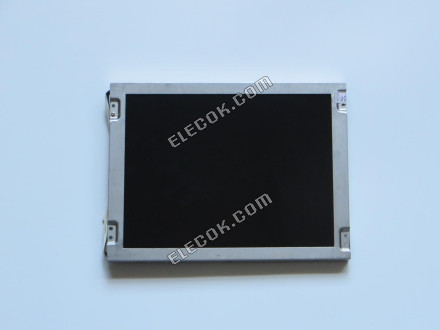

NL10276BC16-01 NEC 8.4" A-si TFT-LCD Panel Used Original

NL10276BC16-01 NEC 8.4" A-si TFT-LCD Panel Used Original

$295.98
    VISA VISA VISA Mastercard Mastercard Mastercard PayPal PayPal PayPal JCB JCB JCB American Express American Express American Express Diners Club Diners Club Diners Club DISCOVER DISCOVER DISCOVER

    NL10276BC16-01 NEC 8.4" A-si TFT-LCD Panel Used Original

    Data Sheet NL10276BC16-01 NEC 8.4" A-si TFT-LCD Panel Used Original
    Panel BrandNEC
    Panel ModelNL10276BC16-01
    Panel Typea-Si TFT-LCDPanel
    Panel Size8.4"
    Resolution1024(RGB)×768 (XGA)
    Display ModeUA-SFT, Normally Black, Transmissive
    SurfaceAntiglare, Hard coating (3H)
    Brightness400 cd/m2 (Typ.)
    Contrast Ratio400 : 1 (Typ.) (Transmissive)
    Display Colors262K/16.7M (6-bit / 6-bit + Hi-FRC)
    Response Time13/12 (Typ.)(Tr/Td) (ms)
    Viewing Angle88/88/88/88 (Typ.)(CR?10) (L/R/U/D)
    Frequency60Hz
    Lamp TypeCCFL
    Signal InterfaceLVDS (1 ch, 6/8-bit)
    Input Voltage3.3V (Typ.)
    Other NameNLL0276BCL6-0L
    N110276BC16-01
    NL1O276BC16-O1
    NL10276BC16-01 NEC 8.4" A-si TFT-LCD Panel Used Original
    NL10276BC16-01 NEC 8.4" A-si TFT-LCD Panel Used Original
    NL10276BC16-01 NEC 8.4" A-si TFT-LCD Panel Used Original
    NEC NL10276BC16-01 Basic Information
    Panel Brand NEC
    Panel Model NL10276BC16-01
    Panel Type a-Si TFT-LCD Panel
    Application Industrial Application
    Operating Temperature 0 ~ 55 °C
    Storage Temperature -20 ~ 60 °C
    RoHS RoHS Compliance
    Specific Feature High Color Gamut Antiglare Sureface 6/8 bit Selectable 180 Reverse Wide Viewing Angle Lamp Repaceable Lamp life &ge 50K hours
    NEC NL10276BC16-01 Mechanical Features
    Panel Size 8.4"
    Dot Resolution 1024(RGB)×768 (XGA)
    Aspect Ratio 4:3 (W:H)
    Pixel Configuration RGB Vertical Stripe
    Pixel Pitch 0.1665×0.1665 mm (W×H)
    Surface Antiglare, Hard coating (3H)
    Active Area 170.496×127.872 mm (W×H)
    Bezel Area 173.6×131.1 mm (W×H)
    Outline Dimension 200.0×152.0 mm (W×H)
    Outline Depth 16.5±0.5 mm
    Holes & Brackets Face mounting holes (4-?3.5) on left bezel, right slugs
    Touch Panel No
    NEC NL10276BC16-01 Optical Features
    Display Mode UA-SFT, Normally Black, Transmissive
    Brightness 400 cd/m2 (Typ.)
    Contrast Ratio 400 : 1 (Typ.) (Transmissive)
    Display Color 262K/16.7M (6-bit / 6-bit + Hi-FRC)
    Color Gamut 72%
    Response Time 20 (Typ.)(Tr)
    Viewing Angle 88/88/88/88 (Typ.)(CR?10) (L/R/U/D)
    Viewing Direction Symmetry
    White color Chromaticity X:0.300 Y:0.315
    White Variation 1.25/1.40 (Typ./Max.)(5 points)
    NEC NL10276BC16-01 Electronics Feature
    Vertical Frequency 60Hz
    Reverse Scan Yes (180°)
    Total Power Consumption 9.8W (Typ.)
    NEC NL10276BC16-01 Backlight System
    Lamp Position Edge light type (Top and Bottom)
    Lamp Type CCFL
    Lamp Amount 4 pcs
    Lamp Shape Straight
    Lamp Life Time 50K(Typ.) (Hours)
    Lamp Replaceable Replaceable
    Lamp RFU Model 84LHS03
    Lamp Voltage No
    Lamp Current 3.0/5.0/5.5mA (Min./Typ./Max.)
    Lamp Operating Frequency 54±5KHz
    Lamp Startup Voltage 875/1140V (Min.)(Ta=+25/0?)
    Lamp Driver Board No
    Interface Type Connector
    Interface Brand JST
    Interface Model BHR-04VS-1
    Interface Pin Pitch 4.0 mm
    Interface Amount 2 pcs
    Interface Pins 4 pins
    Pin Configuration BLL-4PINS-HHNL
    NEC NL10276BC16-01 Signal Interface
    Signal Category LVDS
    Signal Class No
    Pin Configuration LVDS-20P1C8B-180A
    Input Voltage for Panel 3.3V (Typ.)
    Input Current for Panel 300/450mA (Typ./Max.)
    Interface Type Connector
    Interface Brand JAE
    Interface Model FI-SE20P-HF
    Interface Pin Pitch 1.25 mm
    Interface Amount 1 pcs
    Interface Pins 20 pins
    NEC NL10276BC16-01 Specification Source
    File Number DOD-PP-1377
