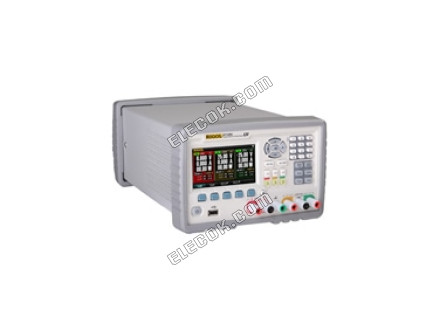

Programmable Linear DC Power Supply,used
DP1308A
Features and Benefits
DP1308A is a high performance 80W triple output programmable linear DC power supply. It has a clear user interface, excellent performance, a variety of standard interfaces to meet diverse test requirements
1 large-screen color TFT LCD
2 separate controllable three-channel output
3 The total output power of 80W
4 low noise, high regulation
5 high-precision, high-resolution
6 with waveform display
7. With overvoltage / overcurrent protection
8 has two over-temperature protection
9 has timer output
10 has a tracking function
11 with the storage system setup parameters and function calls
12 Standard Interface: USB Device, USB Host, LAN, GPIB
13 Support U disk storage
14. Web and remote command and control support
15 in line with LXI-C standard type instruments
|
Model |
DP1308A |
||
|
Channel |
+6V |
+25V |
-25V |
|
Voltage |
0?+6V |
0?+25V |
0?-25V |
|
Current |
0?5A |
0?1A |
0?1A |
|
Overvoltage protection |
0.1V?6.5V |
0.1V?27V |
-0.1V?-27V |
|
Overcurrent protection |
0.1A?5.5A |
0.1A?1.2A |
0.1A?1.2A |
|
Standard Interface |
USB Host & Device, GPIB, LAN(LXI-C Class) |
||
|
Optional Interface |
N/A |
||
|
Product category |
Desktop programmable linear DC power |
||
| Data Sheet | Programmable Linear DC Power Supply DP1308A,used |
