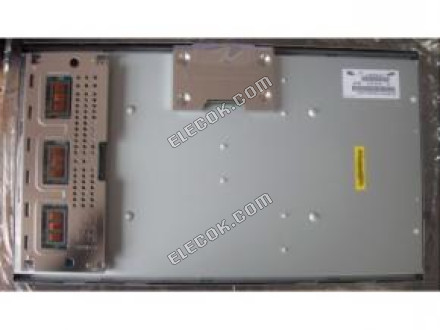

LTA230W2-L01 23.0" a-Si TFT-LCD Panel for SAMSUNG
| Data Sheet | LTA230W2-L01 23.0" a-Si TFT-LCD Panel for |
| Panel Brand | SAMSUNG |
| Panel Model | LTA230W2-L01 |
| Panel Type | a-Si TFT-LCDPanel |
| Panel Size | 23.0" |
| Resolution | 1366(RGB)×768 (WXGA) |
| Display Mode | PVA, Normally Black, Transmissive |
| Surface | Antiglare (Haze 44%), Hard coating (3H) |
| Brightness | 450 cd/m2 (Typ.) |
| Contrast Ratio | 1200 : 1 (Typ.) (Transmissive) |
| Display Colors | 16.7M (8-bit) |
| Response Time | 16/9 (Typ.)(Tr/Td); 8 (Typ.)(G to G) (ms) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR?10) (L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | CCFL |
| Signal Interface | LVDS (1 ch, 8-bit) |
| Input Voltage | 5.0V (Typ.) |
| Other Name | LTA230W2-L0L 1TA230W2-101 LTA23OW2-LO1 |
In the following cases, we will make a free reissue or full refund
Product cannot use in warranty period because of product quality problems
Product is damaged in transit
Product is not delivered in time because of our reason
Process of free reissue or full refund
Buyers send an email to our customer service to describe the problem, and to provide evidence (clear photos, screenshots, or video)
We will check the problem in 1 working days. For eligible cases, we will provide a free replacement or full refund within 1-2 business days
If a return is required, the return shipping fee will be paid by us
Buyers can apply for return or exchange within 90 days of receipt
LTA230W2-L01 23.0" a-Si TFT-LCD Panel for SAMSUNG
| Gross Weight | 7 |
|---|
