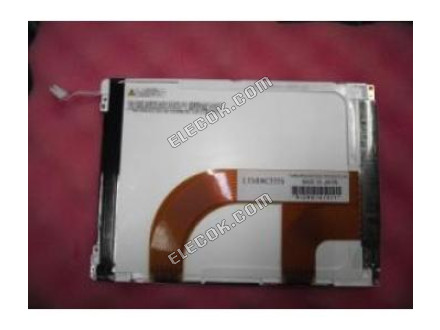

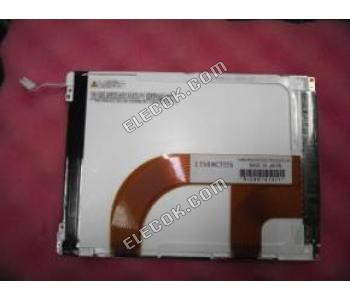

LTM08C355S 8.4" LTPS TFT-LCD Panel for TOSHIBA
| Data Sheet | LTM08C355S 8.4" LTPS TFT-LCD Panel for TOSHIBA |
| Panel Brand | TOSHIBA |
| Panel Model | LTM08C355S |
| Panel Type | LTPS TFT-LCDPanel |
| Panel Size | 8.4" |
| Resolution | 800(RGB)×600 (SVGA) |
| Display Mode | TN, Normally White, Transmissive |
| Surface | |
| Brightness | 120 cd/m2 (Typ.) |
| Contrast Ratio | 250 : 1 (Typ.) (Transmissive) |
| Display Colors | 262K (6-bit) |
| Response Time | 50/50 (Max.)(Tr/Td) (ms) |
| Viewing Angle | |
| Frequency | 60Hz |
| Lamp Type | CCFL |
| Signal Interface | Parallel RGB (1 ch, 6-bit) |
| Input Voltage | 3.3V (Typ.)(VDD) |
| Other Name | 1TM08C355S LTMO8C355S |
