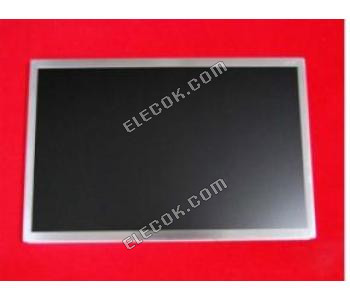

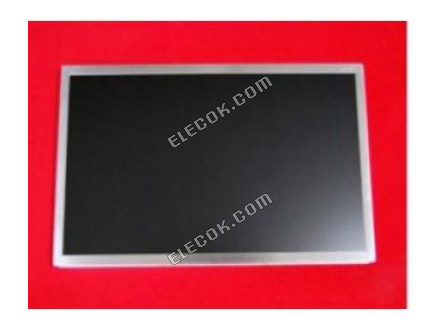

A121EW02 V0 12.1" a-Si TFT-LCD Panel for AUO
| Data Sheet | A121EW02 V0 12.1" a-Si TFT-LCD Panel for AUO |
| Panel Brand | AUO |
| Panel Model | A121EW02 V0 |
| Panel Type | a-Si TFT-LCDPanel |
| Panel Size | 12.1" |
| Resolution | 1280(RGB)×800 (WXGA) |
| Display Mode | TN, Normally White, Transmissive |
| Surface | |
| Brightness | 450 cd/m2 (Typ.) |
| Contrast Ratio | 350 : 1 (Typ.) (Transmissive) |
| Display Colors | 262K (6-bit) |
| Response Time | 12/18 (Typ.)(Tr/Td) (ms) |
| Viewing Angle | 65/65/50/65 (Typ.)(CR?10) (L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | CCFL |
| Signal Interface | LVDS (1 ch, 6-bit) |
| Input Voltage | 3.3V (Typ.) |
| Other Name | AL2LEW02 V0 A121EWO2 VO |
In the following cases, we will make a free reissue or full refund
Product cannot use in warranty period because of product quality problems
Product is damaged in transit
Product is not delivered in time because of our reason
Process of free reissue or full refund
Buyers send an email to our customer service to describe the problem, and to provide evidence (clear photos, screenshots, or video)
We will check the problem in 1 working days. For eligible cases, we will provide a free replacement or full refund within 1-2 business days
If a return is required, the return shipping fee will be paid by us
Buyers can apply for return or exchange within 90 days of receipt
A121EW02 V0 12.1" a-Si TFT-LCD Panel for AUO
| Gross Weight | 2.8 |
|---|
