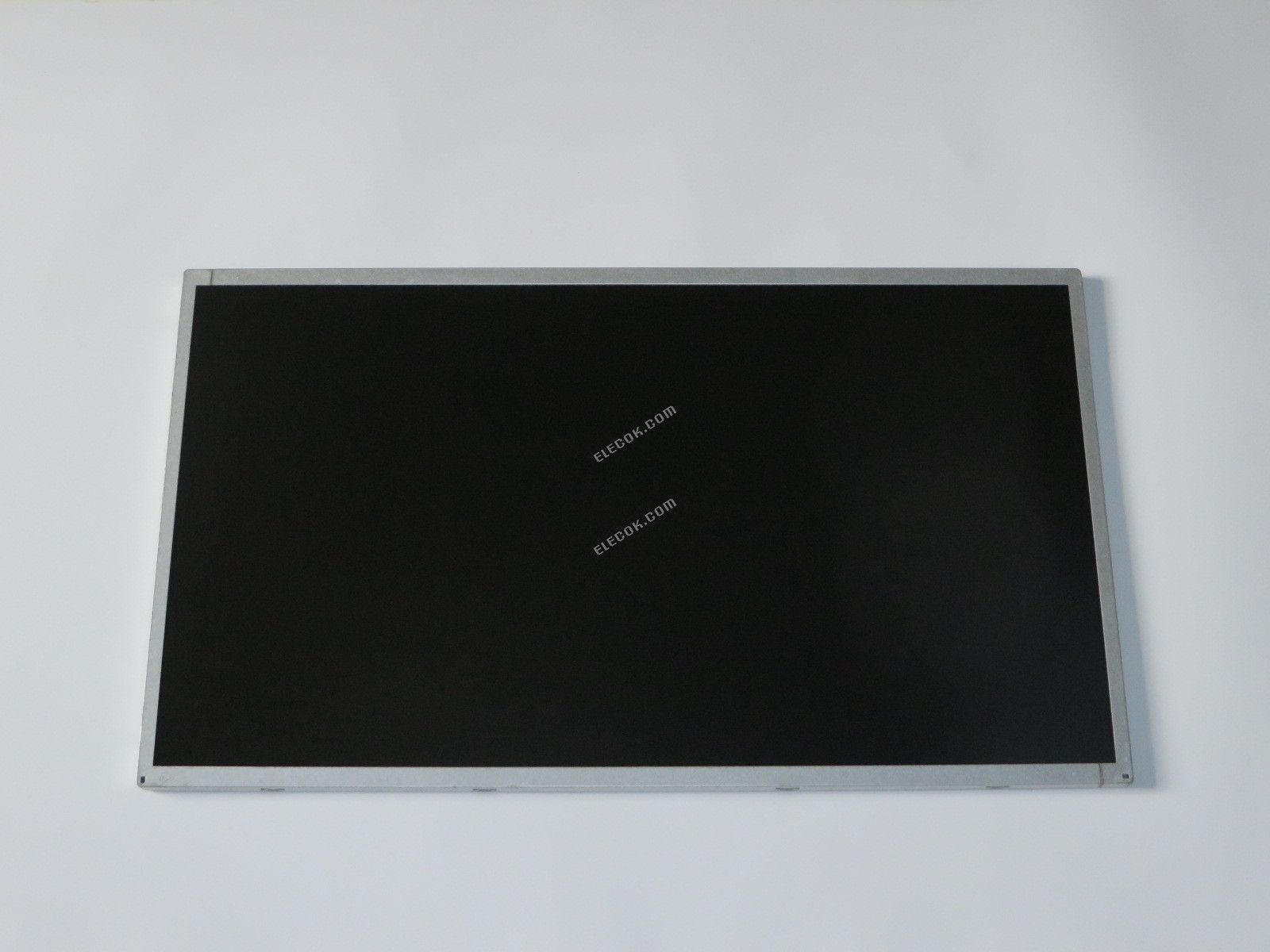

M215HW01 VB AUO 21.5" A-si TFT-LCD Panel

M215HW01 VB AUO 21.5" A-si TFT-LCD Panel

$114.98
    VISA VISA VISA Mastercard Mastercard Mastercard PayPal PayPal PayPal JCB JCB JCB American Express American Express American Express Diners Club Diners Club Diners Club DISCOVER DISCOVER DISCOVER

    M215HW01 VB AUO 21.5" A-si TFT-LCD Panel

    Data Sheet M215HW01 VB AUO 21.5" A-si TFT-LCD Panel
    Panel BrandAUO
    Panel ModelM215HW01 VB
    Panel Typea-Si TFT-LCDPanel
    Panel Size21.5"
    Resolution1920(RGB)×1080 (FHD)
    Display ModeTN, Normally White, Transmissive
    SurfaceAntiglare, Hard coating (3H)
    Brightness250 cd/m2 (Typ.)
    Contrast Ratio1000 : 1 (Typ.) (Transmissive)
    Display Colors16.7M (6-bit + Hi-FRC)
    Response Time3.8/1.2 (Typ.)(Tr/Td) (ms)
    Viewing Angle85/85/80/80 (Typ.)(CR?10) (L/R/U/D)
    Frequency60Hz
    Lamp TypeWLED
    Signal InterfaceLVDS (2 ch, 8-bit)
    Input Voltage5.0V (Typ.)
    Other NameM2L5HW0L VB
    M215HWO1 VB
    M215HW01 VB AUO 21.5" A-si TFT-LCD Panel
    M215HW01 VB AUO 21.5" A-si TFT-LCD Panel
    M215HW01 VB AUO 21.5" A-si TFT-LCD Panel
    AUO M215HW01 VB Basic Information
    Panel Brand AUO
    Panel Model M215HW01 VB
    Model Alias M215HW01 V.B
    Panel Type a-Si TFT-LCD Panel
    Application Desktop Monitor
    Operating Temperature 0 ~ 50 °C
    Storage Temperature -20 ~ 60 °C
    RoHS RoHS Compliance
    Specific Feature Antiglare Sureface Wide Viewing Angle White LED Backlight Wide Aspect Ratio
    Remarks TC0’5.0 Compliance
    AUO M215HW01 VB Mechanical Features
    Panel Size 21.5"
    Dot Resolution 1920(RGB)×1080 (FHD)
    Aspect Ratio 16:9 (W:H)
    Pixel Configuration RGB Vertical Stripe
    Pixel Pitch 0.24825×0.24825 mm (W×H)
    Surface Antiglare, Hard coating (3H)
    Active Area 476.64×268.11 mm (W×H)
    Bezel Area 479.84×271.31 mm (W×H)
    Outline Dimension 495.6×292.2 mm (W×H)
    Outline Depth 10.3 (Typ.) mm
    Holes & Brackets Side mounting holes (8-M3)
    Touch Panel Without
    AUO M215HW01 VB Optical Features
    Display Mode TN, Normally White, Transmissive
    Brightness 250 cd/m2 (Typ.)
    Contrast Ratio 1000 : 1 (Typ.) (Transmissive)
    Display Color 16.7M (6-bit + Hi-FRC)
    Color Gamut 68%
    Response Time 10/15 (Typ.)(Tr/Td)
    Viewing Angle 85/85/80/80 (Typ.)(CR?10) (L/R/U/D)
    Viewing Direction 6 o'clock
    White color Chromaticity X:0.313 Y:0.329
    White Variation 1.25/1.33 (Typ./Max.)(9 points)
    AUO M215HW01 VB Electronics Feature
    Vertical Frequency 60Hz
    Reverse Scan No
    Total Power Consumption 17.6W (Typ.)
    AUO M215HW01 VB Backlight System
    Lamp Position Edge light type (Bottom side)
    Lamp Type WLED
    Lamp Amount 16S4P
    Lamp Shape 4 strings
    Lamp Life Time 30K(Min.) (Hours)
    Lamp Voltage 744/820V (Typ./Max.)
    Lamp Current 60/63mA (Typ./Max.)
    Lamps Power Consumption 12.7/13.8W (Typ./Max.)
    Lamp Driver Board No
    Interface Type Connector
    Interface Brand CviLux
    Interface Model CI1406M1HRB-NH
    Interface Pin Pitch 1.0 mm
    Interface Amount 1 pcs
    Interface Pins 6 pins
    Pin Configuration BLE-6PINS-CCAACC
    AUO M215HW01 VB Signal Interface
    Signal Category Parallel RGB
    Signal Class No
    Pin Configuration LVDS-30P2C8B-160A
    Input Voltage for Panel 5.0V (Typ.)
    Input Current for Panel 0.98/1.22A (Typ./Max.)
    Panel Power Consumption 4.9/6.1W (Typ./Max.)
    Interface Type Connector
    Interface Brand JAE
    Interface Model FI-XB30SRL-HF11
    Interface Pin Pitch 1.0 mm
    Interface Amount 1 pcs
    Interface Pins 30 pins
